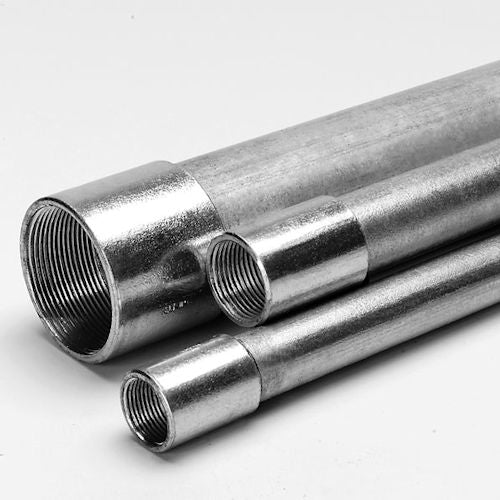

Atkore 034g3/4ingalvconduit 3/4 in Galvanized Rigid Conduit

Product Description

The ATKORE 034g3/4ingalvconduit is a 3/4-inch trade-size galvanized steel rigid metal conduit (RMC) used to route and protect electrical conductors in residential, commercial, and industrial wiring systems. Each stick measures 10 feet in length with a 1.05-inch outer diameter and a 0.107-inch wall thickness. The hot-dip galvanized finish provides corrosion resistance for both indoor and outdoor installations. Licensed electricians install RMC where maximum mechanical protection of conductors is required by code or by the demands of the environment.

This conduit is suited for exposed or concealed installations in wet, damp, or dry locations. Common applications include service entrances, industrial plant wiring, outdoor raceways, and any location where conduit may be subject to physical damage. The 3/4-inch trade size accommodates a standard wire fill per NEC tables. It is typically installed in runs that transition from underground or outdoor environments into panelboards, disconnects, or junction boxes.

Key Features

• Galvanized steel construction provides corrosion resistance for wet and outdoor locations
• 0.107-inch wall thickness meets rigid metal conduit mechanical protection requirements
• 1.05-inch outer diameter conforms to standard 3/4-inch trade-size fittings and couplings
• 10-foot stick length simplifies layout and reduces the number of couplings in straight runs
• Compatible with standard threaded RMC fittings, couplings, and conduit bodies

Compatibility

Designed as an OEM-style replacement and standard-install option for 3/4-inch trade-size rigid metal conduit systems using threaded steel fittings and couplings.

Installation Notes

Rigid metal conduit is installed by licensed electricians in accordance with NEC Article 344. De-energize all circuits in the work area before pulling conductors. Field threading must be done with a proper RMC die set; cut ends should be reamed to remove burrs before conductor installation. Support spacing and conduit fill must comply with applicable NEC requirements for the wire gauge and conductor count being installed.

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Trade Size: 3/4 inch
• Outer Diameter: 1.05 inches
• Wall Thickness: 0.107 inches
• Length: 10 feet
• Weight: 109 pounds per 100 feet

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: 034g3/4ingalvconduit
