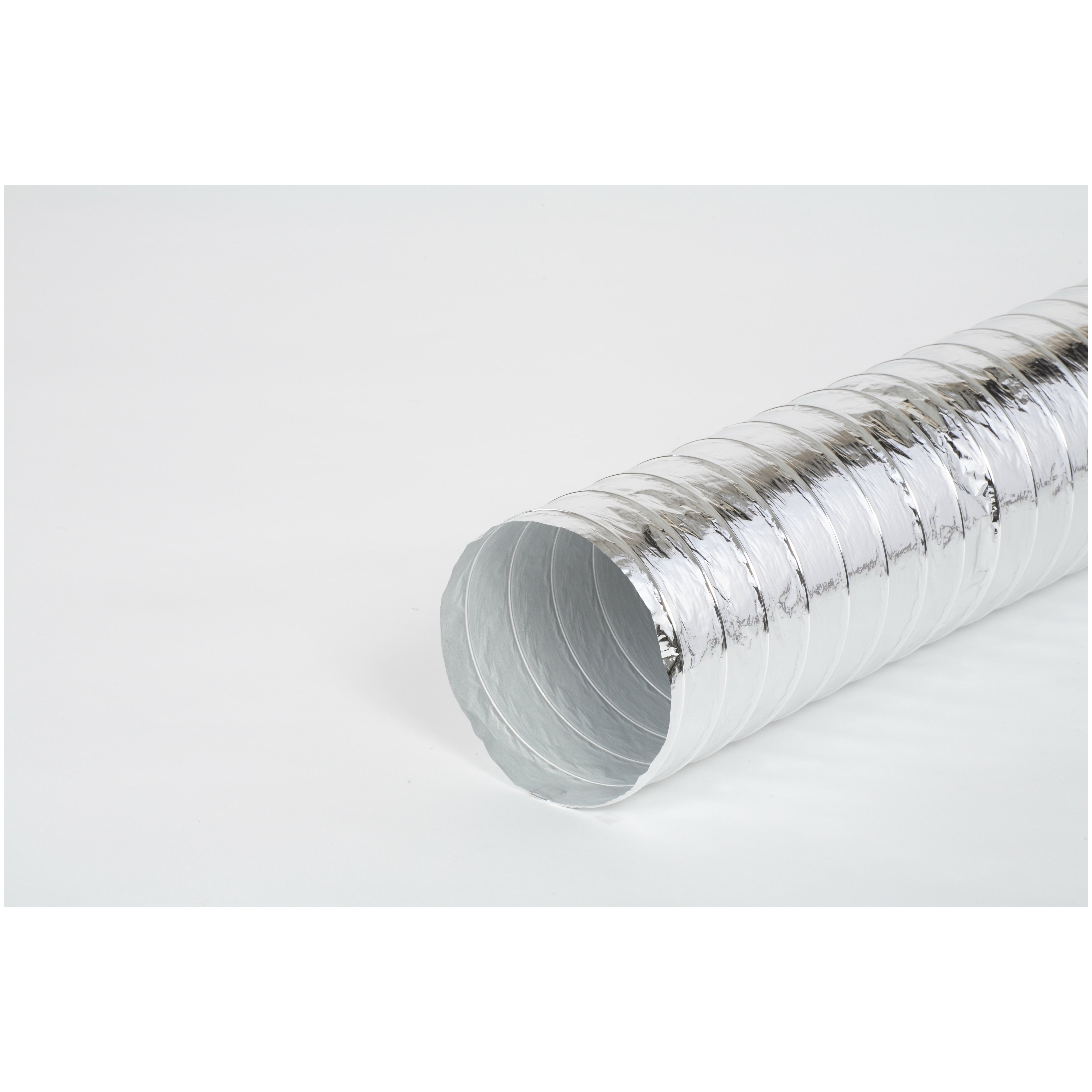

Atco Rubber Products 5102507 Atco 050 Triple-Ply Flexible Uninsulated Air Connector 7 in ID, 25 ft L, 5000 fpm

Product Description

The ATCO RUBBER PRODUCTS 5102507 Atco 050 is a triple-ply flexible uninsulated air connector with a 7 in inside diameter and 25 ft length, designed to handle a flow rate of 5000 fpm. Constructed from durable metallized polyester, aluminum foil, and polyester laminate, it ensures tear and puncture resistance. This air connector is suitable for various applications and complies with UL 181 Class 1, NFPA 90A and 90B, SBCC, and BOCA standards.

• Durable metallized polyester, aluminum foil and polyester laminate construction
• Flexible and maintains shape for easy handling and installation
• Air-tight for energy efficiency

Product Highlights

The Atco 050 air connector features a smooth inner core for low friction loss and an encapsulated wire helix to prevent unraveling. It is lightweight and comes in a compact carton for reduced handling costs.

Product Information

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 5102507
• Country of Origin: US

Technical Specifications

• Country of Origin: US
• Domestic/Import: Domestic
• Flow Rate: 5000 fpm
• Inside Diameter: 7 in
• Length: 25 ft
• Material: Metallized Polyester/Aluminum Foil/Polyester Laminate
• Mfg Standards/Approvals: UL 181 Class 1, NFPA 90A and 90B, SBCC, BOCA
• Pack Quantity: 1 ct
• Pressure Rating: 10 in WG
• Series: 50
• Temperature Rating: -20 to 180 deg F Operating
• Type: Triple-Ply Flexible
• Flame Spread: Less than 25
• Smoke Developed: Less than 50
