ATCO RUBBER PRODUCTS 17602408 8X25 R6 FLEX DUCT

Product Description

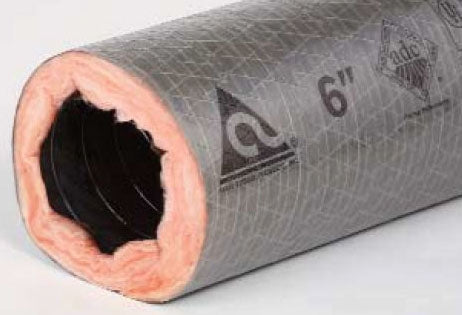

ATCO RUBBER PRODUCTS introduces the 17602408 8X25 R6 Flex Duct. This product is designed for high air velocity applications and offers effective insulation. The duct is constructed with R6 thick blanket fiberglass insulation and features a gray scrim reinforced polyester jacket.

• Length: Twenty-five feet
• Diameter: Eight inches
• Air Velocity: Five thousand feet per minute

Product Highlights

This duct is suitable for various HVAC applications, providing durable performance and reliable insulation.

Product Information

Standard Information

• Manufacturer: ATCO RUBBER PRODUCTS INC
• Min Order Quantity: One

Technical Specifications

• Air Velocity: 5000 FPM
• Applicable Standard: ASTM C518, NFPA 90A/90B, ADC, IMC, IRC, UMC 10-1, HUD, UL 18
• Burning Character: Class 1
• Maximum Flame Speed: 25
• Maximum Smoke Developed: 50
• Core Material: Double Lamination Tough Polyester with Steel Wire Helix
• Insulation Type: R6 Thick Blanket Fiberglass
• Jacket Material: Gray Scrim Reinforced Polyester
• Rated Negative Pressure: 3/4 Inch WG (Maximum)
• Rated Positive Pressure: 10 Inch WG Positive per UL 181 (Rated), 6 Inch WG (Maximum)
• Temperature Rating: -20 to 140 Deg F (Continuous Maximum Pressure), -20 to 180 D
• Class: 1, Plain End
