ATCO RUBBER PRODUCTS 13602418 Insulated Flexible Air Duct 18 in x 25 ft

Product Description

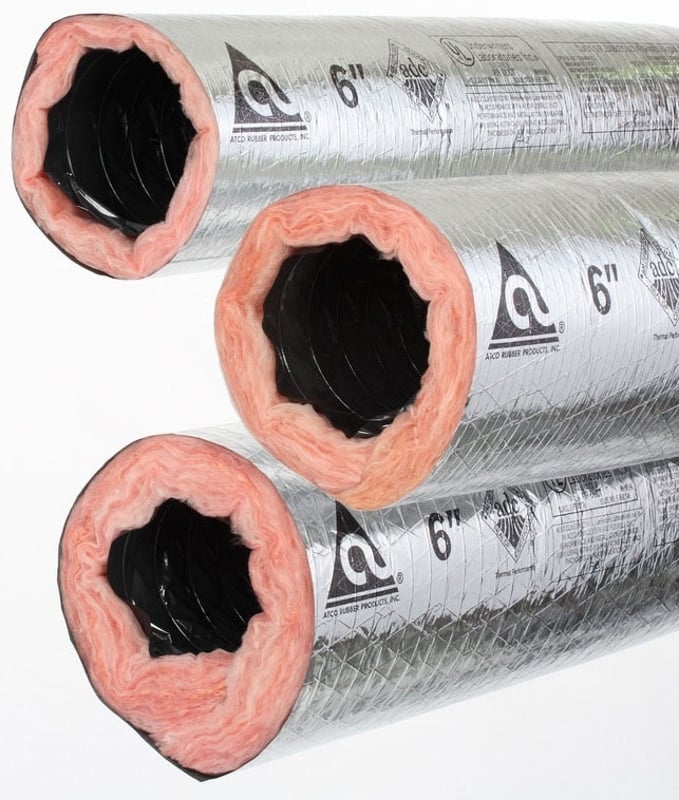

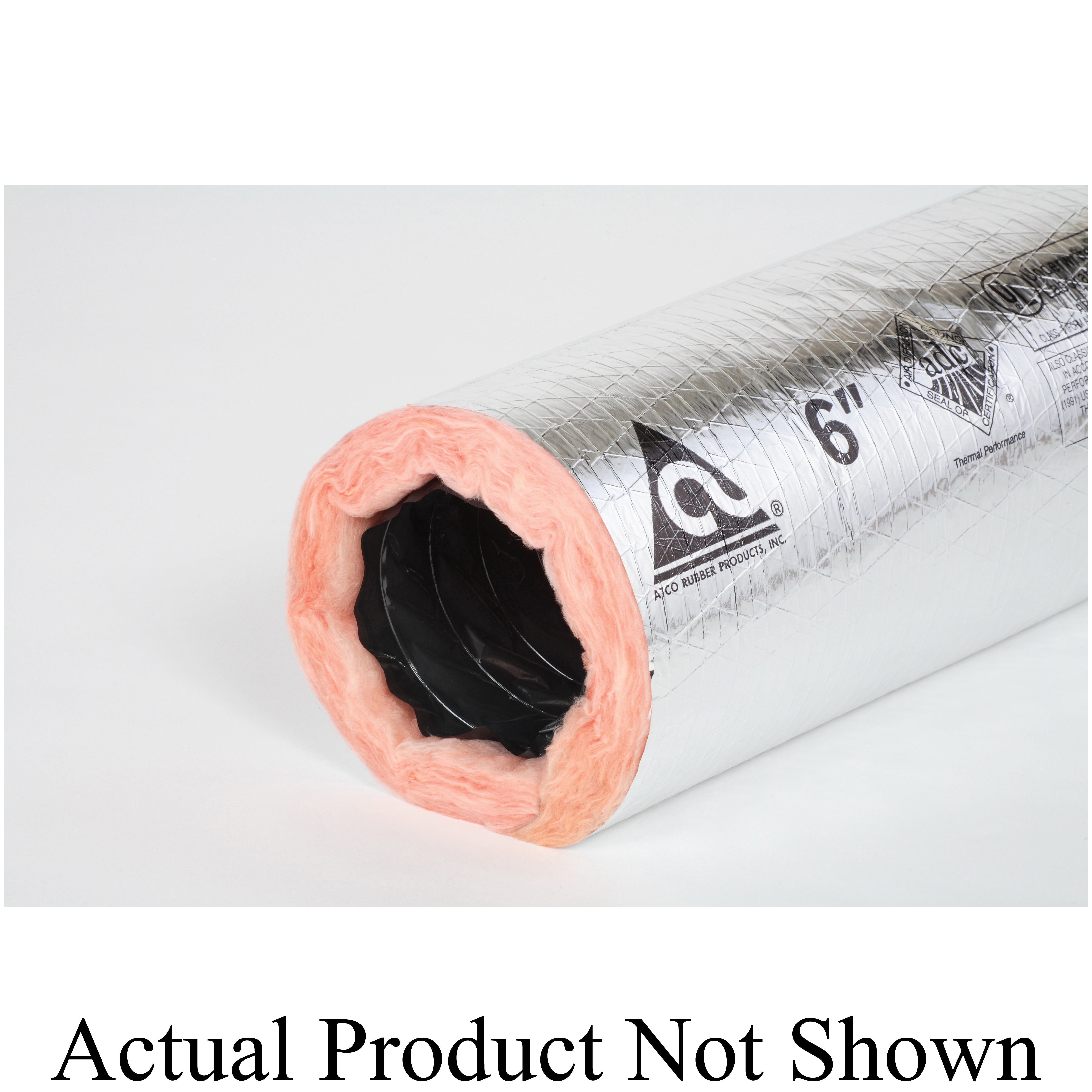

The ATCO RUBBER PRODUCTS 13602418 is an insulated flexible air duct designed for HVAC systems. It has an inside diameter of eighteen inches and a length of twenty-five feet. This duct is made from polyester, fiberglass, and metalized polyester materials. It features R6 insulation for efficient thermal management.

• Inside diameter measures eighteen inches
• Length spans twenty-five feet
• R6 insulation provides effective thermal control

Product Highlights

This air duct is suitable for low-to-medium pressure HVAC systems and can handle a flow rate of up to five thousand feet per minute. The product holds a UL 181 Class 1 certification.

Product Information

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• MPN: 13602418

Technical Specifications

• Type: Insulated Flexible Duct
• Series: 036 Series
• Inside Diameter: 18 inches
• Length: 25 feet
• Flow Rate: 5000 feet per minute
• Insulation Value: R6
• Material: Polyester/Fiberglass/Metalized Polyester
• Pressure Rating: -3/4 to 4 in-WG
• Temperature Rating: -20 to 140 degrees F
• Vapor Transmission: 0.05 perm
• UL Listed: UL 181 Class 1
• Shape: Round
• R-Value: R-6.0
