Atco Rubber Products 13102412 Flexible Air Duct 25 ft R8

Product Description

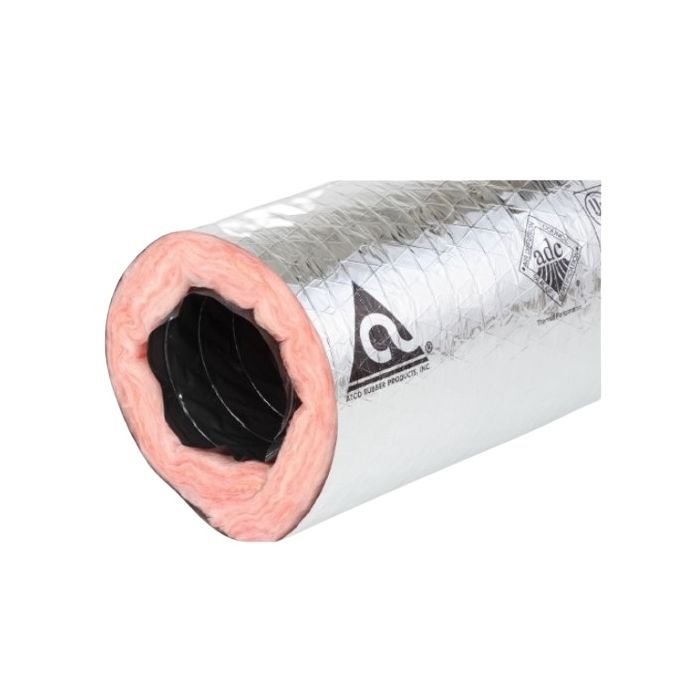

The ATCO RUBBER PRODUCTS 13102412 is a flexible air duct measuring 12 inches by 25 feet with an R8 insulation rating. It features an encapsulated wire helix that prevents unraveling when cut, facilitating quick installation. The smooth inner core ensures low friction loss and operating costs, while the airtight construction enhances energy efficiency.

• Encapsulated wire helix prevents unraveling when cut.
• Smooth inner core minimizes friction loss.
• Airtight inner core ensures energy efficiency.

Product Highlights

This flexible air duct is energy efficient and ensures easy installation. Its airtight inner core prevents fiberglass erosion into the air stream.

Product Information

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 13102412

Technical Specifications

• MPN: 13102412
• Manufacturer Part Number: 13102412
• UPC / GTIN: 671094363557
• Manufacturer: Atco Rubber
• ASTM: ASTM C518
• Diameter: 12 in
• Length: 25 ft
• Insulated: Yes
• Material: Fiberglass, Plastic, Steel
• R value: R8
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
• Size: 12 in
• Core Material: Polyester
• Flame / Smoke Rating: 25/50
• Inside Diameter: 12 in
• Jacket Material: Metallized Polyester
• Maximum Air Velocity: 5,000 FPM
• Maximum Working Pressure: 6 in w.c.
• Operating Temperature Rating: -20-140 F
• Package Quantity: 1
• Product Type: Insulated Flexible Duct
