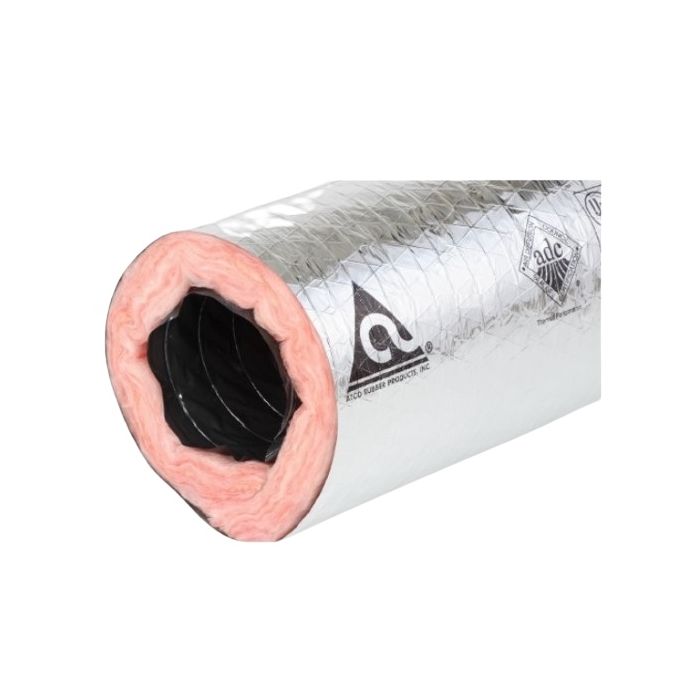

Atco Rubber Products 13102405 Flexible Air Duct 5 in. x 25 ft. R8

Product Description

The ATCO RUBBER PRODUCTS 13102405 flexible air duct features an encapsulated wire helix that prevents unraveling when cut. It has a smooth, air-tight inner core that ensures low friction loss and energy efficiency. A thick blanket of fiberglass insulation provides excellent thermal characteristics. This duct is suitable for various ventilation applications.

• Encapsulated wire helix prevents unraveling when cut to length for quick installation.
• Smooth inner core ensures low friction loss and low operating cost.
• Air-tight inner core provides energy efficiency and prevents fiberglass erosion into the air stream.

Product Highlights

Flexible air duct with encapsulated wire helix, smooth inner core, and fiberglass insulation for efficient and reliable ventilation.

Product Information

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 13102405

Technical Specifications

• Diameter: 5 in
• Length: 25 ft
• R value: R8
• Insulated: Yes
• Material: Fiberglass, Plastic, Steel
• Maximum Airflow: 5000
• ASTM: ASTM C518
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
• Core Material: Polyester
• Flame / Smoke Rating: 25/50
• Jacket Material: Metallized Polyester
• Maximum Air Velocity: 5,000 FPM
• Maximum Working Pressure: 6 in w.c.
• Operating Temperature Rating: -20-140 F
• Package Quantity: 1
• Product Type: Insulated Flexible Duct
• Shape: Round
