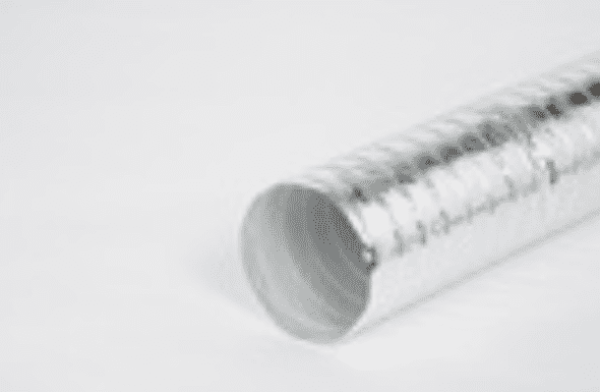

Atco Rubber Products 05502510 10 Inches X 25 Feet Uninsulated Metal Foil Flex Connector

Product Description

The Atco Rubber Products 05502510 is a UL 181 Class 1 air connector designed for optimal performance in HVAC systems. This duct connector measures ten inches in diameter and twenty-five feet in length, making it suitable for various ducting applications. It features a double-ply wall made of metalized polyester that is highly durable and can easily be cut to desired lengths.

• Constructed from tear and puncture-resistant materials.
• Airtight design enhances energy efficiency and maintains air quality.
• Includes an encapsulated wire helix for easy installation.

Product Highlights

This flex connector is ideal for low to medium operating pressures. Its smooth inner core minimizes friction loss, ensuring efficient airflow.

Product Information

Standard Information

• Manufacturer: Atco Rubber Products
• Manufacturer Part Number: 05502510

Technical Specifications

• Length: 25 feet
• Diameter: 10 inches
• End Treatment: Plain ends
• Maximum Velocity: 2000 FPM
• Operating Temperature Range: -20°F to 180°F
• Flame Spread: Less than 25
• Smoke Developed: Less than 50
• Rated Positive Pressure: 10 inches w.g.
