Atco Rubber Products 010-R8_14X5FT R8 Pipe Insulation Sleeve

Product Description

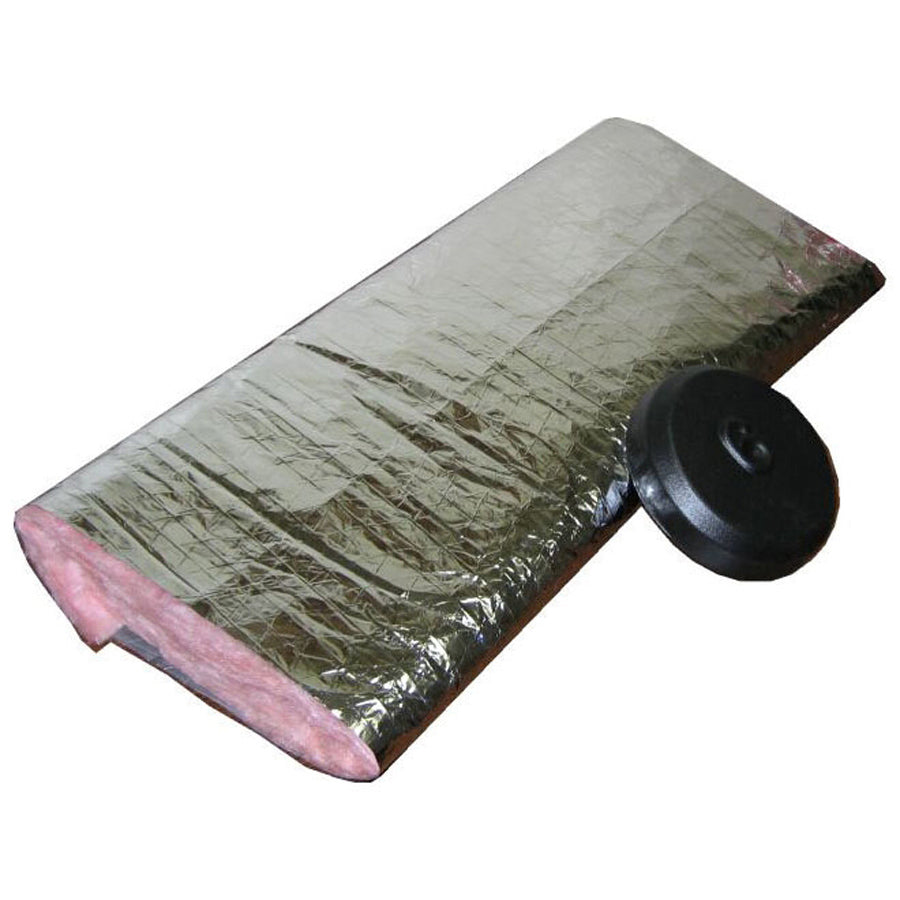

The ATCO RUBBER PRODUCTS 010-R8_14X5FT is a flat-style fiberglass pipe insulation sleeve designed for indoor HVAC applications. It combines a thick fiberglass insulation blanket core with a reinforced metalized polyester vapor barrier jacket to deliver R8 thermal performance on 14-inch pipe. Each section ships in a 5-foot length, eliminating the need for in-shop or jobsite cutting and reducing labor time compared to conventional duct wrap installation. Licensed HVAC technicians and insulation contractors are the primary installers. The sleeve is rated for operating temperatures from -20 degrees F to 250 degrees F and meets UL 181B requirements.

This insulation sleeve is suited for residential and commercial indoor HVAC systems where large-diameter pipe runs require efficient thermal protection and moisture control. The pre-cut 5-foot sections are particularly useful on mechanical room headers, main supply or return trunk lines, and other straight runs on 14-inch pipe. The included starter cap supports a clean, code-consistent termination at duct or pipe ends. No field sizing of the blanket material is required, which streamlines installation on busy jobsites.

Key Features

• R8 fiberglass insulation blanket core for high thermal efficiency on large-diameter pipe
• Reinforced metalized polyester vapor barrier jacket controls moisture infiltration
• Pre-cut 5-foot flat sections eliminate in-shop and jobsite cutting
• Starter cap included for clean end termination
• Rated from -20 degrees F to 250 degrees F for broad HVAC temperature range coverage
• UL 181B listed for indoor HVAC system use

Compatibility

Designed for use on 14-inch indoor HVAC pipe and duct runs where R8 insulation with a vapor barrier jacket is specified. Suitable for flat-wrap installation on straight pipe sections in mechanical systems meeting UL 181B applicable standards.

Installation Notes

Installation is typically performed by licensed HVAC technicians or certified insulation contractors. Shut down and de-energize the HVAC system before beginning any insulation work on active pipe runs. Secure all seams and longitudinal joints with UL 181B-rated tape or closure system per the applicable mechanical code. Follow local jurisdiction requirements and SMACNA guidelines for insulation continuity and vapor barrier integrity.

Technical Specifications

• Insulation Material: Fiberglass blanket
• Jacket Material: Reinforced metalized polyester vapor barrier
• R-Value: R8
• Pipe Size: 14 inches
• Section Length: 5 feet
• Type: Flat blanket sleeve
• Maximum Temperature Rating: 250 degrees F
• Minimum Temperature Rating: -20 degrees F
• Application: Indoor HVAC system
• Applicable Standard: UL 181B
• Inclusions: Starter cap

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R8_14X5FT
