Atco Rubber Products 010-R6_9IN Pipe Insulation Sleeve R6 9in

Product Description

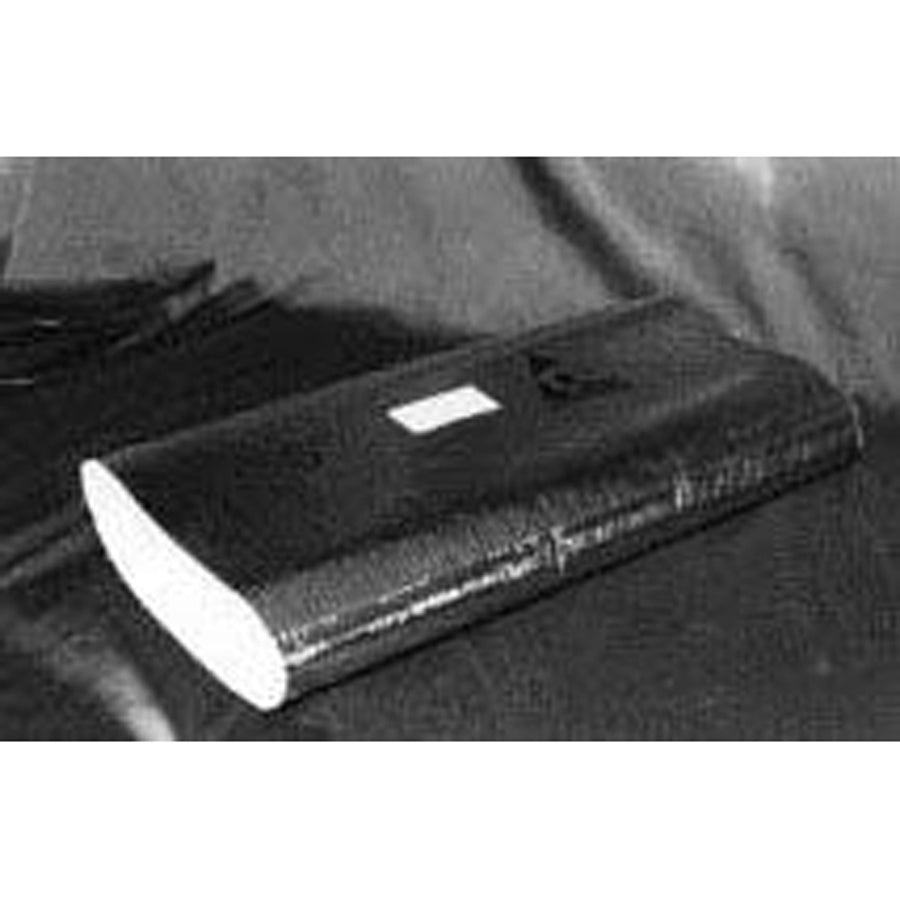

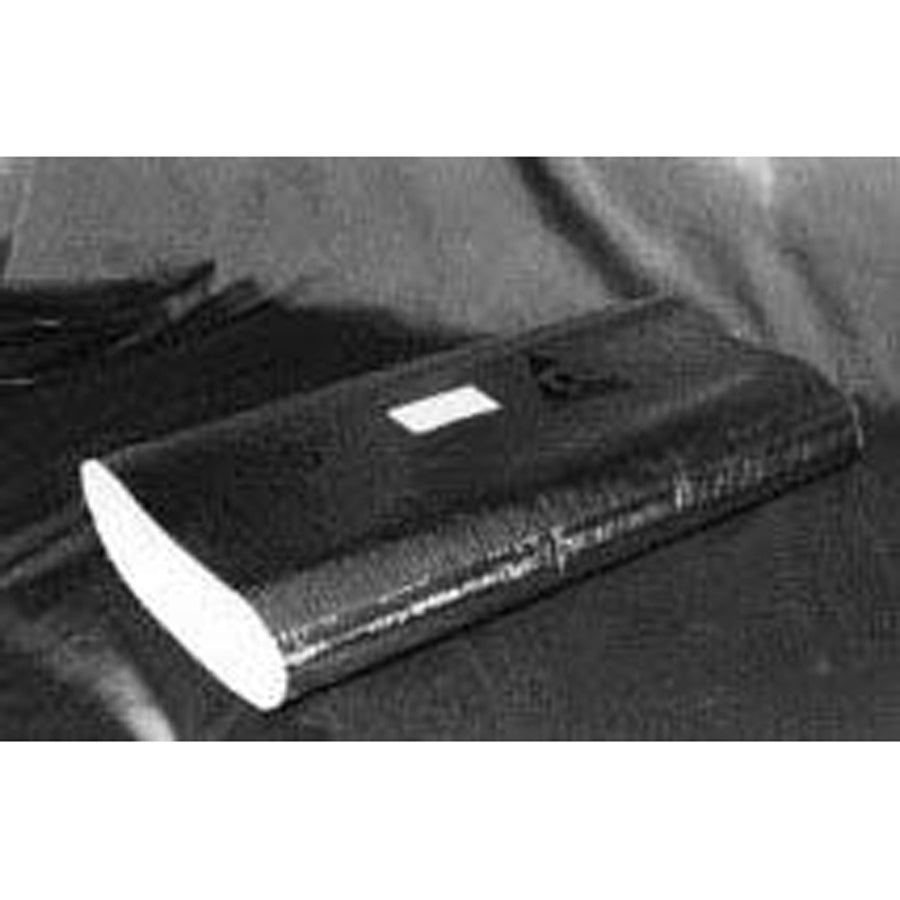

The ATCO RUBBER PRODUCTS 010-R6_9IN is a fiberglass pipe insulation sleeve designed to thermally insulate large-diameter HVAC piping and ductwork. It ships in 5-foot sections with an R-6 thermal resistance value and features a reinforced metallized polyester vapor barrier jacket that limits moisture intrusion and condensation. The thick fiberglass blanket construction delivers efficient thermal performance across a wide range of operating conditions. Each section measures 9 inches in diameter and 5 feet in length, making it suited for larger supply and return air pipes, round duct runs, and mechanical room piping where pre-cut lengths reduce field fabrication time.

This insulation sleeve is used in residential and light commercial HVAC installations where round duct or piping requires thermal and vapor protection. The pre-cut 5-foot section format eliminates in-shop and job-site cutting, reducing labor time compared to field-cut duct wrap. It is appropriate for use on HVAC system piping where a UL-listed, reinforced vapor barrier jacket is specified. The metallized polyester jacket also provides a clean, reflective finish suitable for exposed mechanical applications.

Key Features

• R-6 thermal resistance rating for effective heat loss and gain control
• Reinforced metallized polyester vapor barrier jacket resists moisture and condensation
• Pre-cut 5-foot sections reduce in-shop and on-site cutting time
• 9-inch diameter fits larger HVAC round duct and piping
• Fiberglass blanket construction provides durable, long-term insulation performance
• UL-listed to applicable standards

Compatibility

Designed for use on HVAC system piping and round ductwork requiring thermal insulation and vapor barrier protection, specifically in applications calling for a 9-inch diameter sleeve with an R-6 insulation value.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal contractors. Power down the associated HVAC system before working on connected ductwork or piping. Secure sleeve joints and seams with approved foil tape or mechanical fasteners per local mechanical code requirements. Avoid compressing the fiberglass insulation layer, as compression reduces the effective R-value.

Technical Specifications

• Insulation Material: Fiberglass
• Jacket Material: Reinforced Metallized Polyester
• Thermal Resistance: R-6
• Diameter: 9 inches
• Length: 5 feet per section
• Type: Blanket Insulated Sleeve
• Application: HVAC System Piping and Ductwork
• Applicable Standard: UL

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R6_9IN
