Atco Rubber Products 010-R6_4X5FT R6 Pipe Insulation Sleeve 4x5ft

Product Description

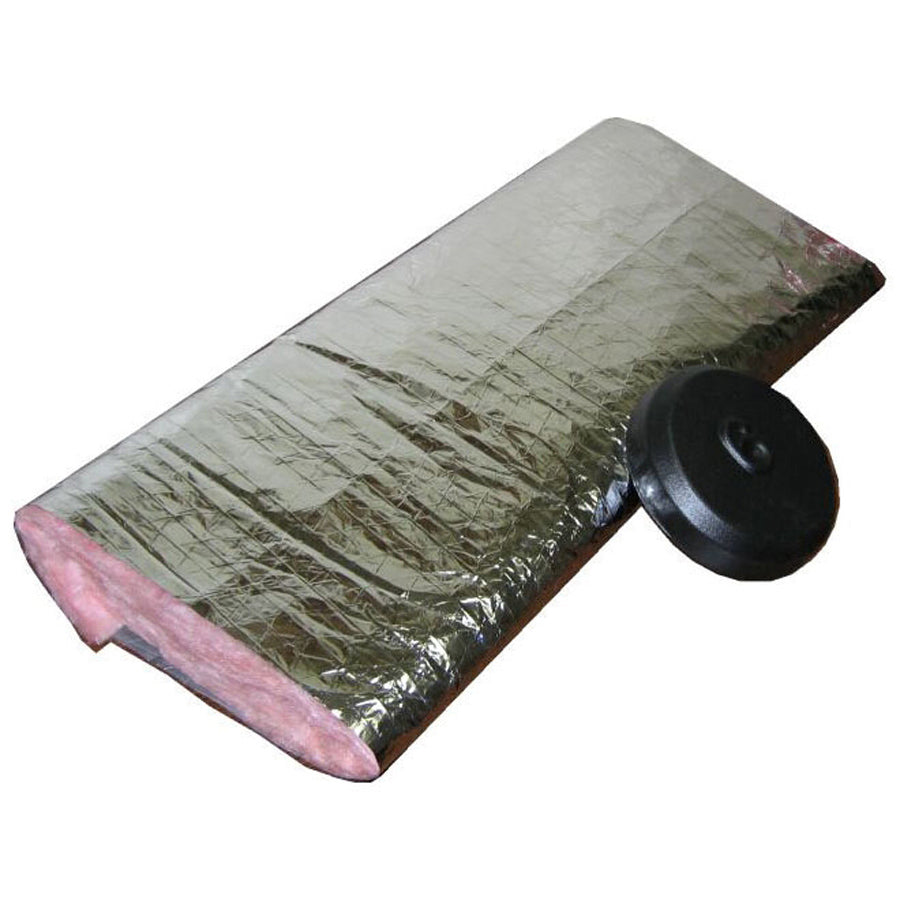

The ATCO RUBBER PRODUCTS 010-R6_4X5FT is a flat fiberglass pipe insulation sleeve designed for indoor HVAC applications. It provides R6 thermal resistance using a thick fiberglass insulation blanket wrapped in a reinforced metalized polyester vapor barrier jacket. The sleeve ships in 5-foot sections, eliminating the need for cutting at the shop or on the jobsite. Rated for temperatures from -20 degrees F to 250 degrees F, it is suitable for a wide range of HVAC piping conditions. Licensed HVAC technicians and pipe insulators are the primary installers. A starter cap is included with each section.

This sleeve is intended for indoor HVAC system piping where thermal efficiency and vapor control are required. The flat, blanket-style form factor wraps directly onto pipe, making it faster to apply than duct wrap in comparable scenarios. The 4-inch pipe size and 5-foot section length make it a practical choice for residential and light commercial mechanical rooms, equipment rooms, and exposed piping runs where condensation control and energy retention are priorities.

Key Features

• R6 thermal resistance rating for high-efficiency insulation performance
• Thick fiberglass insulation blanket construction
• Reinforced metalized polyester vapor barrier jacket controls moisture
• Pre-cut 5-foot sections reduce jobsite and in-shop cutting time
• Flat, blanket-style form installs faster than standard duct wrap
• Starter cap included for complete end coverage
• UL 181B listed

Compatibility

Designed as an OEM-style replacement and standard-fit insulation sleeve for 4-inch indoor HVAC system piping requiring R6 insulation and a vapor barrier jacket.

Installation Notes

Installation is typically performed by licensed HVAC technicians or journeyman pipefitters. Shut down the HVAC system and allow all piping to reach ambient temperature before applying insulation. Secure all seams and joints per UL 181B application requirements and local mechanical code. Do not compress the fiberglass blanket during installation, as compression reduces effective R-value.

Technical Specifications

• R-Value: R6
• Pipe Size: 4 inches
• Section Length: 5 feet
• Type: Blanket, Flat
• Insulation Material: Fiberglass
• Jacket Material: Reinforced Metalized Polyester
• Maximum Temperature Rating: 250 degrees F
• Minimum Temperature Rating: -20 degrees F
• Application: Indoor, HVAC System
• Inclusions: Starter Cap
• Applicable Standard: UL 181B

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R6_4X5FT
