ATCO RUBBER PRODUCTS Atco Rubber 05102505 50 Series 5 in x 25 ft Uninsulated Flexible Air Duct
ATCO RUBBER PRODUCTS Atco Rubber 05102505 50 Series 5 in x 25 ft Uninsulated Flexible Air Duct

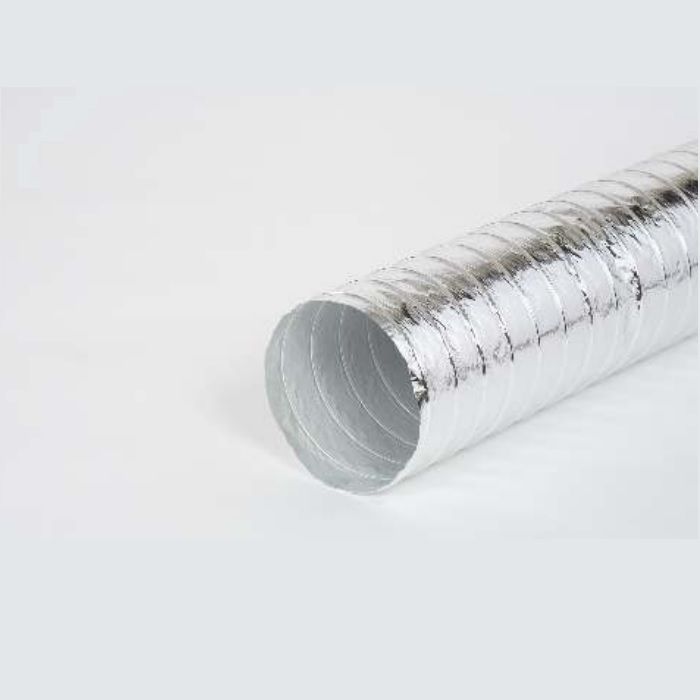

Atco Rubber 05102505 50 Series 5 in x 25 ft Uninsulated Flexible Air Duct

Brand: ATCO RUBBER PRODUCTS
SKU: 05102505
Availability: In Stock

Ships same day if ordered by 12 pm
$61.16
$61.16
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Atco Rubber 05102505 is an uninsulated flexible air duct, 5 in diameter by 25 ft, intended for supply, return, exhaust and general HVAC connections. It uses a triple-lamination construction of aluminum foil, metallized polyester and polyester laminate with an encapsulated wire helix and smooth inner core for low friction loss. Rated for 5000 fpm, temperature range -20 to 180 deg F, plain ends, and air-tight performance.

  • Triple-lamination construction (aluminum foil / metallized polyester / polyester laminate) with encapsulated wire helix to prevent unraveling
  • Smooth inner core for low friction loss and air-tight performance; rated flow 5000 fpm
  • Temperature rating -20 to 180 deg F; maximum positive pressure 6 in WG; maximum negative pressure 3/4 in WG; plain ends

Product Highlights

Uninsulated 5 in x 25 ft flexible air connector; triple-lamination construction; rated 5000 fpm and -20 to 180°F; plain ends; encapsulated wire helix

Product Information

Standard Information

  • Brand: ATCO RUBBER PRODUCTS
  • Manufacturer Part Number: 05102505
  • Country of Origin: Domestic (USA)
Technical Specifications
Brand
ATCO Rubber Products
Manufacturer
Atco Rubber Products
Manufacturer Part Number
05102505
Series
50 Series
Diameter
5 in
Length
25 ft
Material / Construction
Aluminum foil / Metallized polyester / Polyester laminate (triple lamination)
Core Construction
Encapsulated steel wire helix with smooth inner core
Type
Uninsulated, Class 1, Plain end
Flow Rate
5000 fpm
Temperature Rating
-20 to 180 deg F (continuous)
Maximum Positive Pressure
6 in WG
Maximum Negative Pressure
3/4 in WG
End Treatment
Plain ends
Flame Spread
Less than 25
Smoke Developed
Less than 50
Vapor Transmission Rate
0.05 perm
Weight
0.99 lb
UPC / GTIN
671094149670
Certifications / Standards
Tested/listed to UL Environment Standard UL 2824; tested/certified to UL Environment Standard UL 2818; meets UL 181, NFPA 90A/90B, IMC, ICC ES PMG, IRC, UMC, HUD (as reported)
Applications
Air distribution systems, connecting ducts, mixing boxes, diffusers, light troffers, room inlets, low to medium operating pressure HVAC applications
