ATCO PRODUCTS 5502508, 500 Series 8 x 25' Uninsulated Air Connector

Product Description

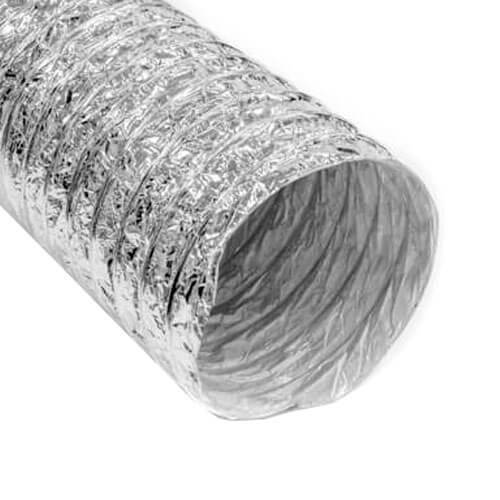

The ATCO PRODUCTS 5502508 is an uninsulated air connector that measures eight inches by twenty-five feet. This product belongs to the 500 Series and is designed for HVAC systems, operating under low to medium pressures. It features a construction made from double-ply metallized polyester film and includes a steel wire helix for added durability.

• UL 181 Class 1 compliance ensures safety and reliability.
• Can be easily cut to desired lengths for installation.
• Provides an air-tight seal to minimize leaks and improve efficiency.

Product Highlights

This connector is suitable for a variety of HVAC applications due to its robust construction and air-tight properties.

Product Information

Standard Information

• Brand: ATCO
• UPC: 671094151109

Technical Specifications

• Core Type: Multi-Ply Metalized/Polyester
• Composition: Polyester/Wire Helix Core
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Flex Length: 25 feet
• Inside Diameter: 8 inches
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 10 W.G.
• Maximum Temperature: 180°F (82.22°C)
• Operating Temperature: -20°F to 180°F (-28.8°C to 82.2°C)
• Pressure Rating: 6 w.g. - 4 thru 12 Dia., 4 w.g. - 14 thru 20 Dia.
• Vapor Transmission: 0.05 Perms
• Approvals: UL Listed
• Tier: Ultra-Flex
