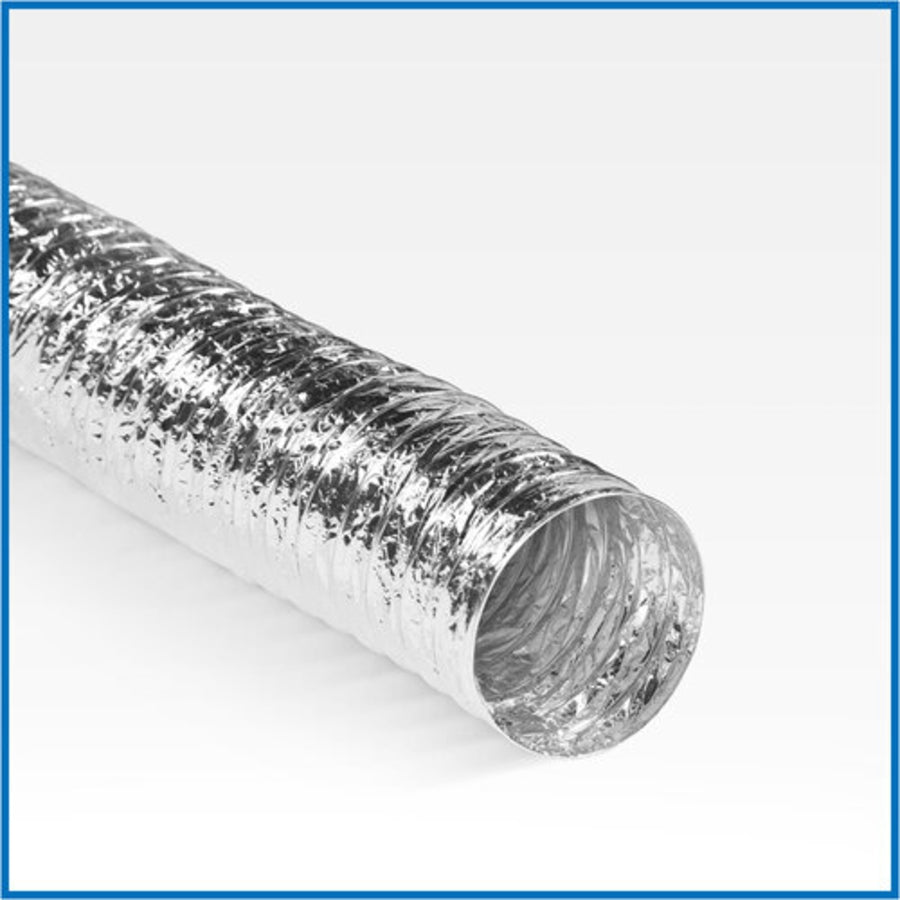

ATCO PRODUCTS 5502503 3 x 25' Model 500 Silver Air Connector

Product Description

The ATCO PRODUCTS 5502503 is a Model 500 air connector designed for HVAC systems. This connector features a double-ply metallized polyester film and a steel wire helix for enhanced durability. It is suitable for low to medium operating pressures and is UL 181 Class 1 certified. With a length of twenty-five feet, this connector can be easily cut to meet specific needs during installation. It complies with NFPA standards (90A & 90B).

• Durable metallized polyester construction.
• Tear and puncture resistant.
• Flexible while maintaining shape.

Product Highlights

This air connector is ideal for efficient airflow in various HVAC applications.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 5502503

Technical Specifications

• Length: twenty-five feet
• Diameter: three inches
• Core Type: Multi-Ply Metalized/Polyester
• Insulation: No Insulation
• Flex Type: Uninsulated
• Maximum Temperature: 180 °F
• Operating Temperature: -20 °F to 180 °F
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 10 W.G.
• Vapor Transmission: 0.05 Perms
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
