ATCO PRODUCTS 17802516 Insulated Flexible Duct 25 ft Length

Product Description

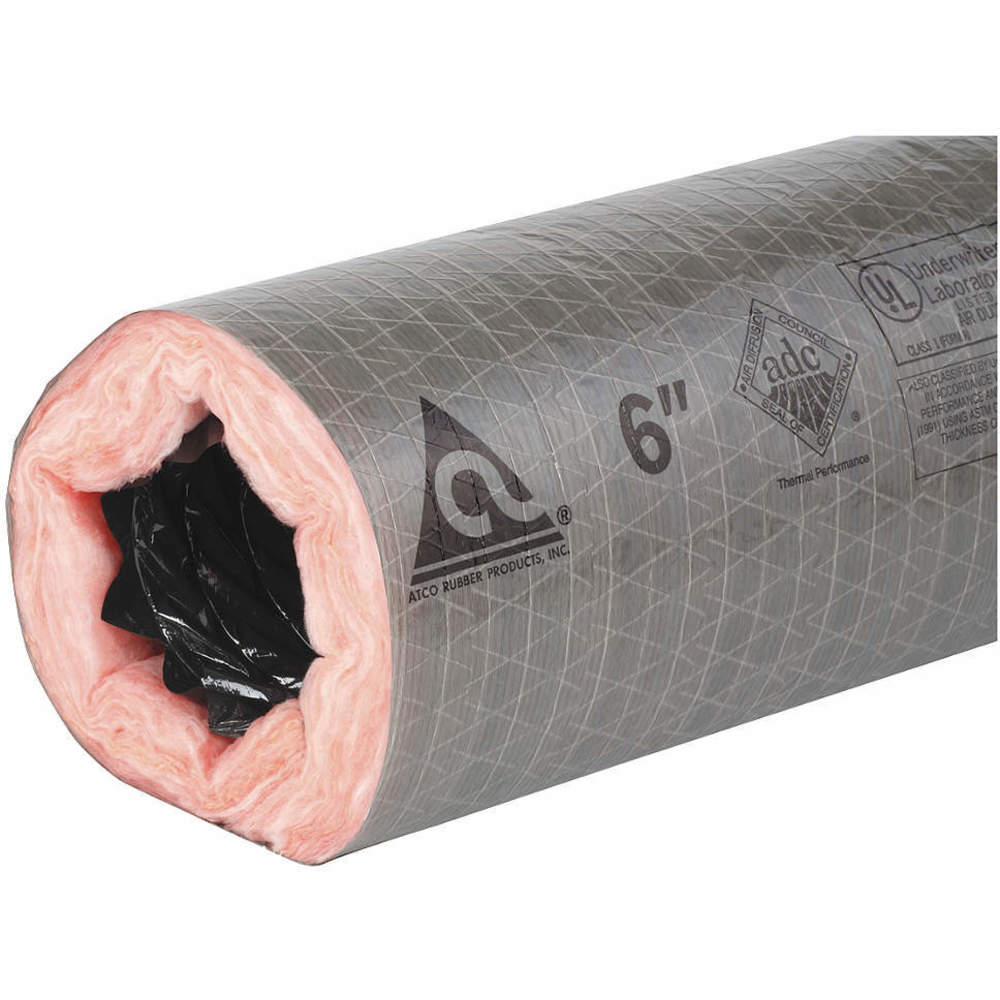

The ATCO PRODUCTS 17802516 is an insulated flexible duct designed for indoor use in low-pressure air moving systems. This duct features a double-ply vapor barrier with tri-directional reinforcements, ensuring durability and performance. Constructed from fiberglass and polyester, it has a smooth interior surface and a gray polyester jacket for enhanced flexibility. This product is suitable for various applications and meets several industry standards.

• Designed for low-pressure air moving systems.
• Double-ply vapor barrier with tri-directional reinforcements.
• Meets CALIFORNIA STATE FIRE MARSHAL and CITY OF CHICAGO standards.

Product Highlights

This insulated flexible duct provides reliable performance for air movement needs within compliant environments.

Product Information

Standard Information

• Item: Insulated Flexible Duct
• Product Type: Insulated Flexible Duct

Technical Specifications

• Color: Gray
• Length: 25 ft
• Inside Diameter: 16 inches
• Wall Thickness: 2.5 inches
• Material: Fiberglass, Polyester
• Insulation Value: R 8
• Maximum Temperature Rating: 140°F
• Minimum Temperature Rating: -20°F
• Maximum Air Speed: 5000 FPM
• Maximum Pressure Rating: 6 in. wc
