ATCO PRODUCTS 17802508 Insulated Flexible Duct 8 Inch Diameter

Product Description

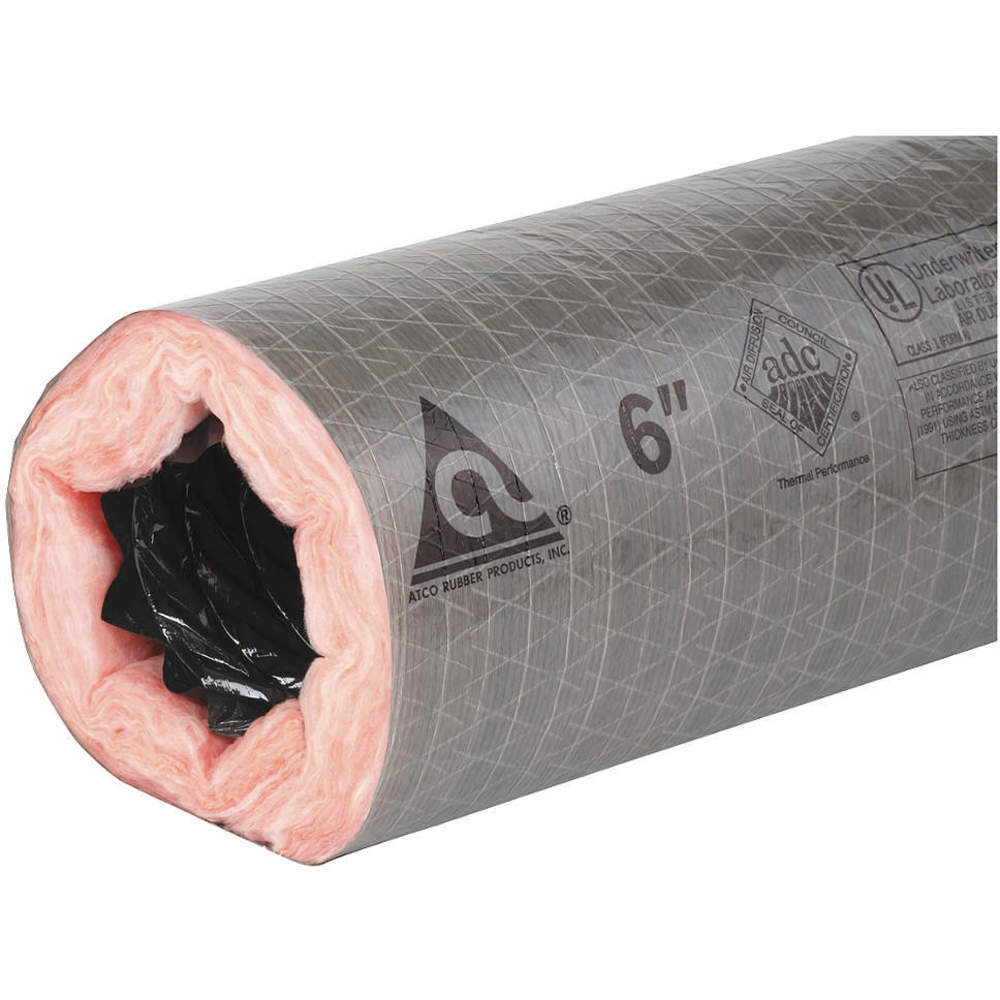

The ATCO PRODUCTS 17802508 is an insulated flexible duct suitable for indoor air moving applications. This duct is designed to efficiently handle low-pressure air and ensures minimal energy loss. It features a double-ply vapor barrier that significantly reduces the risk of air leakage, reinforced with tri-directional enhancements for added durability.

• Designed for ducts with an inside diameter of eight inches.
• Can handle air flow rates up to five thousand feet per minute.
• Rated for a maximum pressure of six inches water column.

Product Highlights

This insulated duct is ideal for HVAC systems where efficiency and insulation are critical. Its interior surface is smooth, which aids in maintaining airflow without obstructions.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 17802508

Technical Specifications

• Compressed Length: 38 inches
• Overall Length: 25 feet
• Wall Thickness: 2.5 inches
• Maximum Air Speed: 5000 FPM
• Maximum Pressure Rating: 6 in. wc
• Maximum Temperature Rating: 140°F
• Minimum Temperature Rating: -20°F
• Insulation Value: R 8
