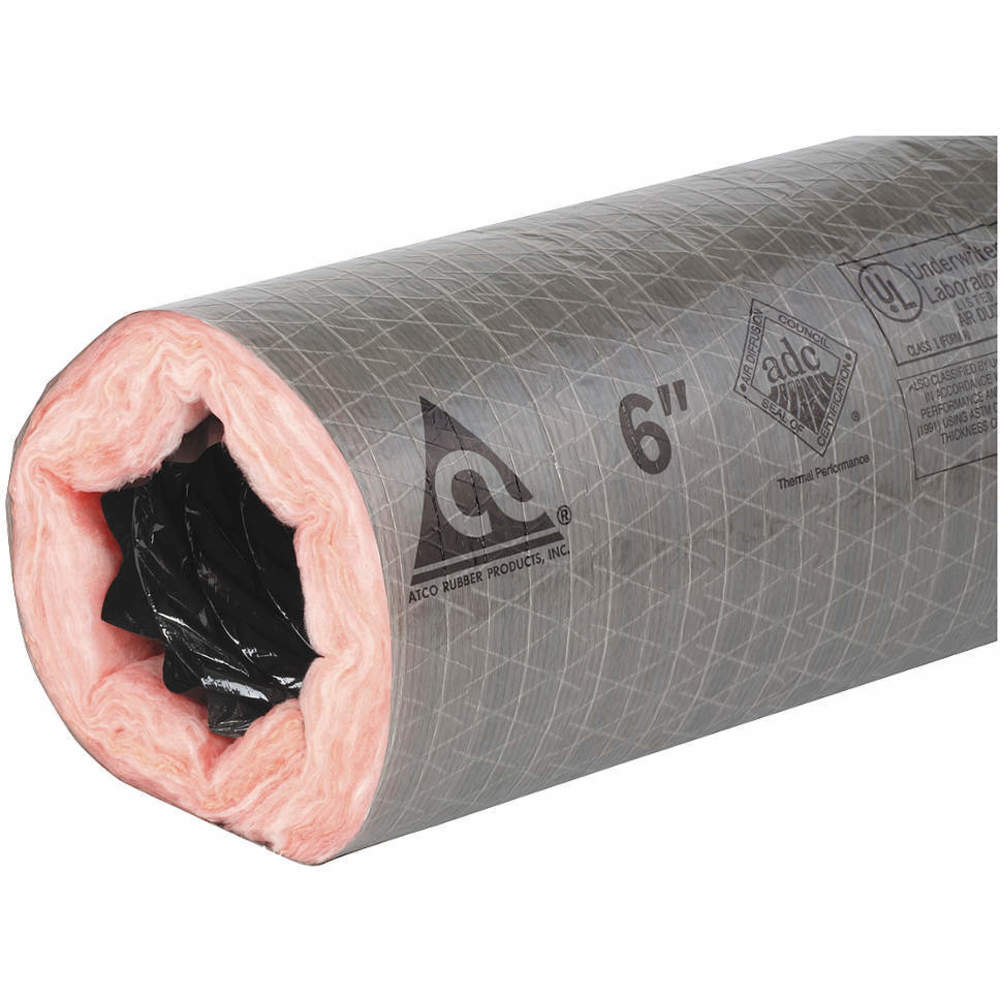

ATCO PRODUCTS 17802506 Insulated Flexible Duct 6 Inch Diameter

Product Description

The ATCO PRODUCTS 17802506 Insulated Flexible Duct is designed for indoor use in low-pressure air moving systems. It features a double-ply vapor barrier with tri-directional reinforcements, ensuring durability and flexibility. Made from fiberglass and polyester, this duct has a smooth interior surface that promotes efficient airflow. It is specifically designed to connect with six-inch diameter ducts. The insulation value of R 8 helps maintain optimal temperature control.

• Complies with standards from CALIFORNIA STATE FIRE MARSHAL, UL, and NFPA.
• Length of twenty-five feet allows for extensive installation options.
• Maximum airflow of five thousand feet per minute at a pressure rating of six inches water column.

Product Highlights

This insulated duct is suitable for residential and commercial HVAC applications.

Product Information

Standard Information

• Item: Insulated Flexible Duct
• Color: Gray

Technical Specifications

• Flexible Duct Inside Diameter: 6 inches
• Maximum Temperature Rating: 140 degrees Fahrenheit
• Minimum Temperature Rating: -20 degrees Fahrenheit
• Overall Length: 25 feet
• Insulation Material: Fiberglass
• Vapor Transmission: 0.6%
• Insulation Value: R 8
• Wall Thickness: 2.5 inches
