ATCO PRODUCTS 17602512 Insulated Flexible Duct - 12 Inch Diameter

Product Description

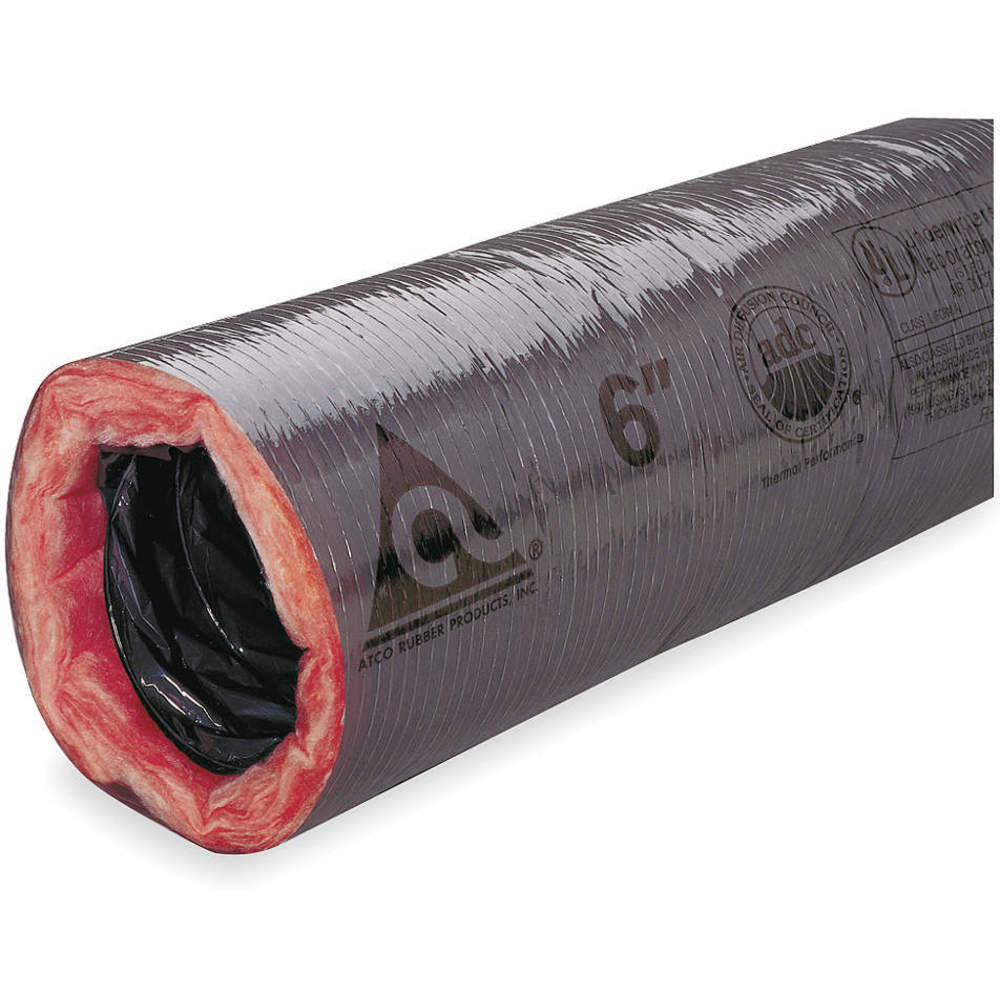

The ATCO PRODUCTS 17602512 is an insulated flexible duct engineered for indoor air distribution. It features an airtight inner core and encapsulated wire helix for robust performance. The smooth interior surface minimizes airflow resistance, ensuring efficient delivery of air. This duct is wrapped in a fiberglass insulation blanket and protected by a reinforced gray polyester jacket, providing durability and effective insulation.

• Flexibility and lightweight design for easy installation
• Compliant with multiple safety standards including CALIFORNIA STATE FIRE MARSHAL
• Max airflow capacity of five thousand feet per minute

Product Highlights

This insulated flexible duct is suitable for HVAC applications that require reliable airflow and insulation. It maintains efficiency even under temperature variations.

Product Information

Standard Information

• Item: Insulated Flexible Duct
• Color: Gray

Technical Specifications

• Inside Diameter: 12 inches
• Overall Length: 25 feet
• Maximum Air Flow: 5000 FPM
• Maximum Pressure Rating: 10 inches wc
• Maximum Temperature Rating: 180°F
• Fire Rating: Flame Spread: 25 Max, Smoke Developed: 50 Max
• Insulation Value: R 6
• Minimum Temperature Rating: -20°F
