ATCO PRODUCTS 17602510 70 Series UL Listed Insulated Flexible Duct 10 x 25' R-6.0

Product Description

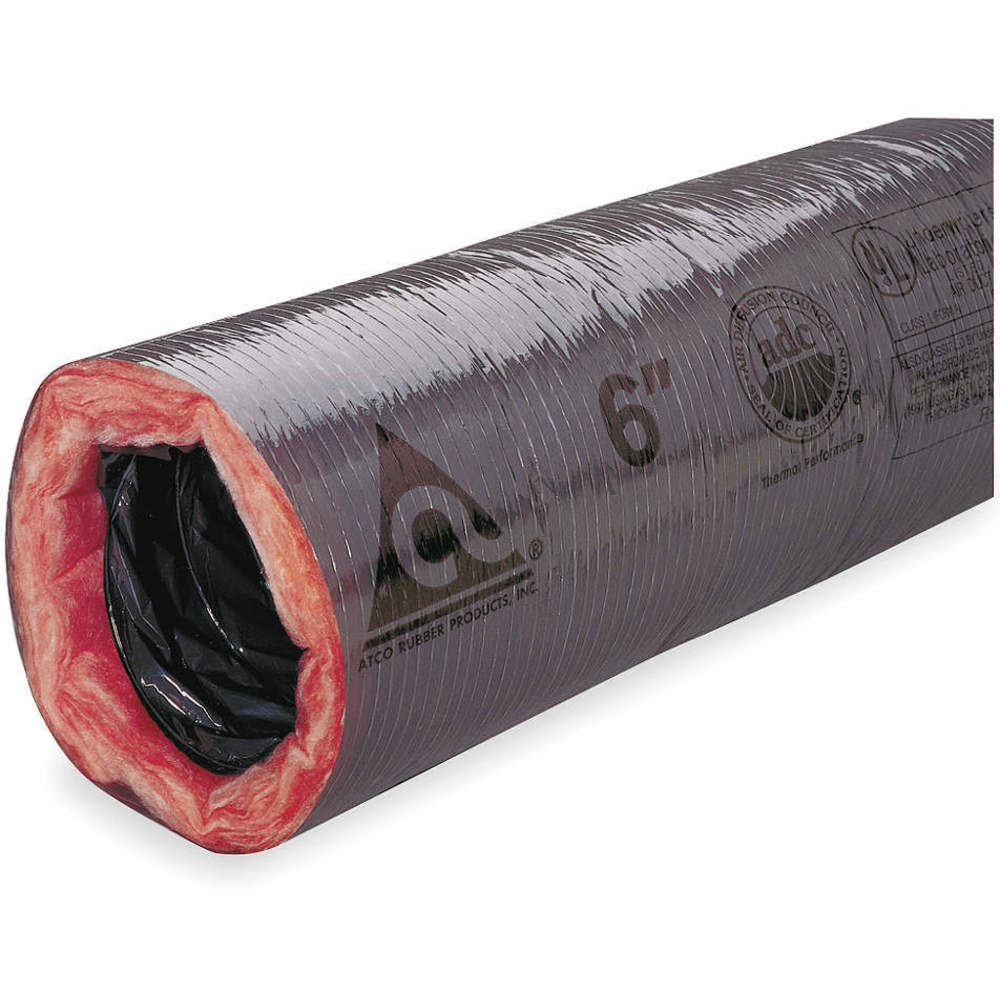

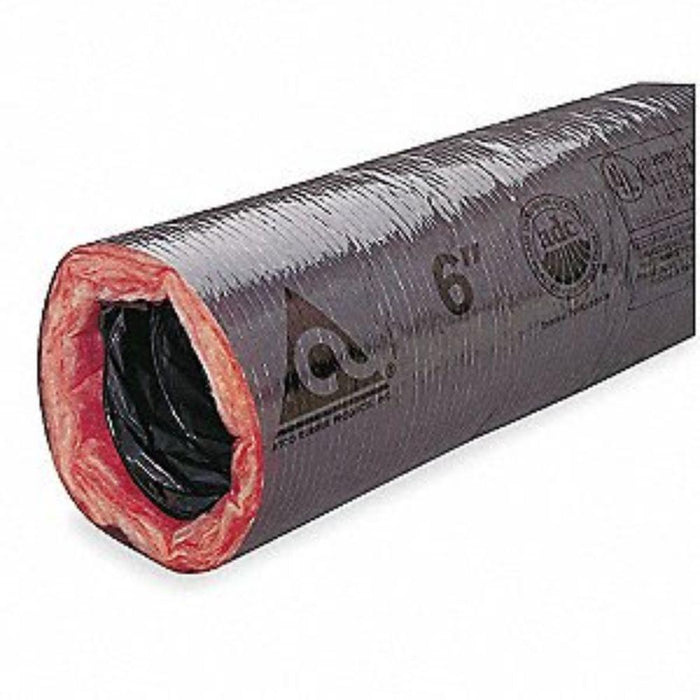

The ATCO PRODUCTS 17602510 is part of the 70 Series and is a UL Listed insulated flexible duct made for HVAC systems. This duct has an air-tight inner core constructed with a double layer of polyester and a steel wire helix for support.

• A fiberglass insulation blanket surrounds the inner core.
• The duct maintains low friction loss due to its smooth inner surface.
• The outer jacket is made from a reinforced gray polyester material.

Product Highlights

The ATCO PRODUCTS 17602510 is designed for low-to-medium operating pressures, ideal for ensuring efficient airflow in heating and cooling systems.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 17602510

Technical Specifications

• Series: 70 Series
• Type: UL Listed Insulated Flexible Duct
• Inside Diameter: 10 inches
• Product Length: 25 feet
• R-Value: R6
• Max. Temperature: 180 degrees Fahrenheit
• Max. Pressure: 10 in. WC
• Max. Air Flow: 5000 FPM
