ATCO PRODUCTS 17602508 Insulated Flexible Duct

Product Description

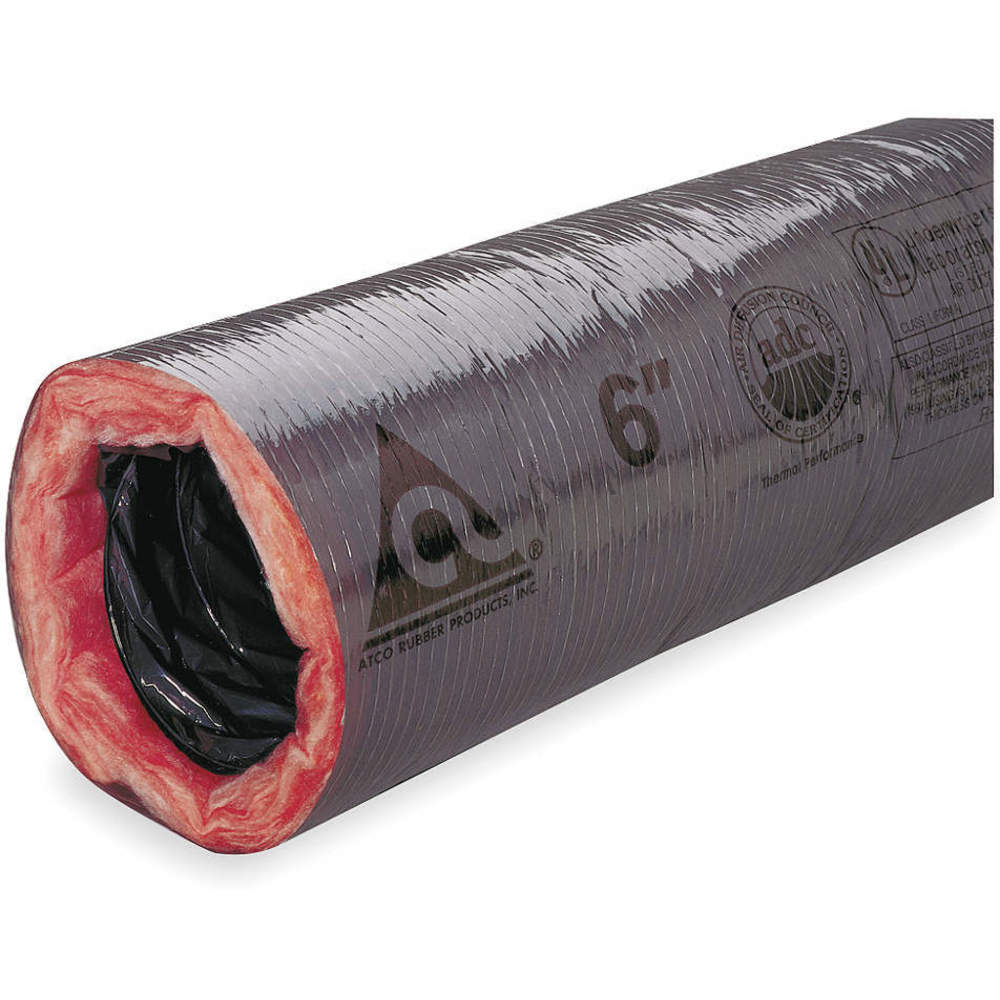

The ATCO PRODUCTS 17602508 is an insulated flexible duct ideal for HVAC system use. It includes a secure air-tight inner core formed by a double layer of polyester surrounding a steel wire helix. The duct is covered in fiberglass insulation and is protected by a reinforced gray polyester jacket. This duct accommodates low to medium operating pressures and complies with UL 181 Class 1 Air Duct standards.

• Air-tight inner core enhances energy efficiency
• Encapsulated wire helix prevents unraveling
• Reinforced gray polyester jacket resists tears and punctures

Product Highlights

This insulated flexible duct is essential for reliable airflow and energy efficiency in HVAC installations.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 17602508

Technical Specifications

• Product Type: Insulated Flexible Duct
• Inside Diameter: 8 inches
• Diameter: 8 inches
• Length: 25 feet
• Overall Length: 25 feet
• Flex Length: 25 feet
• Material: Fiberglass, Polyester
• Jacket Material: Polyester
• Insulation Material: Fiberglass
• R-Value: 6
• Maximum Air Flow: 5000 FPM
• Max. Air Flow: 5000 FPM
• Maximum Pressure: 6 W.G. Positive (4 to 12 diameter), 4 W.G. Positive (14 to 20 diameter), 3/4 W.G. (all diameters)
• Max. Pressure: 10 in. wc
• Pressure Rating: 6 w.g. pos. (4-12 dia.), 4 w.g. pos. (14-20 dia.), 3/4 w.g. (all dia.)
• Maximum Temperature: 250°F (121.11°C)
• Max. Temp.: 180°F
• Maximum Temperature Rating: 180°F
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Minimum Temperature Rating: -20°F
• Vapor Transmission: 0.6%
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Compliance: UL 181 Air Duct
• Approvals: UL Listed
• Jacket Color: Gray
• Flexibility: Flexible
• Environment Type: Indoor
