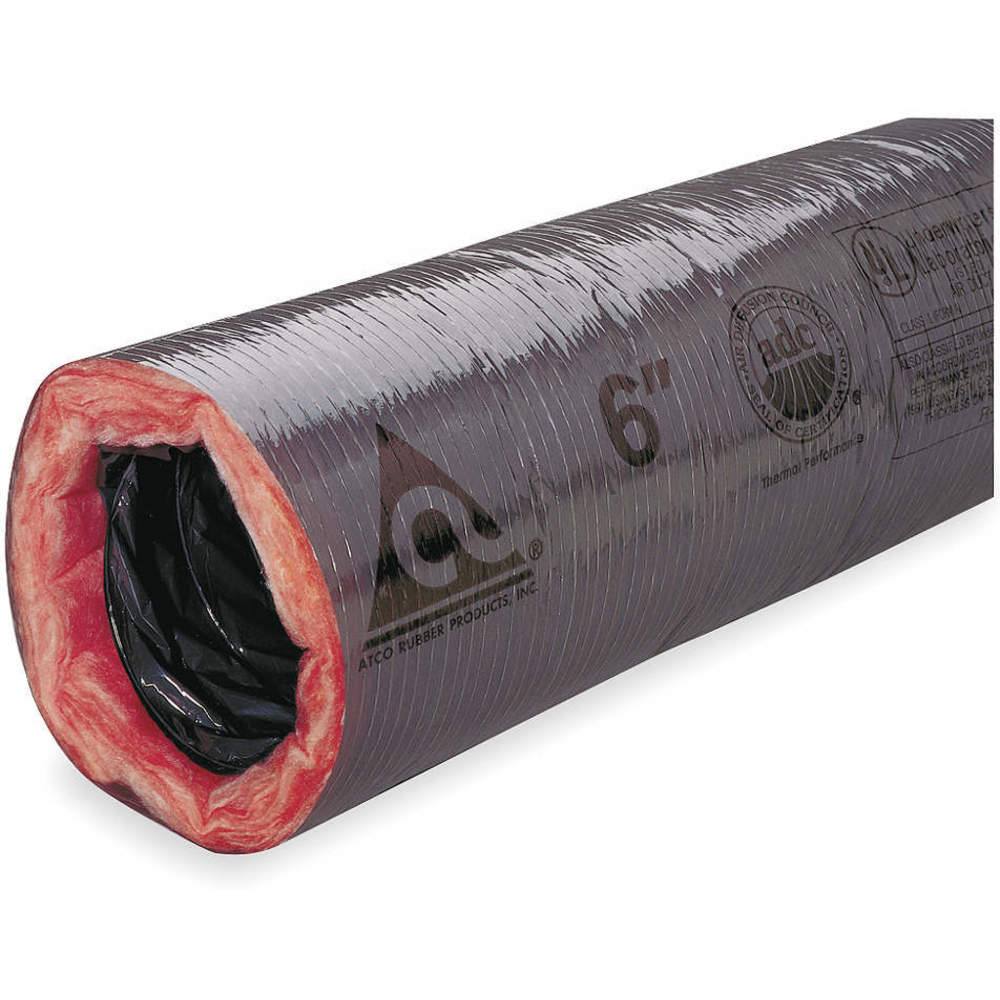

ATCO PRODUCTS 17602506 Insulated Flexible Air Duct 6 in. x 25 ft. R6

Product Description

The ATCO PRODUCTS 17602506 is an insulated flexible air duct designed specifically for indoor HVAC applications. This duct features an air-tight inner core, which ensures efficient airflow while maintaining energy efficiency. The encapsulated wire helix provides flexibility, allowing for easy installation in various configurations without compromising performance. The inner surface is smooth, reducing friction and maximizing airflow.

• Air-tight inner core for energy savings
• Encapsulated wire helix for increased flexibility
• Designed for air flow rates up to 5000 FPM

Product Highlights

This insulated duct is suitable for low-to-medium operating pressures, making it ideal for multiple HVAC systems.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• Product Type: Insulated Flexible Duct

Technical Specifications

• MPN: 17602506
• Inside Diameter: 6 inches
• Length: 25 feet
• Material: Fiberglass, Plastic, Steel, Polyester
• Insulation Material: Fiberglass
• Jacket Material: Polyester
• Maximum Airflow: 5000
• Maximum Air Speed: 5000 FPM
• Maximum Pressure: 10 inches wc
• Maximum Pressure Rating: 6 inches wc
• Maximum Temperature Rating: 180°F
• Minimum Temperature Rating: -20°F
• R Value: R6
• Flexibility: Flexible
• Fire Rating: Flame Spread: 25 Max, Smoke Developed: 50 Max
• UL Listed: UL 181 Class 1
• Environment Type: Indoor
• Vapor Transmission: 0.6%
