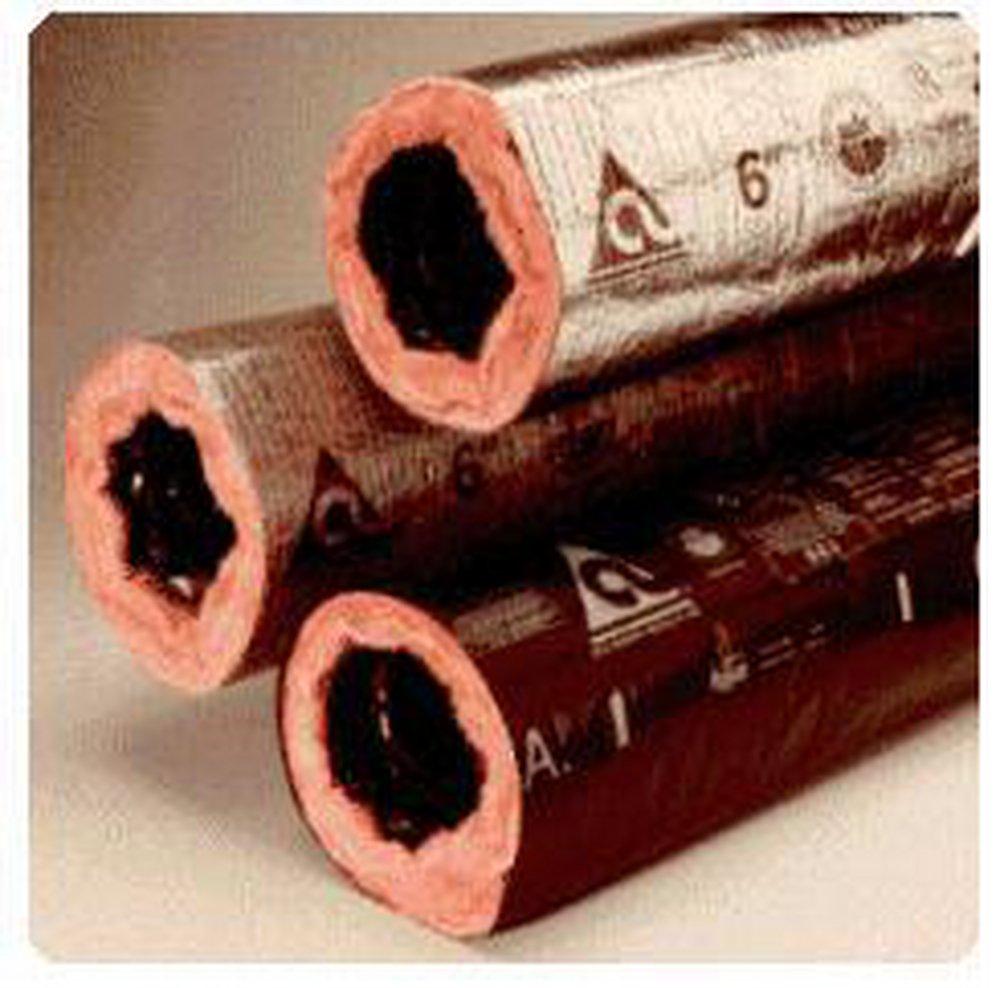

Atco Products 17602410 Insulated Flexible Air Duct

Product Description

The Atco Products 17602410 is a flexible air duct made for HVAC systems. This duct has an air-tight inner core which improves airflow efficiency. It includes an encapsulated wire helix providing strength and durability. The smooth inner core reduces friction for better performance. The fiberglass insulation ensures excellent thermal performance. This duct can handle a maximum flow rate of five thousand feet per minute and has an insulation value of R6. The construction materials include polyester, plastic, and steel.

• Air-tight inner core enhances airflow.
• Encapsulated wire helix for added strength.
• R6 insulation for thermal efficiency.

Product Highlights

Designed for effective air circulation in HVAC applications.

Product Information

Standard Information

• Brand: Atco Products
• Product Name: Insulated Flexible Air Duct

Technical Specifications

• Series: 076 Series
• Inside Diameter: 10 inches
• Length: 25 feet
• Maximum Airflow: 5000 fpm
• Insulation Value: R6
• Vapor Transmission: 0.6 perm
• Pressure: -3/4 to 6 in-WG
• Operating Temperature: -20 to 140 degrees F
• Material: Fiberglass, Plastic, Steel
• Material Type: Polyester
• Color: Gray
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
• ASTM: ASTM C518
• Insulated: Yes
