ATCO PRODUCTS 17002516 Insulated Flexible Duct

Product Description

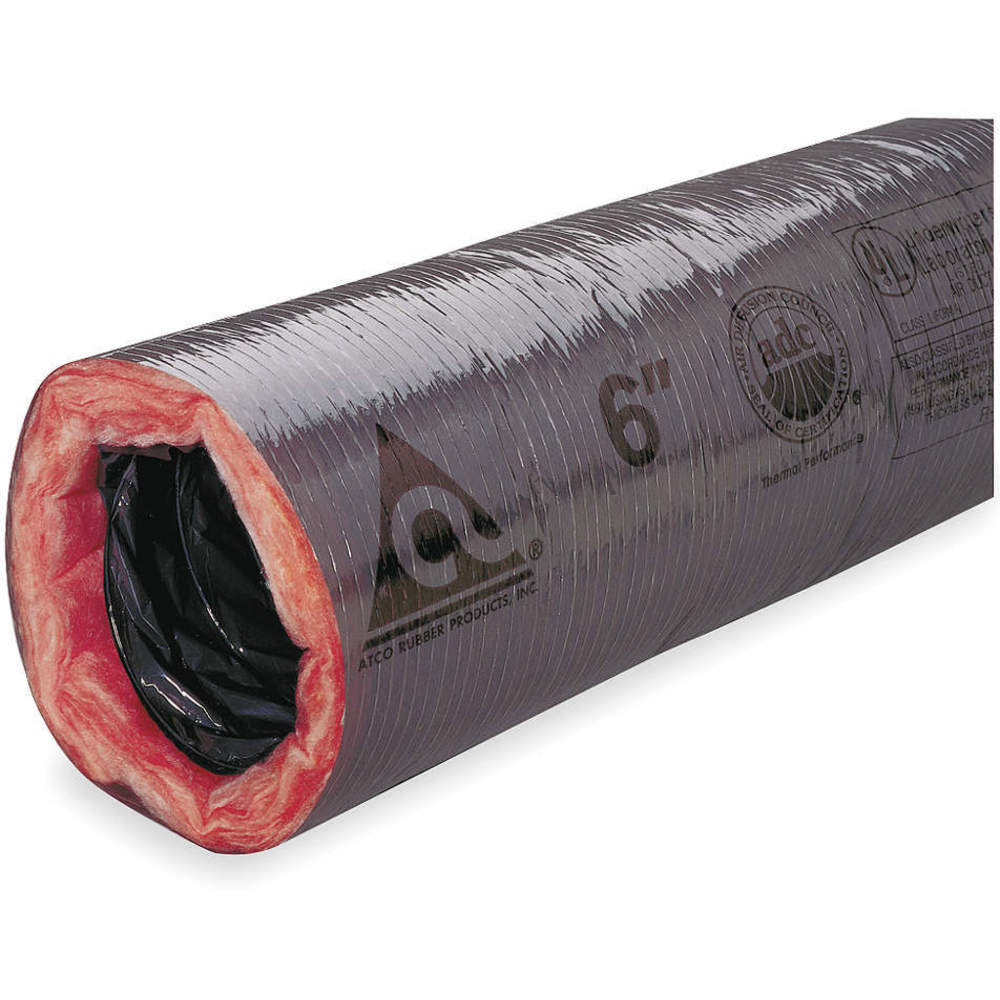

The ATCO PRODUCTS 17002516 is an insulated flexible duct designed specifically for HVAC systems. This duct features a double lamination of polyester that forms an air-tight inner core, encapsulated by a steel wire helix. A fiberglass insulation blanket surrounds the core to enhance thermal performance. It is covered with a reinforced gray polyester jacket, making it suitable for low-to-medium operating pressures.

• Air-tight inner core with encapsulated wire helix.
• Includes fiberglass insulation blanket for improved thermal performance.
• Reinforced gray polyester jacket for durability.

Product Highlights

This insulated flexible duct is UL 181 listed and ideal for various HVAC applications. It maintains flexibility while ensuring efficient air flow.

Product Information

Standard Information

• Brand: ATCO
• Model/Part Number: 17002516

Technical Specifications

• Series: 70 Series
• Inside Diameter: 16 inches
• Length: 25 feet
• Insulation Value: R4.2
• Core Material: Double ply polyester core
• Jacket Material: Polyester
• Wall Thickness: 1.25 inches
• Flexibility: Flexible
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 inches wc
• Operating Temperature: -20°F to 140°F
• Maximum Temperature: 250°F
• Vapor Transmission: 0.6%
• Fire Rating: Flame Spread: 25 Max, Smoke Developed: 50 Max
• Approvals: UL Listed
• Compliance: UL 181 Air Duct
• Insulated: Yes
