ATCO PRODUCTS 17002514 Insulated Flexible Duct, 14 x 25', R-4.2

Product Description

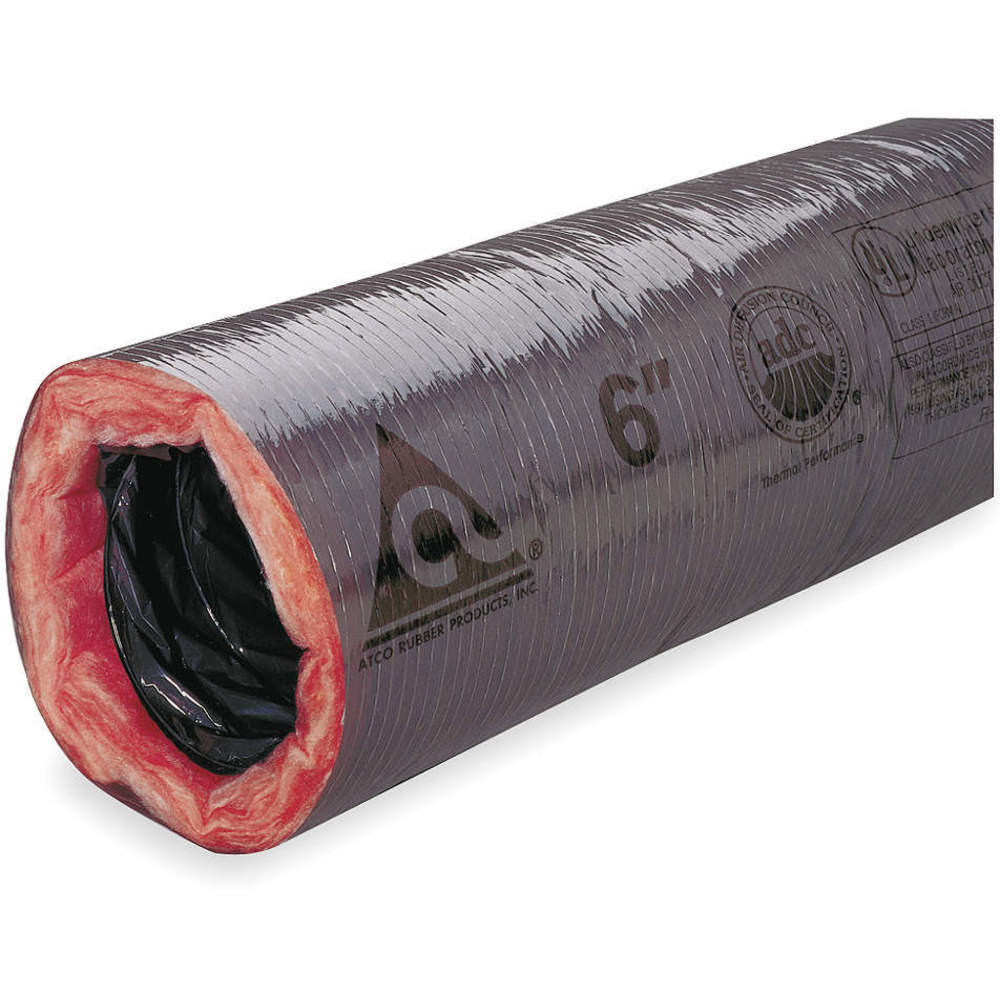

The ATCO PRODUCTS 17002514 is a UL 181 Class 1 insulated flexible duct specifically designed for HVAC systems. It features a strong fiberglass scrim reinforced, grey polyester outer jacket. The duct's inner core is constructed using a double layer of polyethylene that encapsulates a steel wire helix, ensuring an airtight installation. A fiberglass insulation blanket surrounds the core, providing effective thermal insulation. This duct is ideal for low-to-medium operating pressures.

• Airtight inner core minimizes air leakage.
• Reinforced polyester jacket is resistant to tears and punctures.
• Compatible for use in various HVAC systems.

Product Highlights

This product delivers efficient airflow and reliable performance in HVAC applications.

Product Information

Standard Information

• Brand: ATCO
• MPN: 17002514

Technical Specifications

• Type: UL Listed Insulated Flexible Duct
• Inside Diameter: 14 inches
• Flex Length: 25 feet
• R-Value: R4.2
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 W.G. Positive
• Maximum Temperature: 250°F (121.11°C)
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
