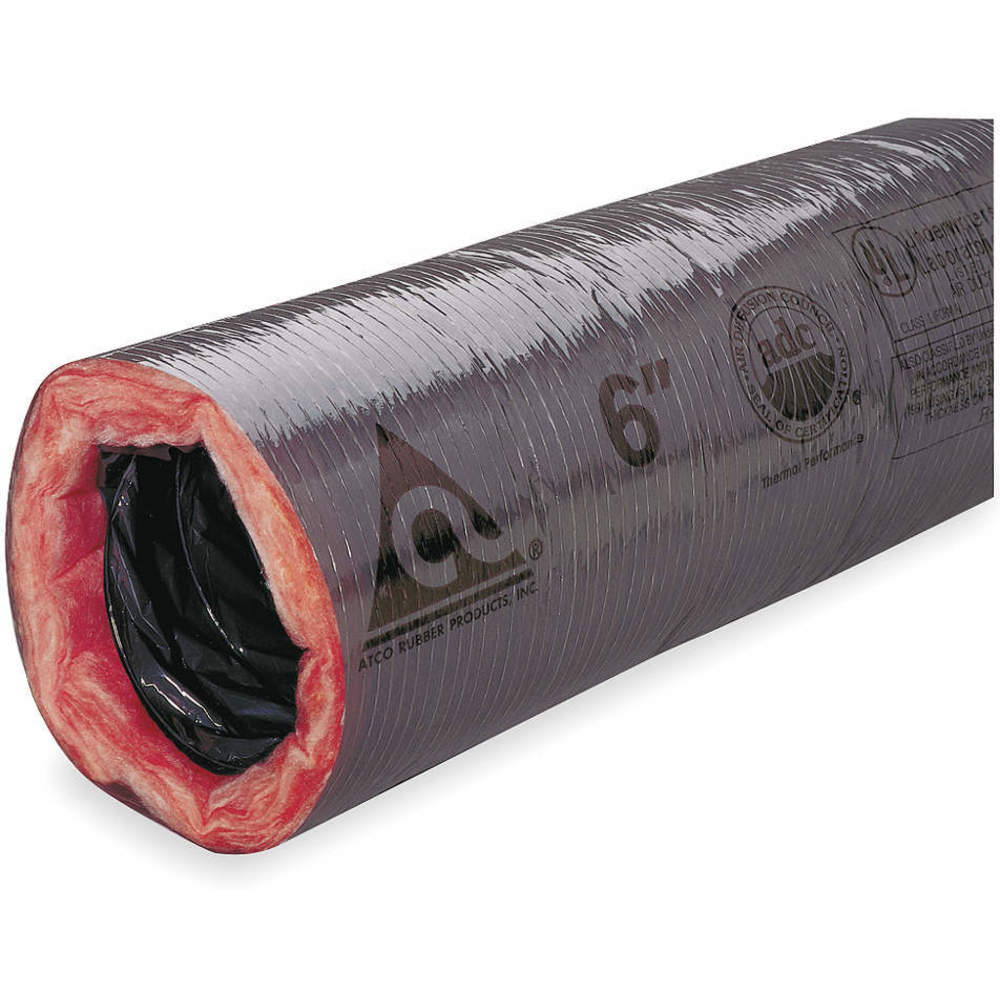

ATCO PRODUCTS 17002506 Insulated Flexible Air Duct 25 ft

Product Description

The ATCO PRODUCTS 17002506 is a twenty-five-foot section of insulated flexible air duct, specifically designed for indoor environments. It features a construction of steel wire, laminated polyester, and fiberglass, which ensures durability and an air-tight inner core. The duct has a smooth interior surface that promotes efficient airflow.

• Constructed from steel wire laminated polyester and fiberglass

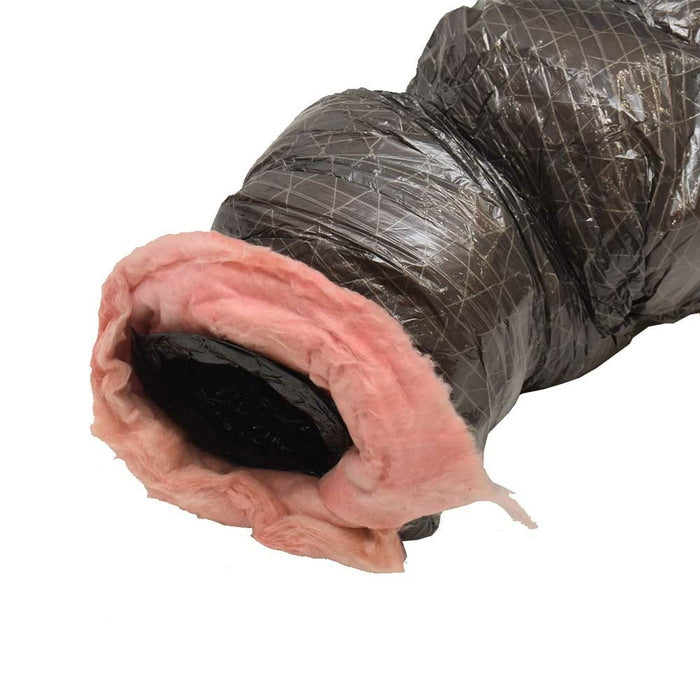

• Encapsulated wire helix with a smooth inner core
• R-value of 4.2 for effective insulation

Product Highlights

The ATCO PRODUCTS 17002506 is engineered for reliable performance in various indoor applications. It effectively reduces energy losses and enhances HVAC efficiency.

Product Information

Standard Information

• Manufacturer Part Number: 17002506
• Material: Fiberglass, Polyester, Steel

Technical Specifications

• Color: Gray
• Insulation Material: Fiberglass
• R Value: R4.2
• Inside Diameter: 6 inches
• Outside Diameter: 6.25 inches
• Length: 25 feet
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 inches wc
• Maximum Temperature Rating: 180°F
• Minimum Temperature Rating: -20°F
• Interior Surface Texture: Smooth
• Flexibility: Flexible
• Environment Type: Indoor
• Jacket Material: Polyester
• Fire Rating: Flame Spread: 25 Max, Smoke Developed: 50 Max
• Standards: CALIFORNIA STATE FIRE MARSHAL, CITY OF CHICAGO, CITY OF SAN FRANCISCO, CUL LISTED, DADE COUNTY, FLORIDA, HUD, IMC, IRC, NEW YORK CITY, NFPA 90A & B, UL LISTED, UMC
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
• Wall Thickness: 1.25
• Vapor Transmission: 0.6%
