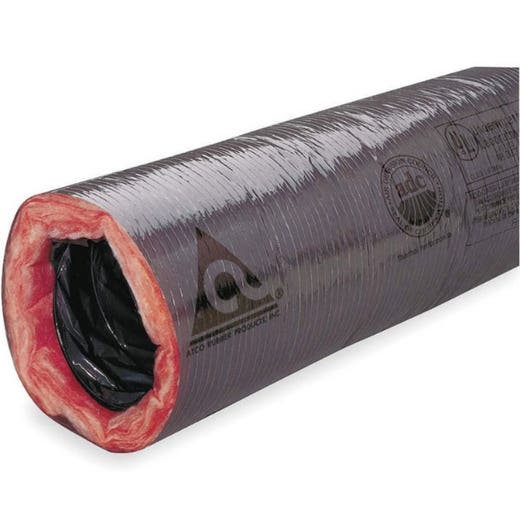

ATCO PRODUCTS 17002505 5 x 25' R4.2 Boxed Flexible Duct

Product Description

The ATCO PRODUCTS 17002505 is a five inches by twenty-five feet insulated flexible air duct suitable for HVAC systems. It features an air-tight inner core that ensures energy efficiency, which is essential for effective heating and cooling. The duct has a tri-directional fiberglass scrim reinforced grey polyester outer jacket that provides durability against tears and punctures.

• Air-tight inner core for energy efficiency.
• Reinforced grey polyester jacket is tear and puncture resistant.
• Suitable for low-to-medium operating pressures in HVAC systems.

Product Highlights

This product is designed for low-to-medium operating pressures and is UL 181 Class 1 Air Duct compliant. It includes a fiberglass insulation blanket for enhanced thermal properties.

Product Information

Standard Information

• Brand: ATCO
• Compliance: UL 181 Air Duct

Technical Specifications

• Composition: Polyester
• Core Material: Double ply polyester core
• Cubic Measurement: 1.008
• Dimensional Weight: 14
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Flex Length: 25 feet
• Flex Type: Insulated
• Height: 7.75 inches
• Inside Diameter: 5 inches
• Insulated: Yes
• Jacket Color: Gray
• Jacket Material: Polyester
• Maximum Air Flow: 5000 FPM
• Maximum Temperature: 250°F (121.11°C)
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Package Type: Box
• Pressure Rating: 6 W.G. Positive
• R-Value: R4.2
• Width: 7.75 inches
• Approvals: UL Listed
