ATCO PRODUCTS 17002412 12 x 25' R4.2 Insulated Flexible Air Duct

Product Description

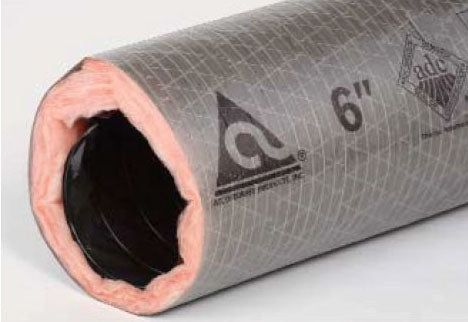

The ATCO PRODUCTS 17002412 is a flexible air duct suitable for HVAC systems. It has an air-tight core made from double-laminated polyester and reinforced with a steel wire helix. Insulation is provided by fiberglass, and the duct is protected by a durable polyester jacket. This product is designed to perform well under low to medium operating pressures and is UL 181 Class 1 compliant.

• Air-tight inner core for improved energy efficiency.
• Reinforced polyester jacket for durability.
• Compatible with low to medium pressure HVAC systems.

Product Highlights

Engineered for reliable ventilation, this duct is ideal for various HVAC applications. Its design supports efficient airflow and enhances energy conservation.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 17002412

Technical Specifications

• Flex Type: Insulated
• Inside Diameter: 12 inches
• Length: 25 feet
• Material: Fiberglass, Plastic, Steel, Polyester
• Jacket Material: Polyester
• R-Value: R4.2
• Maximum Air Flow: 5000 feet per minute
• Maximum Pressure: 10 W.G.
• Maximum Temperature: 250 degrees Fahrenheit
• Operating Temperature: -20 to 140 degrees Fahrenheit
• Fire Rating: Class 1
• Compliance: UL 181 Air Duct
• Vapor Transmission: 0.6 perm
• Core Material: Polyester
• Insulation Type: R4.2 Thick Blanket Fiberglass
• Vent Duct Shape: Round
• Series: 070 Series
