ATCO PRODUCTS 17002408 70 Series UL Listed Insulated Flexible Duct 8 in x 25 ft

Product Description

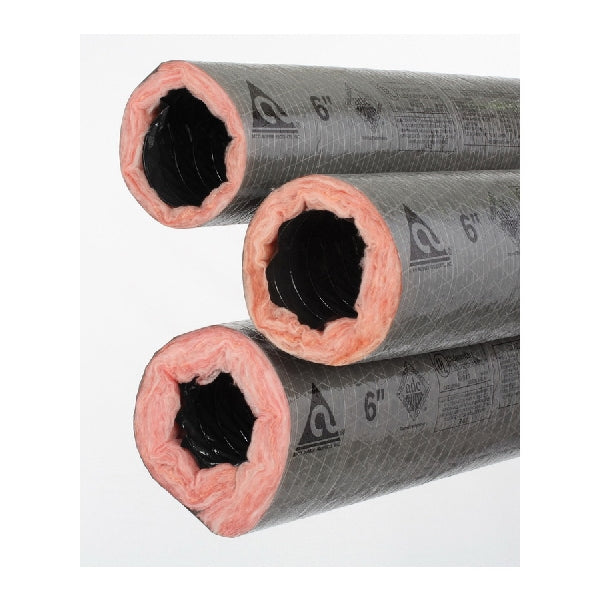

The ATCO PRODUCTS 17002408 is an insulated flexible duct suitable for HVAC systems. This duct is made from a tri-directional fiberglass scrim reinforced, grey polyester outer jacket and includes a double laminated polyester material that encases a steel wire helix. This construction leads to an air-tight inner core that is wrapped in fiberglass insulation. It is designed to handle low-to-medium operating pressures.

• Features an air-tight inner core.
• Includes an encapsulated wire helix.
• Sheathed in a reinforced grey polyester jacket.

Product Highlights

Product Information

Standard Information

• Brand: ATCO
• Series: 70 Series

Technical Specifications

• Model/Part Number: 17002408
• Inside Diameter: 8 inches
• Length: 25 feet
• R-Value: R4.2
• Material: Fiberglass, Plastic, Steel
• Jacket Material: Polyester
• Insulation: Yes
• Fire Rating: Class 1
• Maximum Air Flow: 5000 fpm
• Maximum Pressure: 10 W.G.
• Operating Temperature: -20 to 140 degrees F
• Vapor Transmission: 0.6 perm
• Color: Gray
• Package Type: Bagged
• Compliance: UL 181 Air Duct
• Core Material: Polyester
• UL Listed: UL 181 Class 1
