Product Description

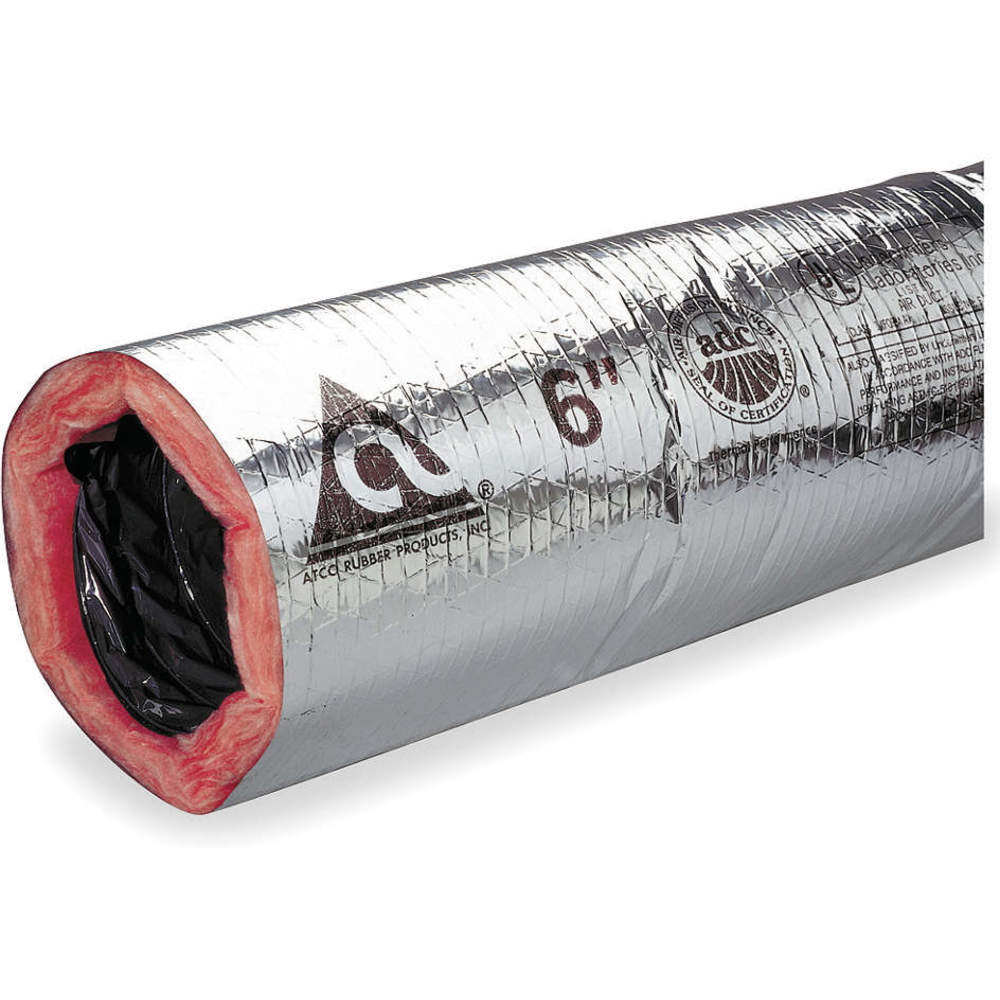

The Atco Products 13602510 is a Class 1 insulated flexible duct designed for HVAC systems. This duct features an airtight inner core created with double layers of polyester and a steel wire helix. It is wrapped with fiberglass insulation and covered in a metallized polyester jacket. The product works well for low-to-medium operating pressures.
- Airtight core prevents fiberglass from entering the air stream.
- Reinforced metallized polyester jacket for added durability.
- Designed for indoor use.
Product Highlights
This insulated flexible duct is ideal for HVAC applications. It provides effective thermal performance and is suitable for a wide range of indoor environments.
Product Information
Standard Information
-
Brand: Atco Products
-

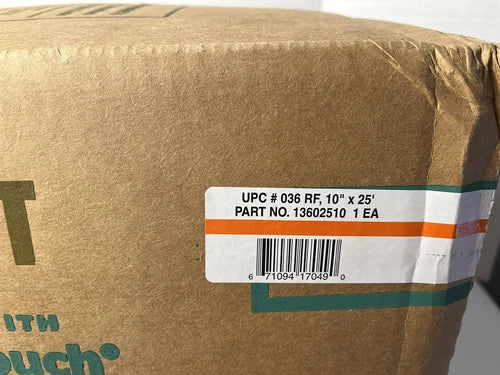

MPN: 13602510
Technical Specifications
-
Series: 30 Series
-
Inside Diameter: 10 inches
-
Outside Diameter: 10 inches
-
Length: 25 feet
-
Material: Polyester
-
Duct Material: Fiberglass
-
Jacket Material: Fiberglass Scrim Reinforced Metallized Polyester
-
Maximum Air Flow: 5000 FPM
-
Maximum Pressure: 6 inches wc
-
Maximum Temperature: 250°F (121.11°C)
-
Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
-
Fire Rating: Flame Spread 25 max, Smoke Developed 50 max
-
R-Value: R-6.0
-
Vapor Transmission: 0.05 Perms
-

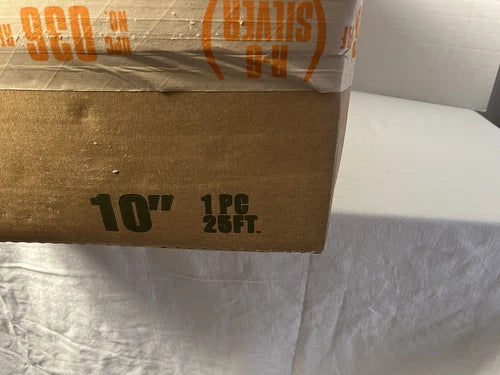

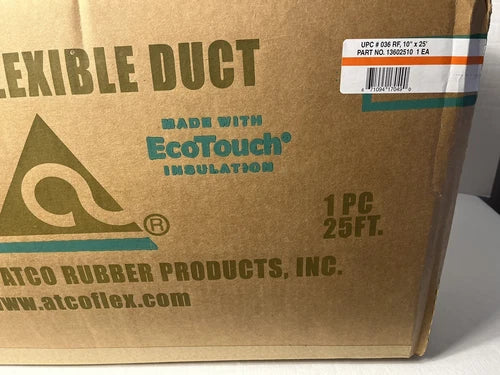

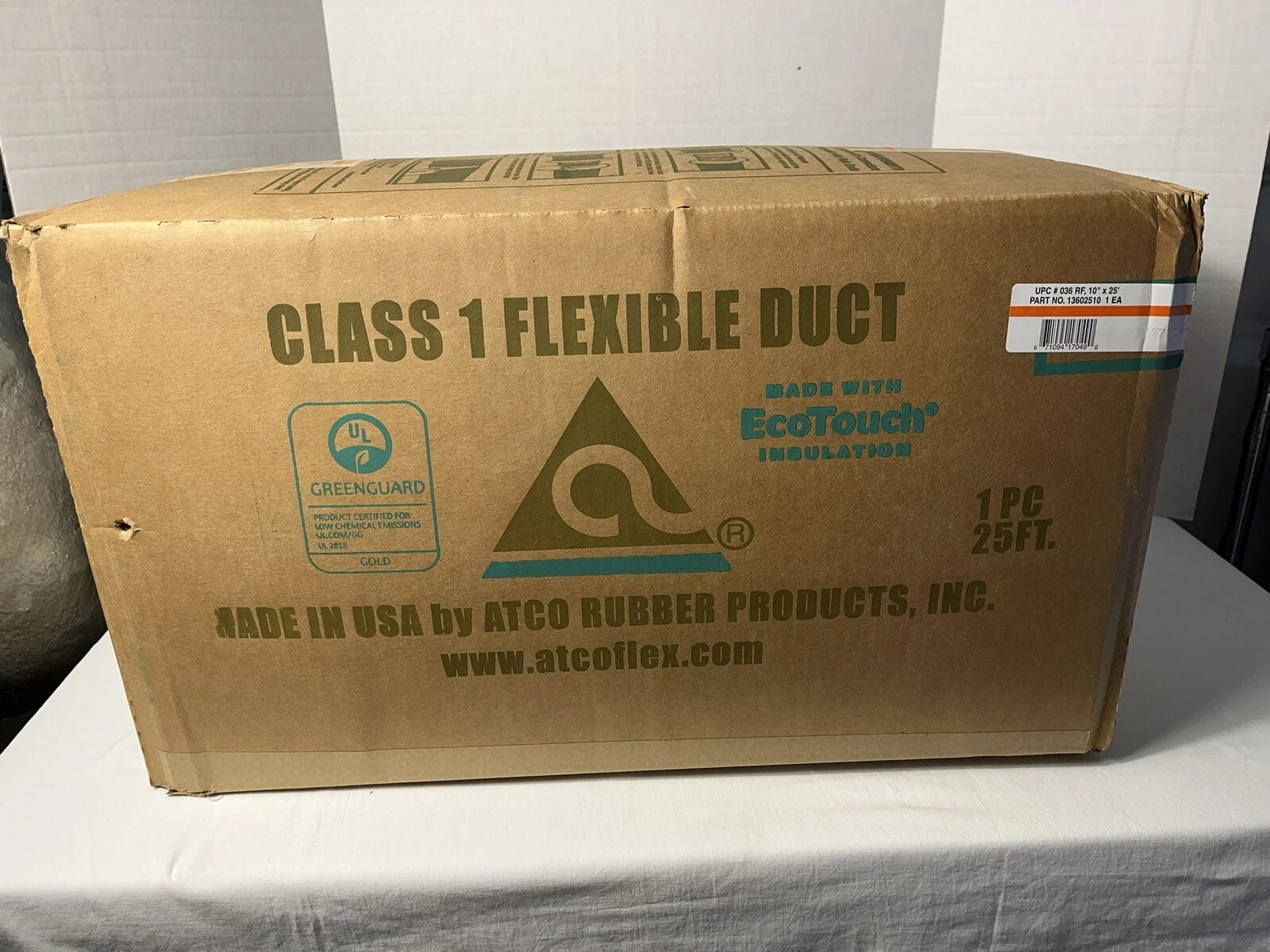

Package Type: Boxed
-
Jacket Color: Silver
-
Approvals: UL Listed
-
Compliance: UL 181, NFPA 90A & 90B, IMC
-
Wall Thickness: 2 inches
-
End Type: Plain
-
Environment Type: Indoor
-
Insulated: Yes
-
Insulation Value: R-6
-
Interior Surface Texture: Smooth
-
Maximum Continuous Length: 100 feet
