ATCO PRODUCTS 13602506 6-inch x 25-foot R6 Insulated Flexible Air Duct

Product Description

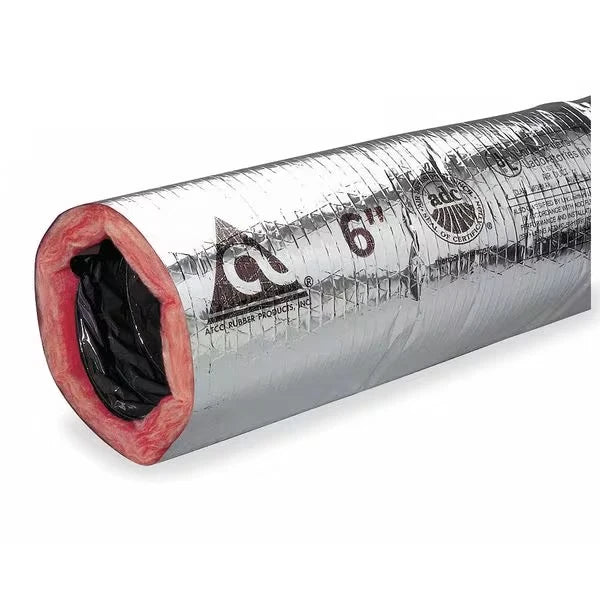

The ATCO PRODUCTS 13602506 is a flexible air duct suitable for HVAC systems. It features a UL 181 Class 1 insulation rating. The duct is made with a fiberglass scrim reinforced, metallized polyester outer jacket which protects the inner materials.

• Air-tight inner core prevents fiberglass erosion into the airflow.
• Encapsulated wire helix improves durability when cutting.
• Metallized polyester jacket resists tears and punctures.

Product Highlights

This product is designed for low-to-medium operating pressures, making it versatile for various HVAC applications.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 13602506

Technical Specifications

• Type: Flexible Duct
• Shape: Round
• Inside Diameter: 6 inches
• Length: 25 feet
• Material: Fiberglass, Plastic, Steel
• Insulated: Yes
• R Value: R6
• Maximum Temperature: 250°F
• Operating Temperature: -20°F to 140°F
• Compliance: UL 181, NFPA 90A & 90B
• Vapor Transmission: 0.05 Perms
• Maximum Pressure: 6 W.G. Positive
• Package Type: Box
