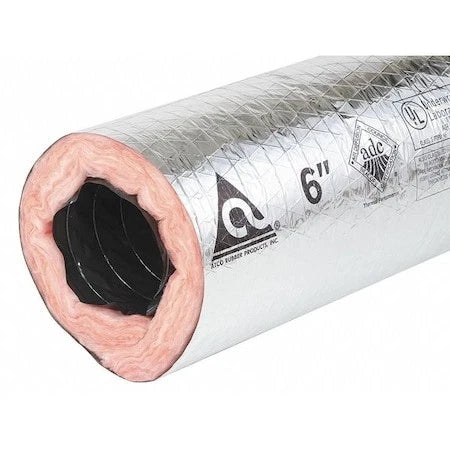

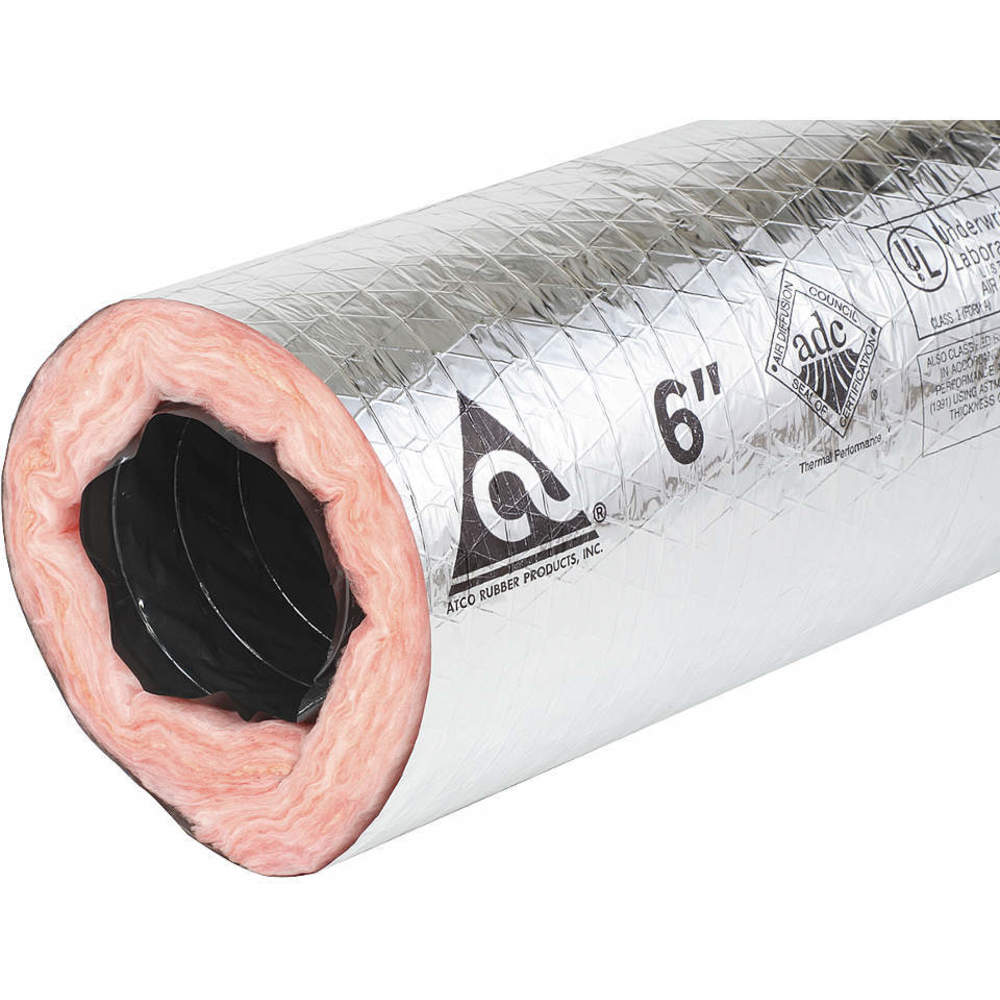

ATCO PRODUCTS 13102508 Insulated Flexible Duct 8 x 25' R8

Product Description

The ATCO PRODUCTS 13102508 is an insulated flexible air duct designed for HVAC applications. This product has a strong air-tight inner core made from a double layer of polyester that encases a steel wire helix. The duct is covered in fiberglass insulation and finished with a metallized polyester outer jacket. It meets Class 1 standards and is appropriate for low to medium operating pressures.

• Air-tight inner core for energy savings
• Metallic jacket provides resistance to tearing and puncturing
• Designed for low pressure air movement systems

Product Highlights

This duct is crafted to minimize fiberglass erosion, ensuring clean air flow within HVAC systems.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 13102508

Technical Specifications

• Inner Diameter: 8 inches
• Length: 25 feet
• Material: Plastic, Fabric, Silicone, Fiberglass, Metallized Polyester, Polyester
• Jacket Material: Fiberglass Scrim Reinforced Metalized Polyester
• R-Value: R8
• Maximum Air Flow: 5000 feet per minute
• Maximum Pressure: 6 inches water column
• Maximum Temperature: 250°F (121.11°C)
• Minimum Temperature: -20°F
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Flexibility: Flexible
• Core Material: Double ply polyester core
• Environment Type: Indoor
• Approvals: UL Listed, complies with various fire safety standards
• Duct Material: Fiberglass
