ATCO PRODUCTS 13102506 Silver R8 Insulated Flexible Air Duct - 6 in. x 25 ft.

Product Description

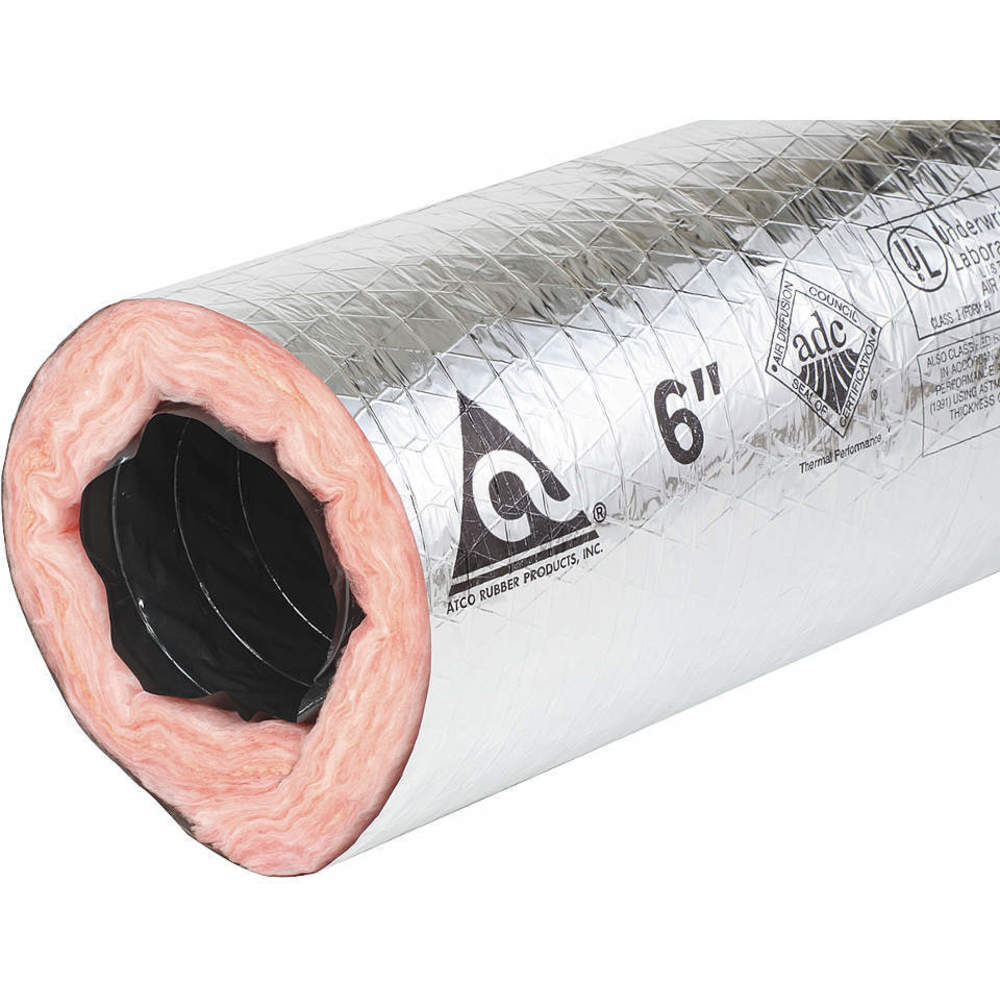

The ATCO PRODUCTS 13102506 is an insulated flexible air duct with a diameter of six inches and a length of twenty-five feet. This duct is built to withstand low-to-medium operating pressures in HVAC systems. It features a tri-directional fiberglass scrim reinforced metallized polyester outer jacket, providing durability and efficiency. The inner core is designed to be airtight, which enhances energy efficiency in air distribution. The duct includes a double lamination of polyester that encases a steel wire helix, making installation straightforward and secure.

• Airtight inner core improves energy efficiency.
• Encapsulated wire helix enables quick and easy installation.
• Smooth inner core design minimizes friction loss.

Product Highlights

This product is suitable for various HVAC applications where efficient airflow is necessary.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 13102506

Technical Specifications

• Series: 30 Series
• Material: Fiberglass, Metallized Polyester, Polyester, Steel
• Insulation Material: Fiberglass
• R Value: R-8.0
• Inside Diameter: 6 inches
• Length: 25 feet
• Maximum Airflow: 5000 FPM
• Maximum Pressure: 6 inches WC
• Maximum Temperature: 140°F
• Flexibility: Flexible
• Color: Silver
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
• Wall Thickness: 2.5 inches
• Fire Rating: Flame Spread/Smoke Developed - Less Than 25/Less Than 50
• End Type: Plain
• Environment Type: Indoor
