ATCO PRODUCTS 13002514 Insulated Flexible Duct 14 x 25' R4.2

Product Description

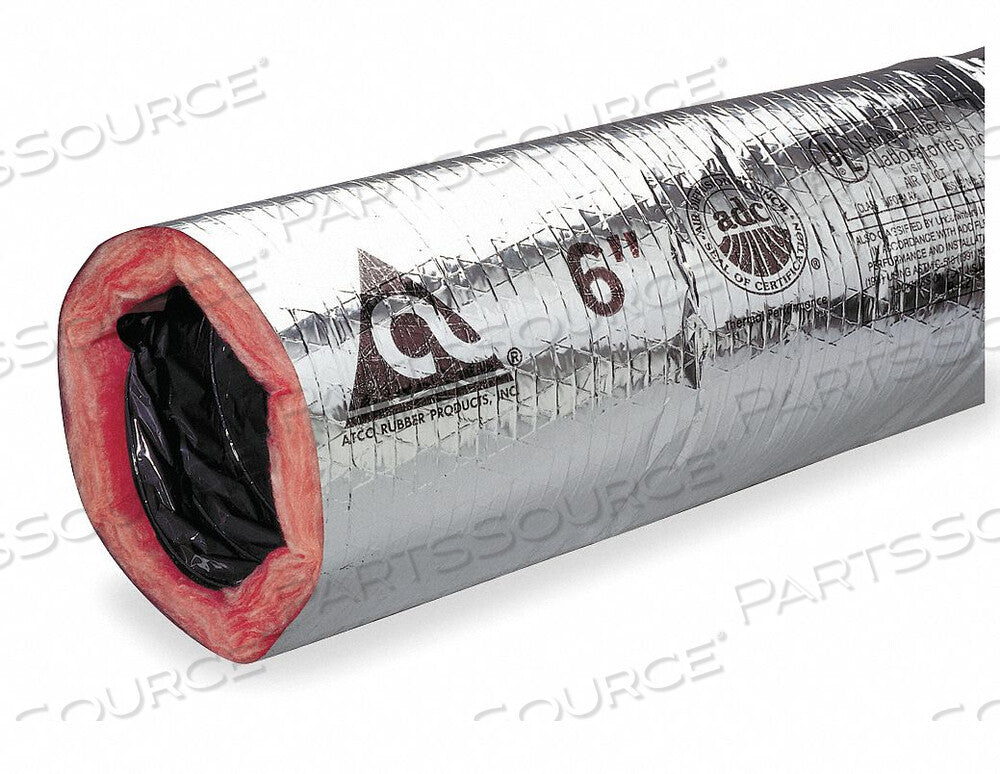

The ATCO PRODUCTS 13002514 is an insulated flexible duct created for HVAC applications. This duct features an airtight inner core and a robust, metallized polyester outer jacket reinforced in three directions. The construction includes a double layer of polyester that envelopes a steel wire helix, all wrapped in fiberglass insulation. It is suitable for low to medium operating pressures and meets UL 181 Class 1 Air Duct standards, complying with NFPA 90A & 90B, IMC, IRC, and UMC 10-1 regulations.

• Features an airtight inner core.
• Includes a reinforced metallized polyester jacket.
• Designed with encapsulated wire helix for added strength.

Product Highlights

The duct is designed to handle various HVAC needs, ensuring efficient air flow and insulation to maintain temperature.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 13002514

Technical Specifications

• Flex Type: Insulated
• Inside Diameter: 14 inches
• Flex Length: 25 feet
• R-Value: R4.2
• Jacket Material: Metallized Polyester
• Core Material: Double ply polyester core
• Maximum Air Flow: 5000 FPM
• Operating Temperature: -20°F to 140°F
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Maximum Pressure: 6 W.G. Positive (4 to 12 diameter), 4 W.G. Positive (14 to 20 diameter)
• Vapor Transmission: 0.05 Perms
• Compliance: UL 181, NFPA 90A & 90B, IMC, IRC, UMC 10-1
• Approvals: UL Listed
• Weight: 21 lbs
