ATCO PRODUCTS 13002508 R4.2 Insulated Flexible Duct

Product Description

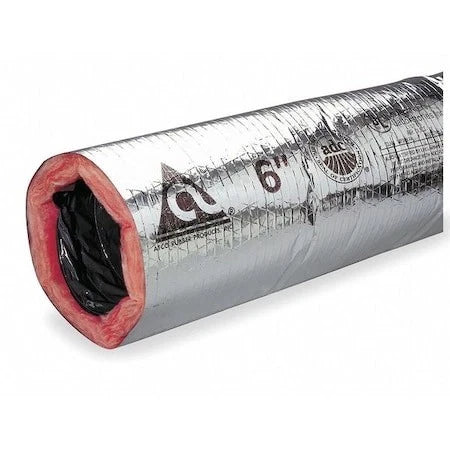

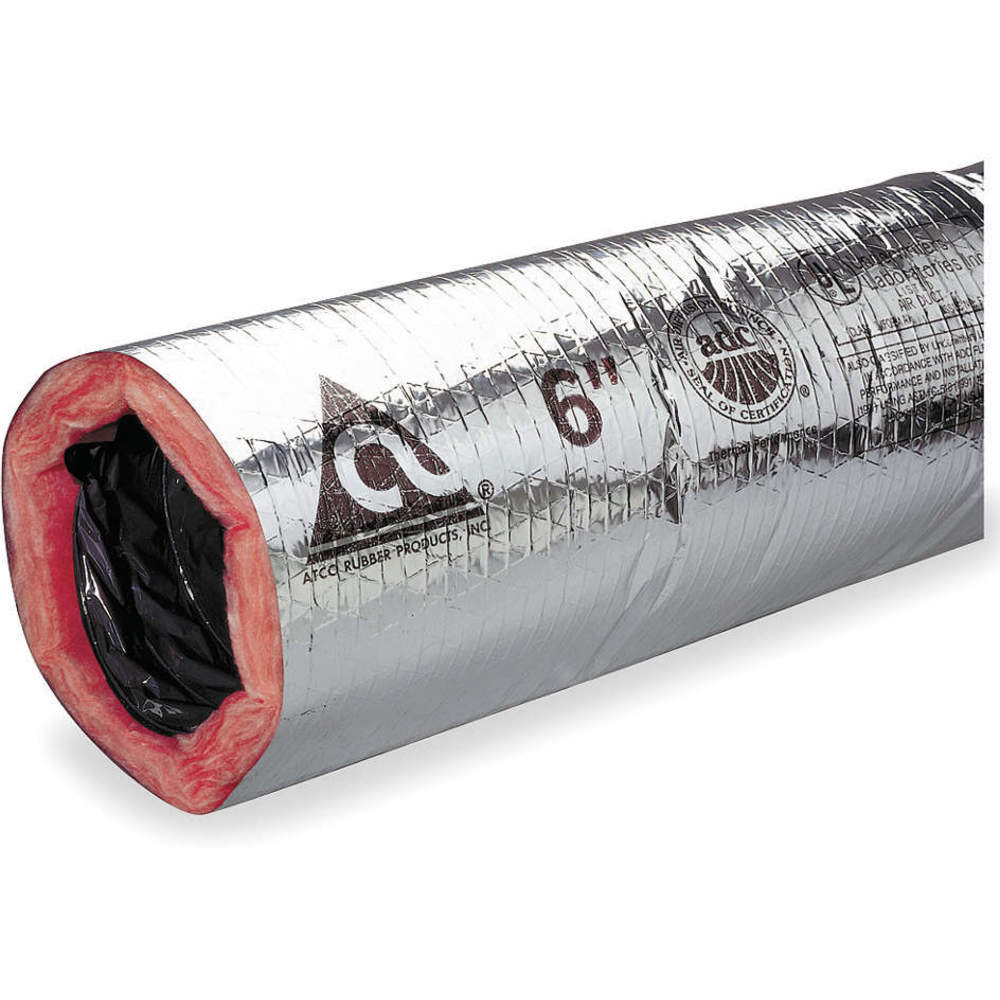

The ATCO PRODUCTS 13002508 is a reliable insulated flexible duct for HVAC systems. It includes an air-tight inner core made from double-ply polyester with a steel wire helix, providing durability. The fiberglass insulation enhances thermal performance which decreases energy loss. The duct is UL 181 Class 1 listed, making it suitable for low-to-medium operating pressures.

• Air-tight inner core to prevent fiberglass erosion.
• Encapsulated wire helix prevents cutting issues.
• Metallized polyester jacket is resistant to tears and punctures.

Product Highlights

This insulated flexible duct supports effective air distribution while ensuring energy efficiency and compliance with industry standards.

Product Information

Standard Information

• Brand: ATCO
• MPN: 13002508

Technical Specifications

• Model: Atco 13002508
• Type: Flexible Ducts
• Compliance: UL 181, NFPA 90A & 90B, IMC, IRC, UMC 10-1
• Core Material: Double ply polyester core
• Flex Length: 25 ft
• Inside Diameter: 8 in
• R-Value: R4.2
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 W.G. Positive
• Maximum Temperature: 250°F
• Minimum Temperature: -20°F
• Wall Thickness: 1 1/4 in
