Atco Products 13002506 Insulated Flexible Air Duct

Product Description

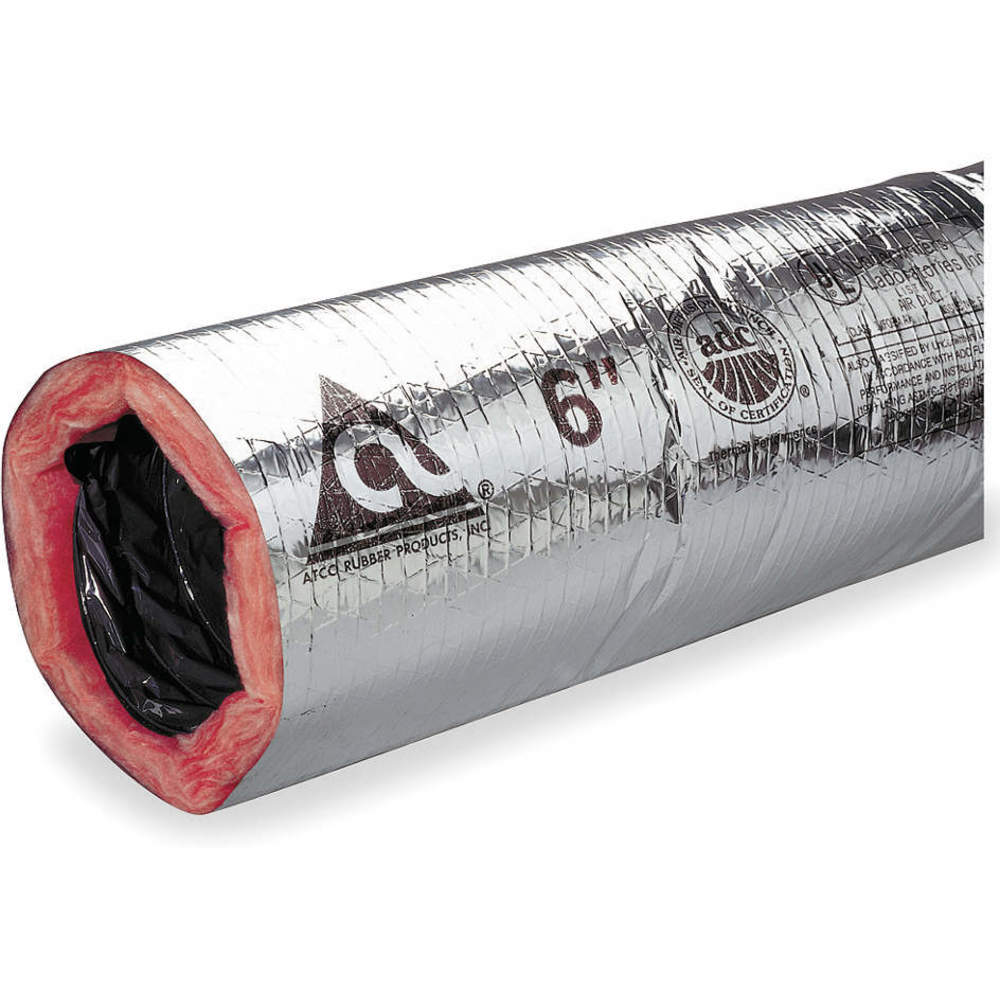

The Atco Products 13002506 is designed for use in HVAC systems. This insulated flexible air duct features an air-tight inner core that contributes to energy efficiency. The duct is made with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket, which assures durability. It includes a steel wire helix encapsulated within double layers of polyester, making installation straightforward. Suitable for low-to-medium operating pressures, this duct is UL 181 Class 1 listed.

• Air-tight inner core for energy efficiency
• Encapsulated wire helix for simple installation
• Fiberglass insulation for effective thermal performance

Product Highlights

Ideal for various HVAC applications, the Atco Products 13002506 duct ensures reliable airflow while maintaining energy efficiency.

Product Information

Standard Information

• Brand: Atco Products
• MPN: 13002506

Technical Specifications

• Series: 030 Series
• Inside Diameter: 6 inches
• Length: 25 feet
• Insulation Value: R4.2
• Material: Fiberglass, Plastic, Steel
• Maximum Airflow: 5000 fpm
• Maximum Pressure: 6 inches wc
• Maximum Temperature: 180°F
• Minimum Temperature: -20°F
• Vapor Transmission: 0.05 perm
• Fire Rating: Flame Spread: 25 Max, Smoke Developed: 50 Max
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
• Wall Thickness: 1 1/4 inches
