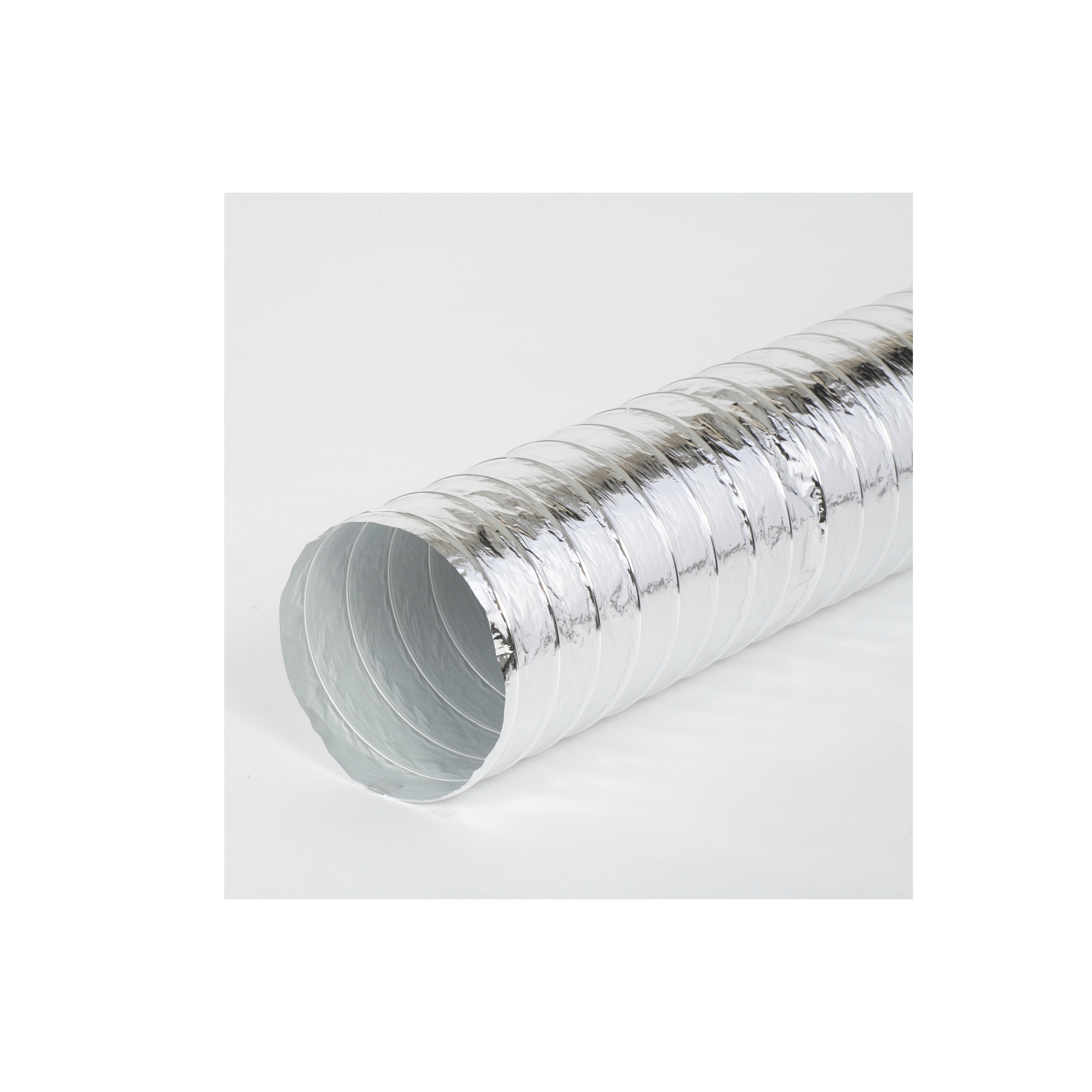

Atco 5102504 Non-Insulated Flexible Air Connector 4 in ID x 25 ft L 5000 fpm Metalized Polyester Domestic

Product Description

The Atco 5102504 Non-Insulated Flexible Air Connector is a versatile HVAC ducting solution. It features a 4 inch inside diameter and a 25-foot length, making it suitable for various air distribution applications. Constructed with durable metalized polyester, this connector supports a flow rate of 5000 fpm. It meets the requirements of UL 181 Class 1, ensuring safe and reliable performance in low to medium pressure HVAC systems.

• 4 inch inside diameter
• 5000 fpm flow rate
• 25 foot length

Product Highlights

This Atco air connector is designed for easy installation and maintenance. The encapsulated wire helix prevents unraveling when cut to length.

Product Information

Standard Information

• Type: Non-Insulated
• Series: 050 Series

Technical Specifications

• Material: Metalized Polyester
• Flow Rate: 5000 fpm
• Length: 25 ft
• Inside Diameter: 4 in
• Pressure Rating: -3/4 to 6 in-WG
• Temperature Rating: -20 to 180 deg F
• Country of Origin: US
• Suitable For Use With: Air Distribution System, Connecting Ducts, Mixing Boxes, Diffusers, Light Troffers, Room Inlets or Other Terminal Devices
