Atco 13602408 036brf 8 inches x 25 feet R6 Bagged Flexible Duct

Product Description

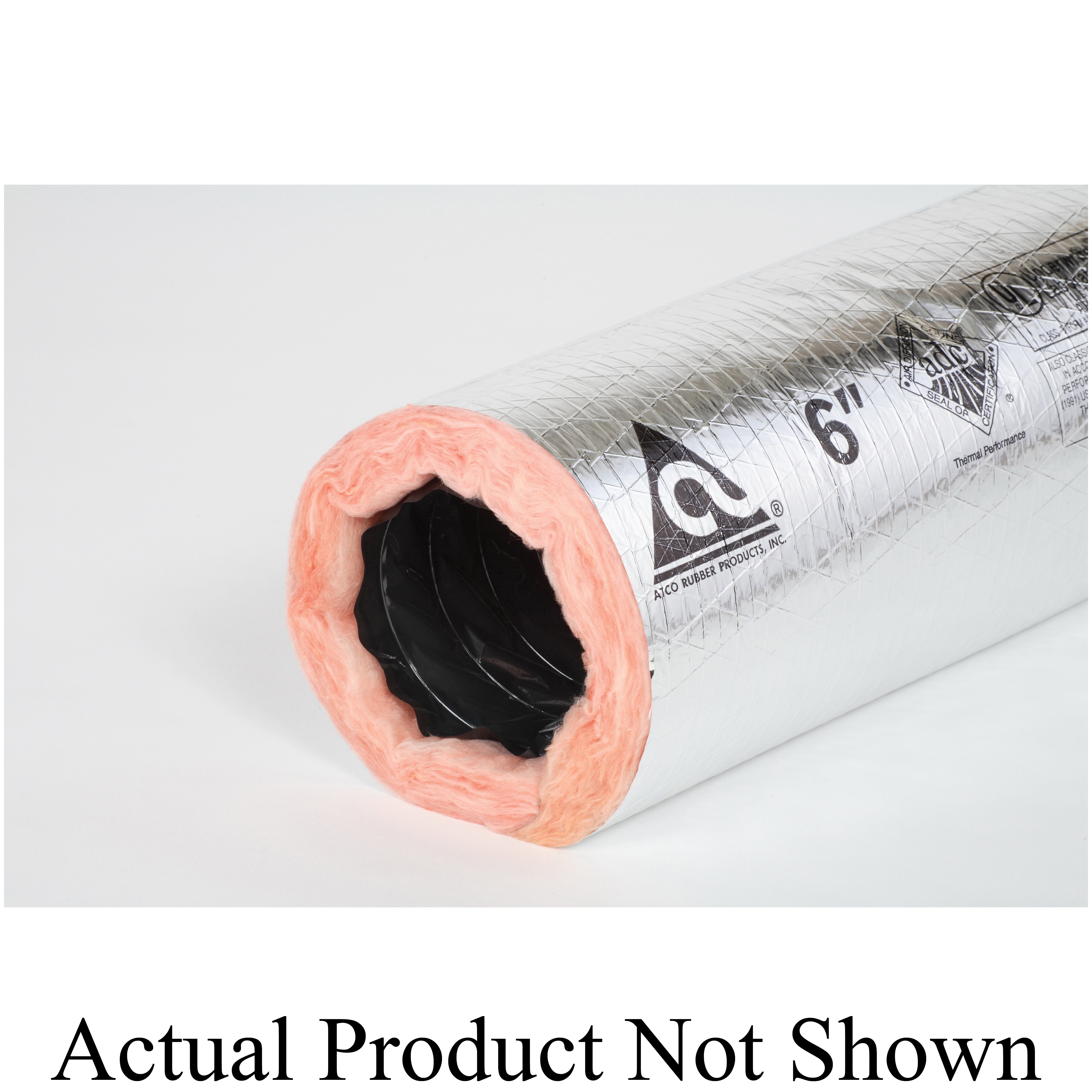

The ATCO 13602408 is a UL 181 Class 1 air duct designed for HVAC systems. Constructed with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket and an air-tight inner core, it ensures energy efficiency. It is suitable for low-to-medium operating pressures. The flexible duct has increased insulation for superior thermal performance.

• Air-tight inner core prevents fiberglass erosion into the air stream and ensures energy efficiency.
• Encapsulated wire helix prevents unraveling when cut and allows for quick installation.
• Smooth inner core minimizes friction loss and reduces operating costs.

Product Highlights

This insulated flexible air duct is tear and puncture resistant, ensuring low maintenance and efficient HVAC performance.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 13602408
• Country of Origin: USA

Technical Specifications

• Brand: ATCO
• Compliance: UL 181, NFPA 90A & 90B, IMC, IRC, UMC 10-1 (ICC ES REPORT NO. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida),
• Composition: Metallized Polyester
• Core Material: Double ply polyester core.
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Flex Length: 25'
• Flex Type: Insulated
• Inside Diameter: 8"
• Insulated: Yes
• Jacket Material: Fiberglass Scrim Reinforced Metalized Polyester
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6" W.G. Positive, 4"to 12" diameter, 4" W.G. Positive, 14" to 20" diameter, 3/4" W.G., all diameters
• Maximum Temperature: 250°F (121.11°C)
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Pressure Rating: 6" w.g. pos., 4"-12" dia., 4" w.g. pos., 14"-20" dia., 3/4" w.g., all dia.
• Prop 65: Yes
• R-Value: R6
• Size: 8" x 25'
• UL Listed: Yes
• Vapor Transmission: 0.05 Perms
• Country of Origin: USA
• Series: 036 Series
• Material: Polyester/Fiberglass/Metalized Polyester
• Flow Rate: 5000 fpm
• Temperature Rating: -20 to 140 deg F
