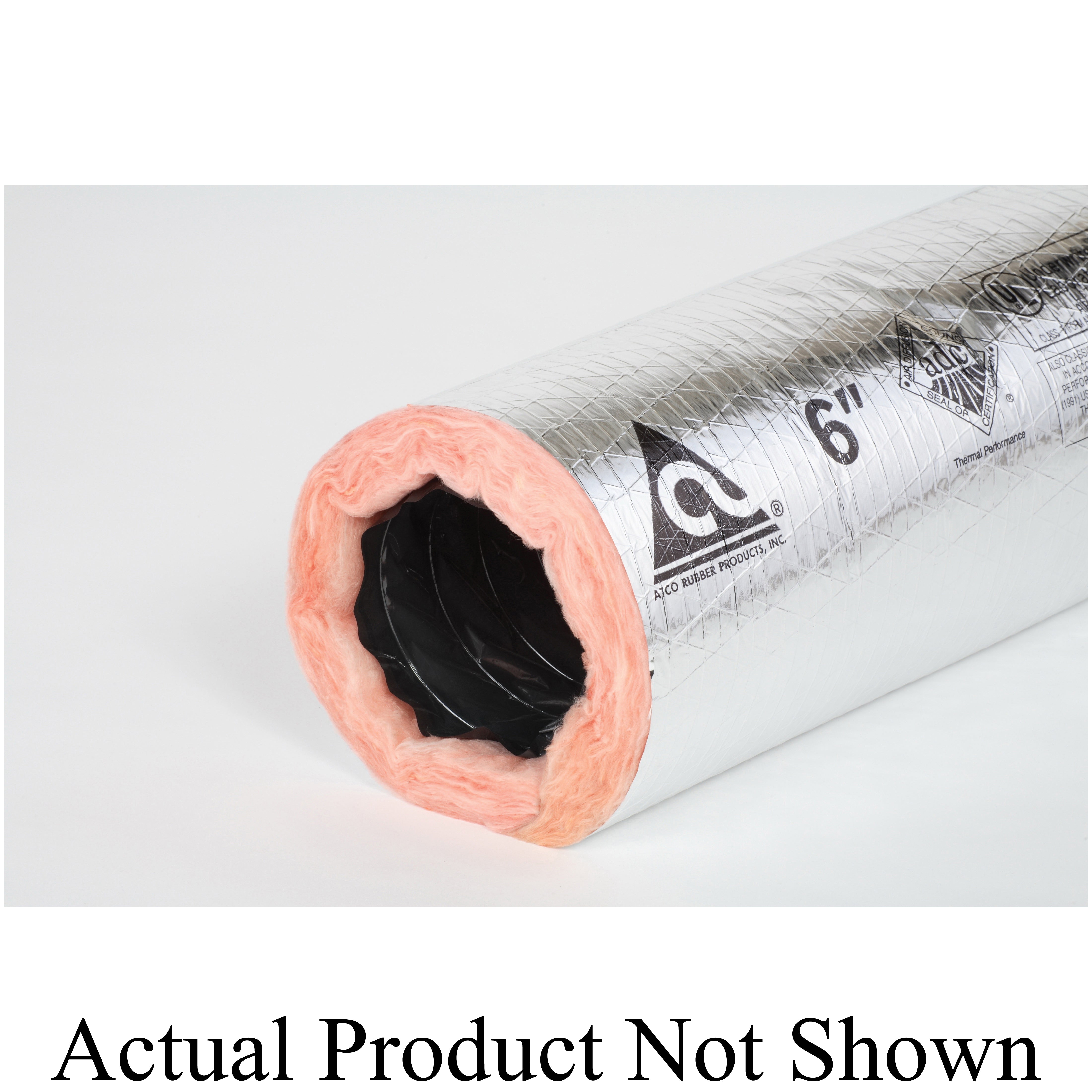

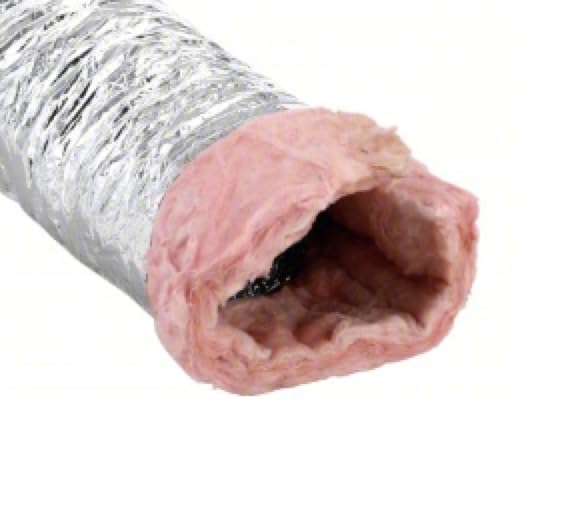

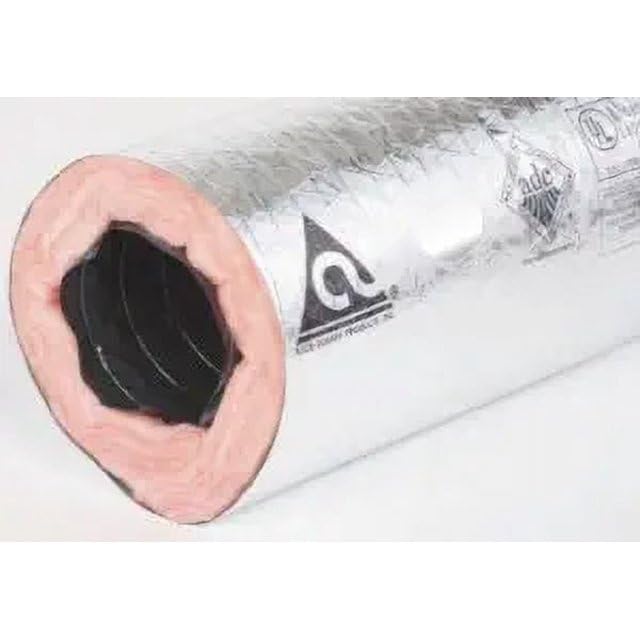

Atco 13602407 036brf 7 inches x 25 feet R6 Bagged Flexible Duct

Product Description

The ATCO 13602407 is a UL 181 Class 1 Air Duct designed for HVAC systems. Constructed with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket and an air-tight inner core, it ensures low-to-medium operating pressures. It features increased insulation for superior thermal performance. Ideal for residential and commercial use.

• Air-tight inner core ensures energy efficiency and prevents fiberglass erosion.
• Encapsulated wire helix prevents unraveling and allows for quick installation.
• Tough reinforced metallized polyester jacket offers tear and puncture resistance.

Product Highlights

This insulated flexible air duct features a double-ply polyester core, fiberglass insulation, and a metallized polyester jacket. It is UL 181 listed and suitable for use in complete air duct systems.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 13602407
• Country of Origin: US

Technical Specifications

• Brand: ATCO
• Compliance: UL 181, NFPA 90A & 90B, IMC, IRC, UMC 10-1 (ICC ES REPORT NO. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida),
• Composition: Metallized Polyester
• Core Material: Double ply polyester core.
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Flex Length: 25'
• Flex Type: Insulated
• Inside Diameter: 7"
• Insulated: Yes
• Jacket Material: Fiberglass Scrim Reinforced Metalized Polyester
• Length: 25 ft
• Maximum Air Flow: 5000 FPM
• Maximum Temperature: 250°F (121.11°C)
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Pressure Rating: 6" w.g. pos., 4"-12" dia., 4" w.g. pos., 14"-20" dia., 3/4" w.g., all dia.
• Prop 65: Yes
• R-Value: R6
• Size: 7" x 25'
• UL Listed: Yes
• UPC: 671094170322
• Vapor Transmission: 0.05 Perms
• Country of Origin: USA
• Series: 036 Series
• Material: Polyester/Fiberglass/Metalized Polyester
• Flow Rate: 5000 fpm
• Domestic/Import: Domestic
• Insulation Value: R6
• Temperature Rating: -20 to 140 deg F
• Suitable For Use With: Complete Air Duct System and/or a Branch Duct Connecting to Mixing Boxes, Diffusers, Light Troffers, Room Inlets or other Terminal Devices
