Atco 13602405 036brf 5 inches x 25 feet r6 bagged flexible duct

Product Description

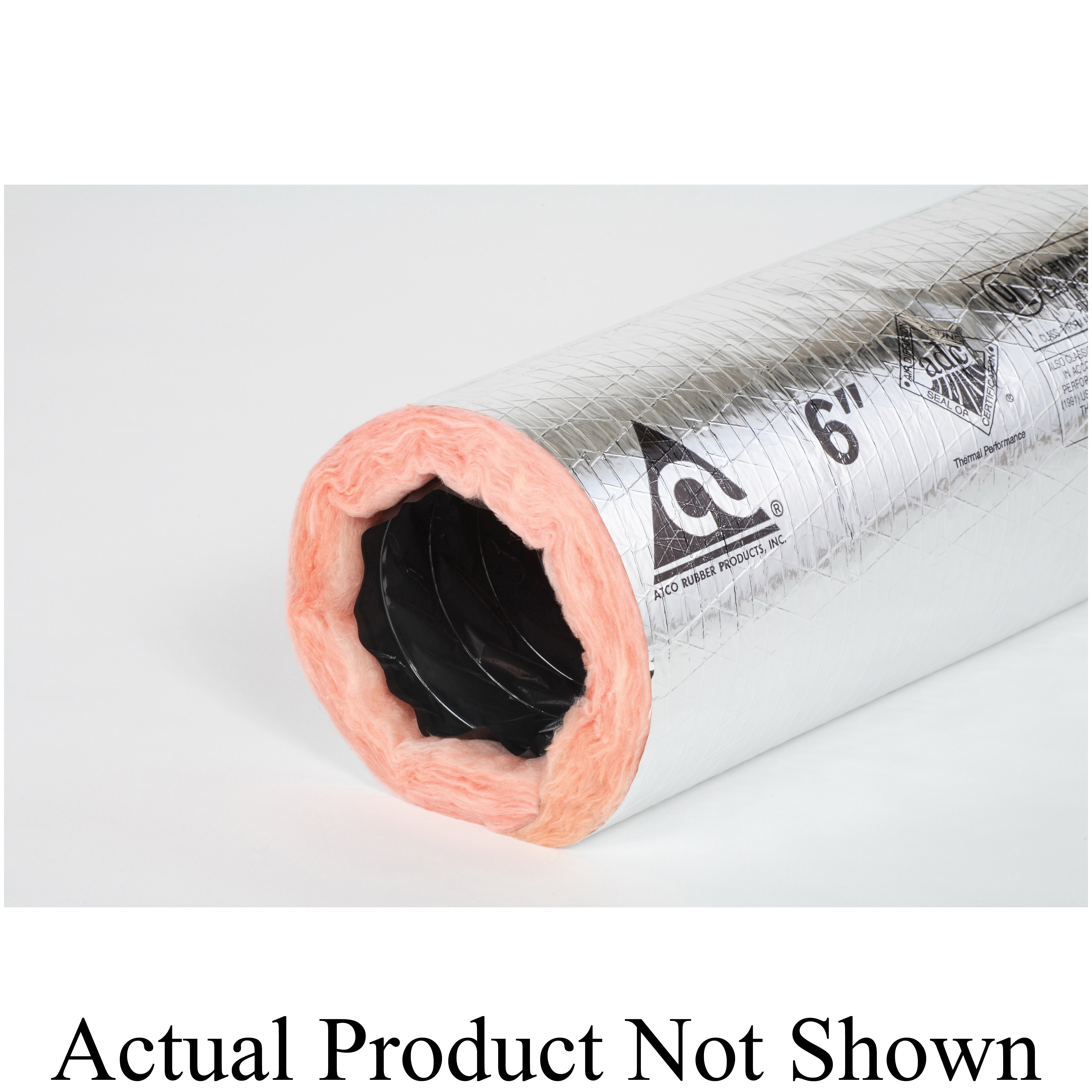

The ATCO 13602405 036BRF is a UL 181 Class 1 Air Duct, 5" x 25' R6, manufactured with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket. Its air-tight inner core is designed for low-to-medium operating pressures in HVAC systems. It features increased insulation for superior thermal performance.

• Air-tight Inner Core for energy efficiency and prevention of fiberglass erosion into the air stream.
• Encapsulated Wire Helix prevents unraveling when cut and allows for quick installation.
• Smooth Inner Core ensures low friction loss and low operating cost.

Product Highlights

This flexible duct is ideal for HVAC systems, ensuring energy efficiency and ease of installation with its durable construction and superior thermal performance.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 13602405
• Country of Origin: USA

Technical Specifications

• Weight: 10.42
• Brand: ATCO
• Compliance: UL 181, NFPA 90A & 90B, IMC, IRC, UMC 10-1 (ICC ES REPORT NO. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida),
• Composition: Metallized Polyester
• Core Material: Double ply polyester core.
• Cubic Measurement: 1.2656
• Dimensional Weight: 16
• EAN: 0671094170308
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Flex Length: 25'
• Flex Type: Insulated
• Height: 9
• Inside Diameter: 5"
• Insulated: Yes
• Jacket Material: Fiberglass Scrim Reinforced Metalized Polyester
• Length: 27
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6" W.G. Positive, 4"to 12" diameter, 4" W.G. Positive, 14" to 20" diameter, 3/4" W.G., all diameters
• Maximum Temperature: 250°F (121.11°C)
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Package Type: Bag
• Package Height: 9
• Package Length: 27
• Package Weight: 10.42
• Package Width: 9
• Pressure Rating: 6" w.g. pos., 4"-12" dia., 4" w.g. pos., 14"-20" dia., 3/4" w.g., all dia.
• Prop 65: Yes
• R-Value: R6
• Size: 5" x 25'
• UL Listed: Yes
• UOM: BG
• UPC: 671094170308
• Vapor Transmission: 0.05 Perms
• Width: 9
• Country of Origin: USA
• Material: Fiberglass, Plastic, Steel
• Diameter: 5 in
• R value: R6
• Vent Duct Shape: Round
