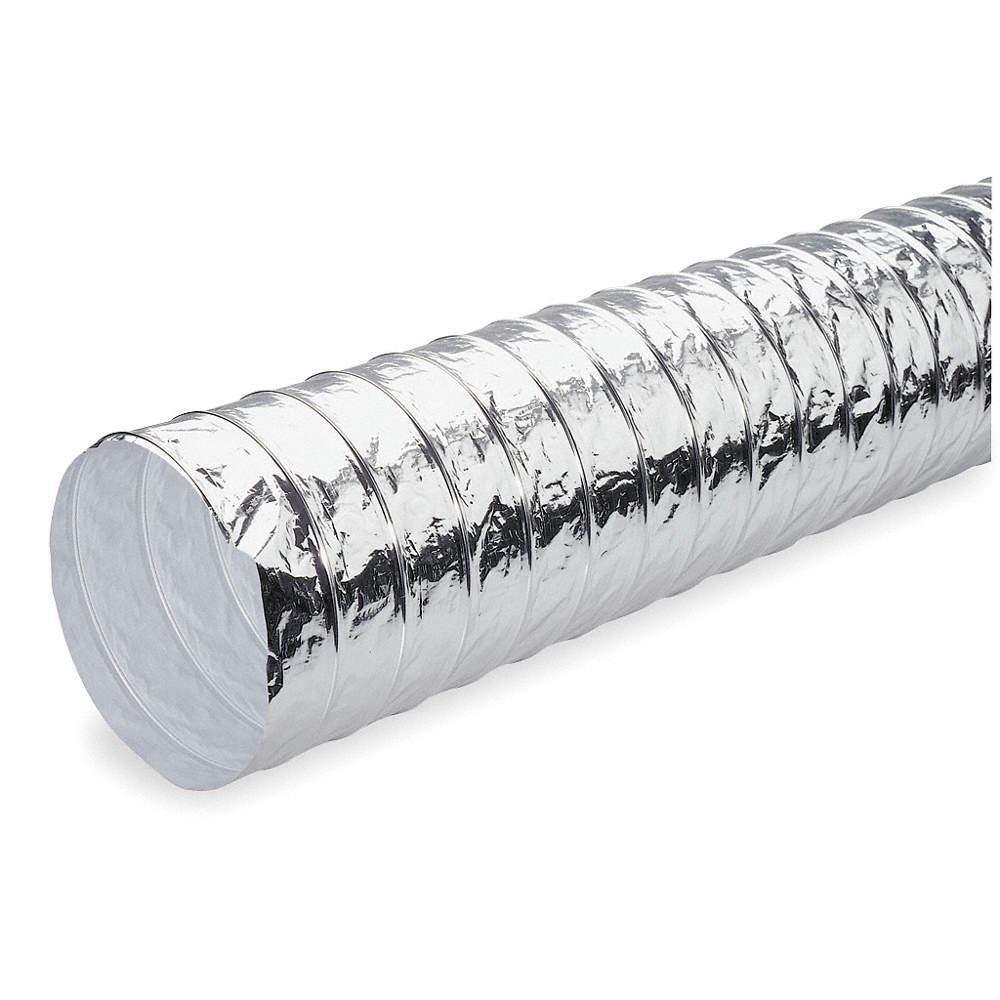

Atco 05102514 Noninsulated Flexible Duct 14 inches Dia. 25 ft L

Product Description

The ATCO 05102514 is a flexible duct with a 14" diameter and 25 ft length. Constructed from durable metallized polyester, aluminum foil, and polyester laminate, this non-insulated duct maintains its shape and is airtight. Designed for low to medium operating pressures in HVAC systems. Meets UL 181 Class 1 standards.

• Flexible and maintains shape
• Air tight construction
• Encapsulated wire helix prevents unraveling when cut

Product Highlights

This non-insulated flexible duct is ideal for heating and cooling systems, offering easy handling, quick installation, and energy efficiency.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 05102514
• Country of Origin: United States

Technical Specifications

• Item: Flexible Duct
• Inside Diameter: 14 in
• Overall Length: 25 ft
• Wall Thickness: 0.125 in
• Maximum Temperature Rating: 180 Degrees F
• Minimum Temperature Rating: -20 Degrees F
• Duct Material: Aluminum Foil
• Fire Rating: Flame Spread: 25 Max; Smoke Developed: 50 Max
• Maximum Pressure Rating: 6 in wc
• Maximum Air Speed: 5,000 fpm
• Vapor Transmission: 0.05 %
• Flexible Duct Item: Noninsulated Flexible Duct
• Flexible Duct Length: 25 ft
• Interior Surface Texture: Smooth
• Flexible Duct Inside Dia.: 14 in
• For Nominal Duct Diameter: 14 in
• Flexible Duct Wall Thickness: 1/8 in
• End Type: Plain
• Features: Flexible and Maintains Shape, Air Tight, Encapsulated Wire Helix, Smooth Inner Core, LightWeight Compact Carton, Durable Metallized Polyester,Aluminum Foil and Polyester Laminate Construction
• Material: Aluminum Foil
• Standards: UL181, NFPA 90A and 90B, IMC, IRC, UMC 10-1 (ICC ES Report No. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida), California State Fire Marshall, SBCC, BOCA
• Max. Temp.: 180F
• Flexibility: Flexible
• For Use With: Heating and Cooling Systems
• Product Type: Non-Insulated Flexible Duct
• Max. Air Flow: 5,000 fpm
• Max. Pressure: 6 in WC
• Low Temp. Deg.: -20 Degrees F
• ASTM: ASTM C518
• Material Type: Polyester
• Maximum Airflow: 5000
• UL Listed: UL 181 Class 1
• Vent Duct Shape: Round
• Flow Rate: 5000 fpm
• Pressure Rating: -3/4 to 6 in-WG
• Series: 050 Series
• Temperature Rating: -20 to 180 deg F
• Type: Non-Insulated
• Brand: Atco
• Domestic/Import: Domestic
