Atco 05102512 050 12 inches x 25 feet and 3-Ply Uninsulated Air Connector

Product Description

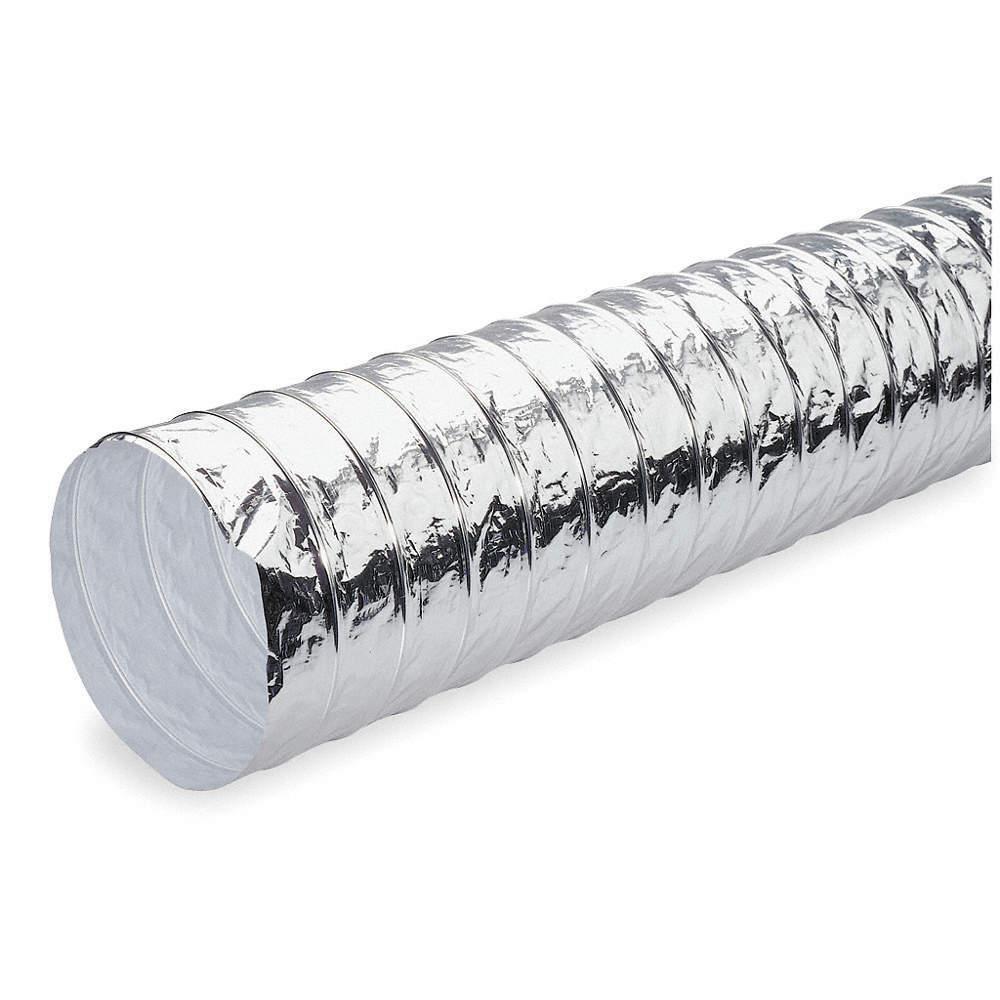

The ATCO 05102512 is a UL 181 Class 1 Air Connector that meets NFPA (90A & 90B) requirements. This air-tight uninsulated flexible duct is designed for low to medium operating pressures in HVAC systems. It features a triple lamination of metallized polyester, aluminum foil, and polyester encapsulating a steel wire helix. It has a maximum air flow of 5000 FPM.

• Durable metallized polyester, aluminum foil, and polyester laminate construction
• Flexible and maintains shape for easy handling and installation
• Air-tight construction for energy efficiency

Product Highlights

The ATCO 05102512 air connector is suitable for use as a supply, return, and exhaust duct in heating, air conditioning, and exhaust systems.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 05102512
• Country of Origin: USA

Technical Specifications

• Brand: ATCO
• Compliance: UL 181, NFPA 90A & 90B, SBCC, BOCA, Cities of Chicago, New York, County of Dade (Florida).
• Composition: Polyester/Wire Helix Core
• Fire Rating: Flame Spread: Less than 25, Smoke Developed: Less than 50
• Flex Length: 25'
• Flex Type: Uninsulated
• Inside Diameter: 12"
• Insulated: No
• Jacket Material: Polyester Film
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 10" W.G.
• Maximum Temperature: 180°F (82.22°C)
• Operating Temperature: -20°F to 180°F (-28.8°C to 82.2°C)
• Pressure Rating: 6" w.g. pos., all dia., 3/4" w.g., all dia.
• Prop 65: Yes
• Size: 12" x 25'
• UL Listed: Yes
• Wall Thickness: 0.125 in
• Material: Aluminum Foil/Polyester
