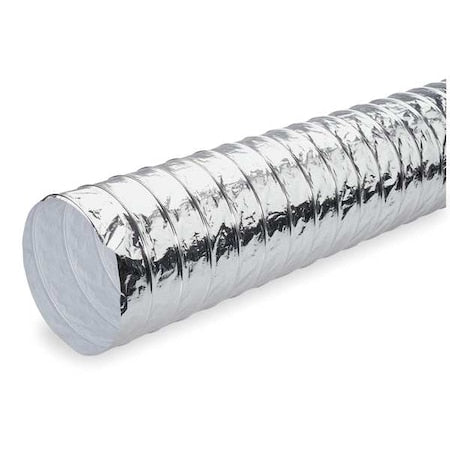

Atco 05102510 050 10 inches x 25 feet and 3-Ply Uninsulated Air Connector

Product Description

The ATCO 05102510 is a UL 181 Class 1 Air Connector that meets NFPA (90A & 90B) requirements. The UPC #050 is manufactured with a tough triple ply duct wall construction and is designed for low to medium operating pressures in HVAC systems. It is used as a supply, return, and exhaust duct in heating, air conditioning, and exhaust systems.

• Durable metallized polyester, aluminum foil, and polyester laminate construction resists tears and punctures.
• Flexible design maintains shape for easy handling and installation.
• Air-tight construction ensures energy efficiency.

Product Highlights

This uninsulated air connector features a smooth inner core, encapsulated wire helix, and lightweight compact carton for reduced handling costs.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 05102510
• Country of Origin: USA

Technical Specifications

• Brand: ATCO
• Compliance: UL 181, NFPA 90A & 90B, SBCC, BOCA, Cities of Chicago, New York, County of Dade (Florida).
• Composition: Polyester/Wire Helix Core
• EAN: 0671094149724
• Fire Rating: Flame Spread: Less than 25, Smoke Developed: Less than 50
• Flex Length: 25'
• Flex Type: Uninsulated
• Inside Diameter: 10"
• Insulated: No
• Jacket Material: Polyester Film
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 10" W.G.
• Maximum Temperature: 180°F (82.22°C)
• Operating Temperature: -20°F to 180°F (-28.8°C to 82.2°C)
• Pressure Rating: 6" w.g. pos., all dia., 3/4" w.g., all dia.
• Prop 65: Yes
• Size: 10" x 25'
• UL Listed: Yes
• UPC: 671094149724
• Country of Origin: USA
• Material: Aluminum Foil
• Flexible Duct Item: Noninsulated Flexible Duct
• Shape: Round
• End Type: Plain
• Features: Flexible and Maintains Shape, Air Tight, Encapsulated Wire Helix, Smooth Inner Core, Light Weight Compact Carton, Durable Metallized Polyester, Aluminum Foil and Polyester Laminate Construction
• Standards: UL181, NFPA 90A and 90B, Cities of Chicago, New York, County of Dade (Florida), SBCC, BOCA
• Max. Temp.: 180 Degrees F
• Flexibility: Flexible
• For Use With: Heating and Cooling Systems
• Product Type: Non-Insulated Flexible Duct
• Duct Material: Aluminum Foil
• Low Temp. Deg.: -20 Degrees F
• Overall Length: 25 ft
• Wall Thickness: 0.125 in
• Flexible Duct Length: 25 ft
• System of Measurement: Inch
• Maximum Pressure Rating: 6 in wc
• Interior Surface Texture: Smooth
• Flexible Duct Inside Dia.: 10 in
• For Nominal Duct Diameter: 10 in
• Maximum Continuous Length: 100 ft
• Maximum Temperature Rating: 180 Degrees F
• Minimum Temperature Rating: -20 Degrees F
• Flexible Duct Wall Thickness: 1/8 in
• Domestic/Import: Domestic
• Flow Rate: 5000 fpm
• Material Type: Polyester
• Series: 050 Series
• Temperature Rating: -20 to 180 deg F
• Type: Non-Insulated
• ASTM: ASTM C518
• Vent Duct Shape: Round
• Application Type: Used as a supply, return and exhaust duct in low-to-medium pressure heating, air conditioning and exhaust systems
