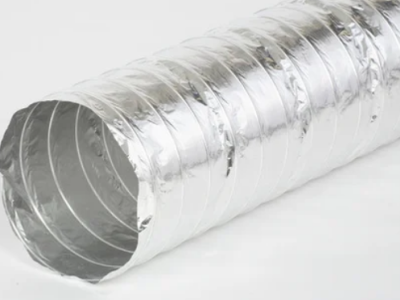

Atco 05102506 050 6 inches x 25 feet and 3-Ply Uninsulated Air Connector

Product Description

The ATCO 05102506 is a UL 181 Class 1 Air Connector that meets NFPA (90A & 90B) requirements. This 6" x 25' uninsulated air connector features a tough triple-ply duct wall construction, designed for low to medium operating pressures in HVAC systems. It is suitable for supply, return, and exhaust ducts.

• Features durable metallized polyester, aluminum foil, and polyester laminate construction for tear and puncture resistance.
• Flexible design maintains shape for easy handling and installation.
• Air-tight construction ensures energy efficiency.

Product Highlights

The ATCO 05102506 air connector is ideal for connecting ducts, mixing boxes, diffusers, and other terminal devices in air distribution systems.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 05102506
• Country of Origin: United States

Technical Specifications

• Brand: ATCO
• Compliance: UL 181, NFPA 90A & 90B, SBCC, BOCA, Cities of Chicago, New York, County of Dade (Florida).
• Composition: Polyester/Wire Helix Core
• Fire Rating: Flame Spread: Less than 25, Smoke Developed: Less than 50
• Flex Length: 25'
• Flex Type: Uninsulated
• Inside Diameter: 6"
• Insulated: No
• Jacket Material: Polyester Film
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 10" W.G.
• Maximum Temperature: 180°F (82.22°C)
• Operating Temperature: -20°F to 180°F (-28.8°C to 82.2°C)
• Pressure Rating: 6" w.g. pos., all dia., 3/4" w.g., all dia.
• Prop 65: Yes
• Size: 6" x 25'
• UL Listed: Yes
• UPC: 671094149687
• Country of Origin: USA
• Wall Thickness: 0.125 in
• Minimum Temperature Rating: -20 Degrees F
• Material: Aluminum Foil
• For Nominal Duct Diameter: 6 in
• Shape: Round
• End Type: Plain
• Flexible Duct Item: Noninsulated Flexible Duct
• Vapor Transmission: 0.05 %
• Maximum Air Speed: 5,000 fpm
• Interior Surface Texture: Smooth
• Flexible Duct Length: 25 ft
• Flexible Duct Wall Thickness: 1/8 in
• Maximum Continuous Length: 100 ft
• Maximum Pressure Rating: 6 in wc
• System of Measurement: Inch
• Domestic / Import: Domestic
• Flow Rate: 5000 fpm
• Manufacturer: Atco Rubber Products
• Manufacturer #: 05102506
• Series: 50 Series
• Type: Triple-Ply Flexible
• Diameter (inches): 6
