Product Description

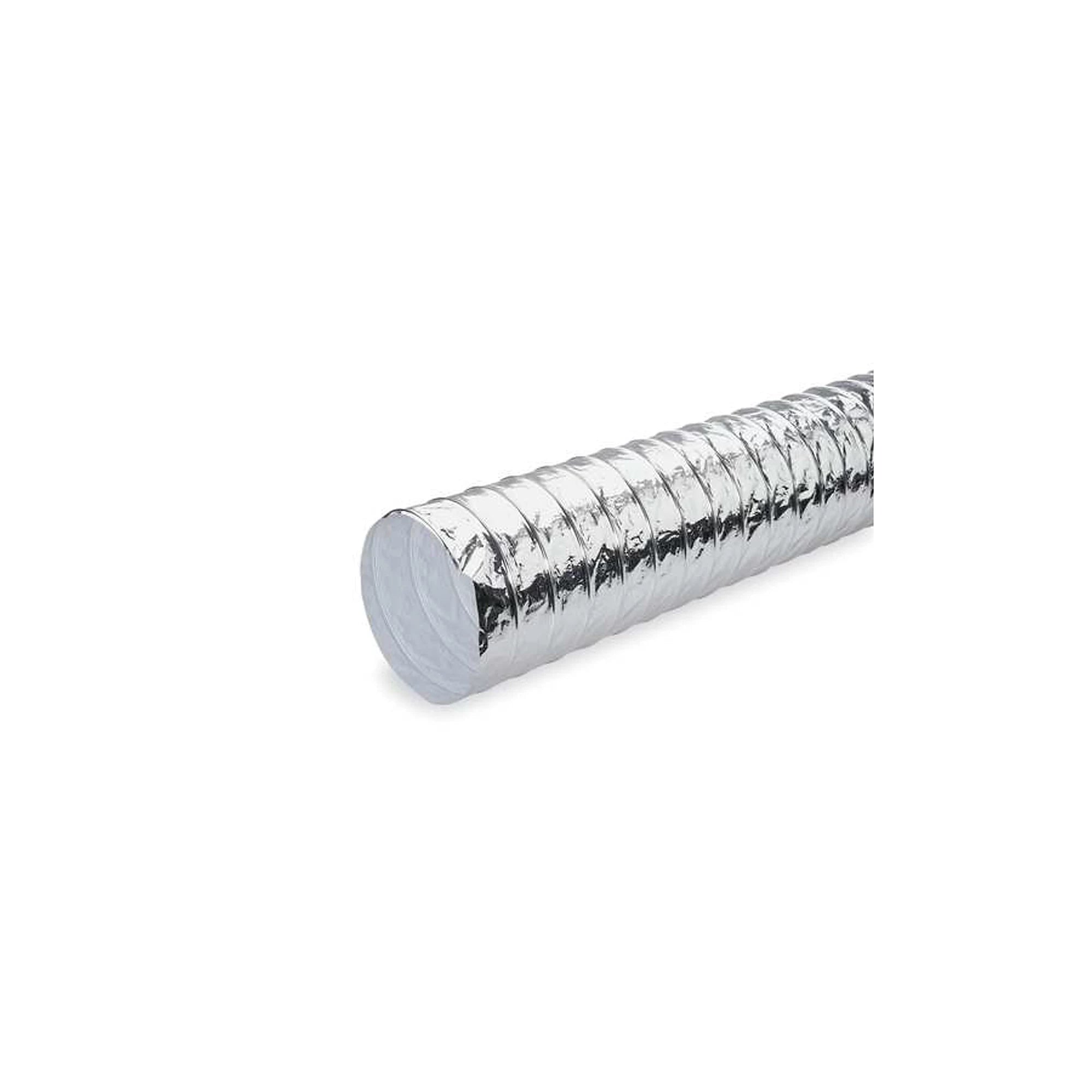

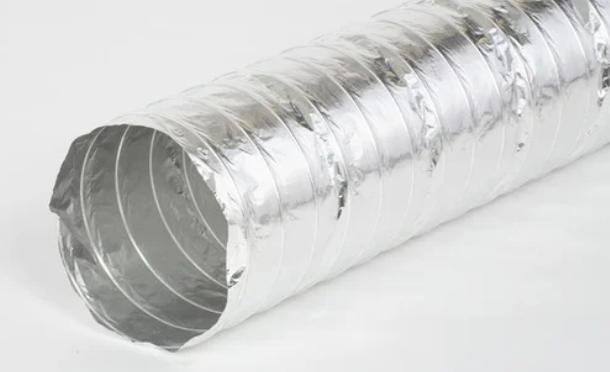

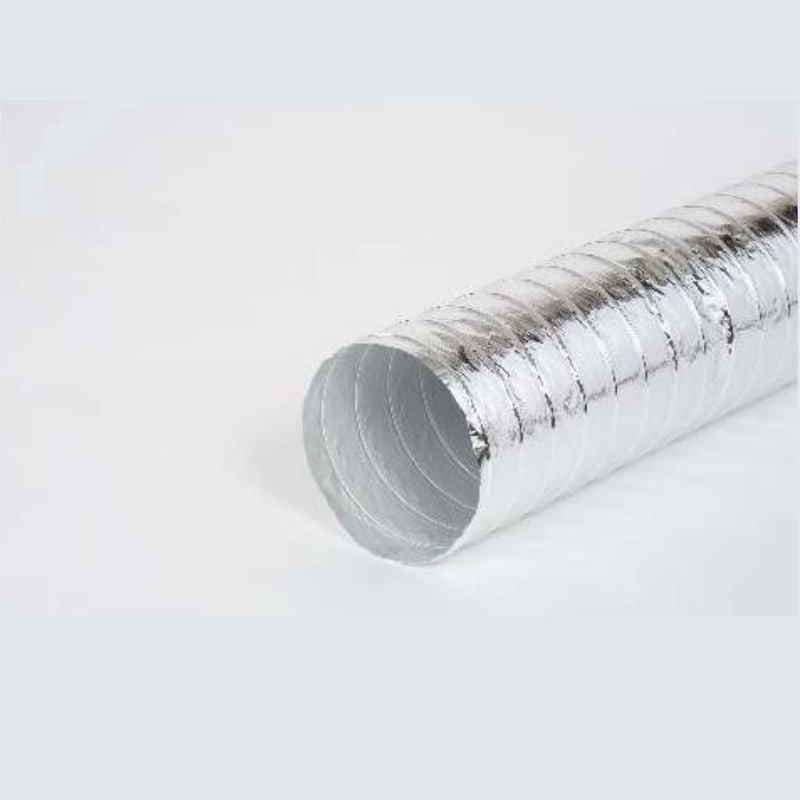

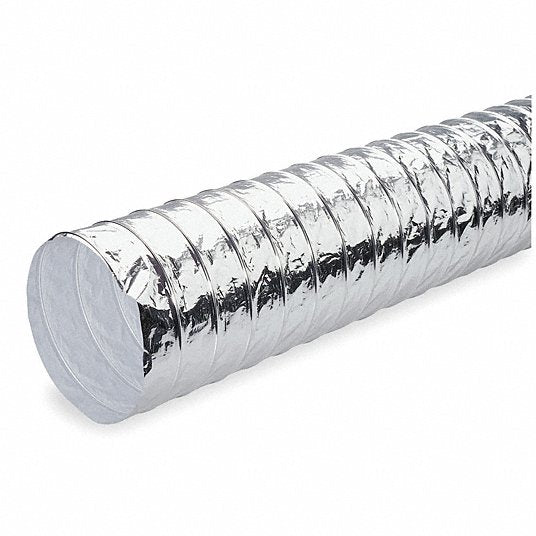

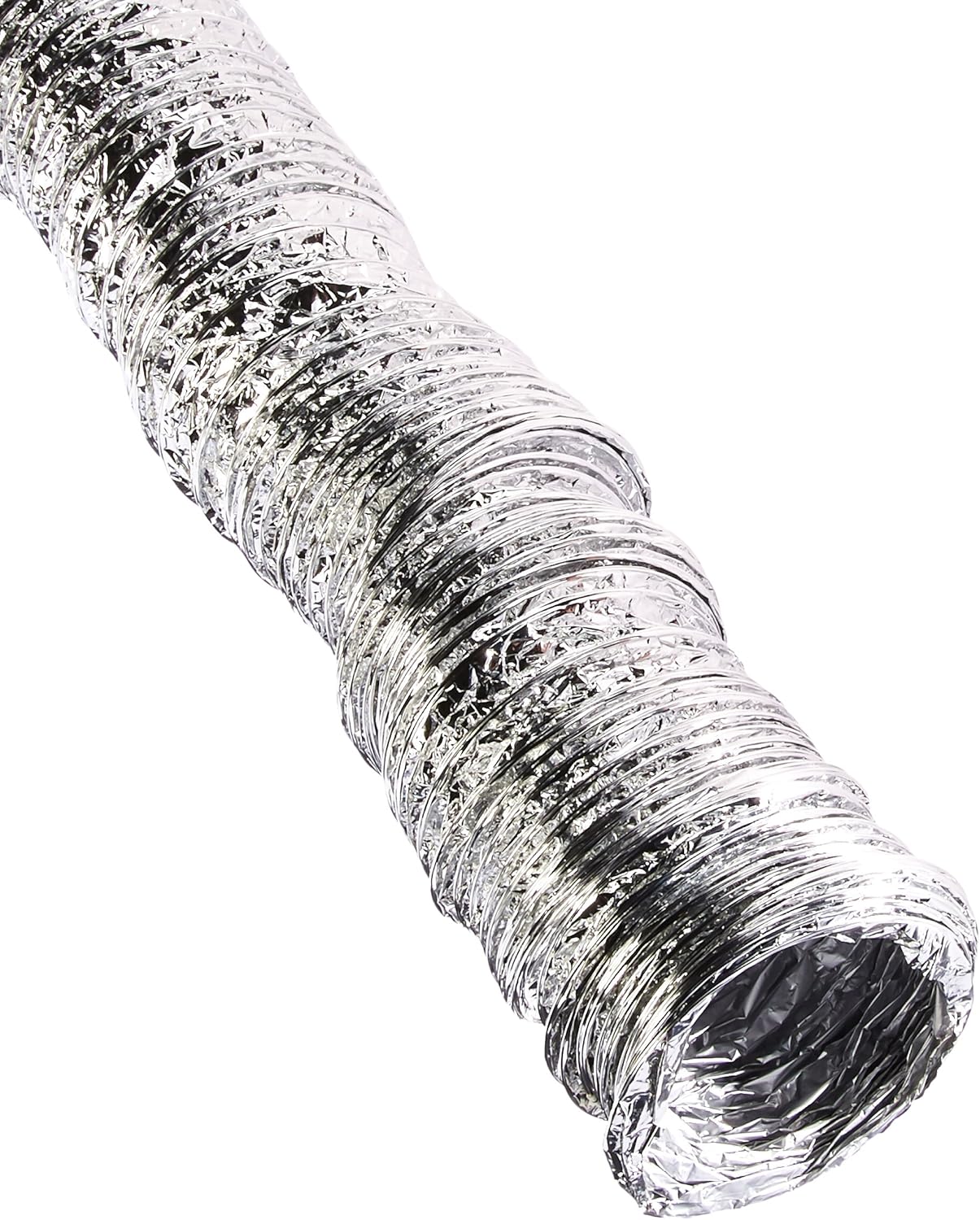

The ATCO 05102504 is a 4" x 25' non-insulated collapsible flex duct. This UL 181 Class 1 Air Connector meets the requirements of NFPA (90A & 90B). It features a tough triple ply duct wall construction and is designed for low to medium operating pressures in HVAC systems. It can be easily cut to the desired length.
- Durable metallized polyester, aluminum foil, and polyester laminate construction
- Flexible and maintains shape for easy handling and installation
- Air-tight construction for energy efficiency
Product Highlights
This uninsulated flexible duct is ideal for use in supply, return, and exhaust systems, connecting ducts, mixing boxes, and diffusers.
Product Information
Standard Information
-
Brand: ATCO
-
Manufacturer Part Number: 05102504
-
Country of Origin: USA
Technical Specifications
-
Model: UPC0504X25
-
Weight: 2.08
-
Brand: ATCO
-
Compliance: UL 181, NFPA 90A & 90B, SBCC, BOCA, Cities of Chicago, New York, County of Dade (Florida).
-
Composition: Polyester/Wire Helix Core
-
Cubic Measurement: 0.5787
-
Dimensional Weight: 7
-
EAN: 0671094149663
-
Fire Rating: Flame Spread: Less than 25, Smoke Developed: Less than 50
-
Flex Length: 25'
-
Flex Type: Uninsulated
-
Height: 10
-
Inside Diameter: 4"
-
Insulated: No
-
Jacket Material: Polyester
-
Length: 10
-
Maximum Air Flow: 5000 FPM
-
Maximum Pressure: 10" W.G.
-
Maximum Temperature: 180°F (82.22°C)
-
Operating Temperature: -20°F to 180°F (-28.8°C to 82.2°C)
-
Package Type: Box
-
Package Height: 10
-
Package Length: 10
-
Package Weight: 8.32
-
Package Width: 10
-
Pressure Rating: 6" w.g. pos., all dia., 3/4" w.g., all dia.
-
Prop 65: Yes
-
Size: 4" x 25'
-
UL Listed: Yes
-
UOM: CT
-
UPC: 671094149663
-
Width: 10
-
Country of Origin: USA
-
Overall Length: 25 ft
-
Wall Thickness: 0.125 in
-
Maximum Air Speed: 5,000 fpm
-
Vapor Transmission: 0.05 %
-
Material: Aluminum Foil
-
End Type: Plain
-
Interior Surface Texture: Smooth
-
Standards: UL181, NFPA 90A and 90B, Cities of Chicago, New York, County of Dade (Florida), SBCC, BOCA
-
Maximum Continuous Length: 100 ft
-
Diameter (inches): 4
-
Series: 50 Series
-
Material Type: Polyester
-
Maximum Airflow: 5000
-
Vent Duct Shape: Round
