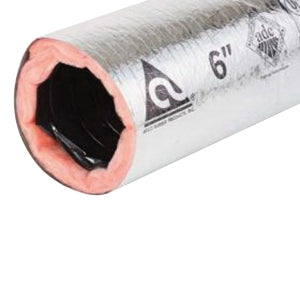

Atco 036 7 Flexible Duct 7 in x 25 ft

Product Description

The ATCO 036 7 is a UL 181, Class 1 air duct manufactured with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket. Its air-tight inner core is designed for low-to-medium operating pressures in HVAC systems and has increased insulation for superior thermal performance. It is designed for indoor use as a supply and return air duct in residential and commercial heating and air conditioning systems.

• Air-tight inner core: energy-efficient and prevents fiberglass erosion into the air stream.
• Encapsulated wire helix: prevents unraveling when cut to length for quick installation.
• Smooth inner core: ensures low friction loss and low operating cost.

Product Highlights

The ATCO 036 7 flexible duct features a reinforced polyester jacket, an encapsulated wire helix, and a smooth, air-tight inner core for efficient HVAC performance.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 036 7

Technical Specifications

• Item Name: Flexible Duct
• Model: 036
• Length: 25 ft
• Size: 7 in
• Material: Polyester
• Type: Insulated, Foil
• Flow Rate: 5000 fpm
• Pressure Rating: 6 in-WG
• R-Value: R6
• Temperature Rating: -20 to 140 deg F Continuous
• Vapor Transmission: 0.05 perm
• Material Specifications: ASTM C518
