Atco 031 9 flexible foil duct 9 inch diameter 25 feet length

Product Description

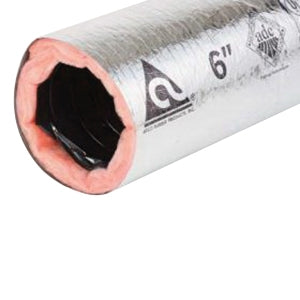

The ATCO 031 9 flexible foil duct is 25 feet in length and 9 inches in diameter. It features a metalized polyester outer jacket and a polyester core with fiberglass insulation and scrim. Designed for HVAC systems, it maintains an airtight inner core for efficient operation. It can be used as a complete air duct system and/or a branch duct connecting to mixing boxes, diffusers, light troffers, room inlets or other terminal devices.

• Airtight inner core ensures energy efficiency and prevents fiberglass erosion into the air stream.
• Encapsulated wire helix prevents unraveling when cut, facilitating quick installation.
• Reinforced metalized polyester jacket resists tears and punctures, ensuring low maintenance.

Product Highlights

This flexible foil duct provides efficient thermal performance and is suitable for various HVAC applications.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 031 9

Technical Specifications

• R-Value: R8
• Series: 30 Series
• Temperature Rating: -20 to 140 deg F
• Velocity Rating: 5000 fpm
• Length: 25 ft
• Diameter: 9 in
• Pressure Rating: 6 in-WC Positive, 1 in-WC Negative
• Material: Metalized Polyester/Polyester/Fiberglass/Scrim
