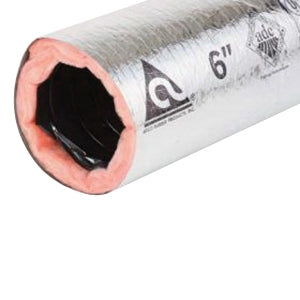

Atco 031 8 R8 Class 1, Insulated Flexible Foil Duct 25 feet Length, 8 Inch Diameter

Product Description

The ATCO 031 8 is an insulated flexible foil duct with a length of 25 feet and a diameter of 8 inches. It features a metalized polyester jacket, polyester core, fiberglass insulation, and scrim. Designed for HVAC systems, it maintains airtight integrity and ensures efficient airflow.

• Airtight inner core prevents fiberglass erosion into the air stream.
• Encapsulated wire helix prevents unraveling when cut, ensuring quick installation.
• Reinforced metalized polyester jacket is tear and puncture-resistant.

Product Highlights

This flexible duct is suitable for use as a complete air duct system or as a branch duct connecting to various terminal devices.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 031 8

Technical Specifications

• R-Value: R8
• Series: 30 Series
• Temperature Rating: -20 to 140 deg F
• Velocity Rating: 5000 fpm
• Length: 25 ft
• Diameter: 8 in
• Pressure Rating: 6 in-WC Positive, 1 in-WC Negative
• Material: Metalized Polyester/Polyester/Fiberglass/Scrim
