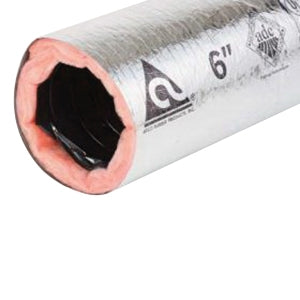

Atco 031 12 Flexible Air Duct R8 (25 ft Length, 12 in Diameter)

Product Description

The ATCO 031 12 is a UL 181, Class 1 Air Duct manufactured with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket. It features a double lamination of tough polyester encapsulating a steel wire helix, forming an air-tight inner core. Designed for low-to-medium operating pressures in HVAC systems, it offers increased insulation for superior thermal performance.

• Air-tight Inner Core ensures energy efficiency and prevents fiberglass erosion into the air stream.
• Encapsulated Wire Helix prevents unraveling when cut and allows for quick installation.
• Tough Reinforced Metallized Polyester Jacket offers tear and puncture resistance with low maintenance.

Product Highlights

This flexible air duct is ideal for HVAC systems, providing efficient and reliable air conveyance with its durable construction and certified thermal performance.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 031 12

Technical Specifications

• R-Value: R8
• Series: 30 Series
• Temperature Rating: -20 to 140 deg F
• Velocity Rating: 5000 fpm
• Length: 25 ft
• Diameter: 12 in
• Pressure Rating: 6 in-WC Positive, 1 in-WC Negative
• Material: Metalized Polyester/Polyester/Fiberglass/Scrim
• Color: Silver
