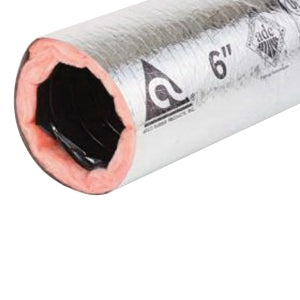

Atco 031 10 flexible foil duct 25 feet length 10 inch diameter

Product Description

The ATCO 031 10 is a Class 1 insulated flexible foil duct with a metalized polyester jacket, polyester core, fiberglass insulation, and scrim. It measures 25 feet in length and 10 inches in diameter. Designed for low to medium operating pressures in HVAC systems, it features an airtight inner core and is suitable for use as a complete air duct system or branch duct.

• Features a tri-directional fiberglass scrim reinforced, metalized polyester outer jacket.
• Airtight inner core ensures energy efficiency and prevents fiberglass erosion into the air stream.
• Suitable for use as a complete air duct system and/or a branch duct.

Product Highlights

Durable and efficient flexible air duct for HVAC systems, featuring robust construction and airtight design.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 031 10

Technical Specifications

• R-Value: R8
• Series: 30 Series
• Temperature Rating: -20 to 140 deg F
• Velocity Rating: 5000 fpm
• Length: 25 ft
• Diameter: 10 in
• Pressure Rating: 6 in-WC Positive, 1 in-WC Negative
• Material: Metalized Polyester/Polyester/Fiberglass/Scrim
