Atco 010-R6_7X5FT R6 Pipe Insulation Sleeve 7in X 5ft

Product Description

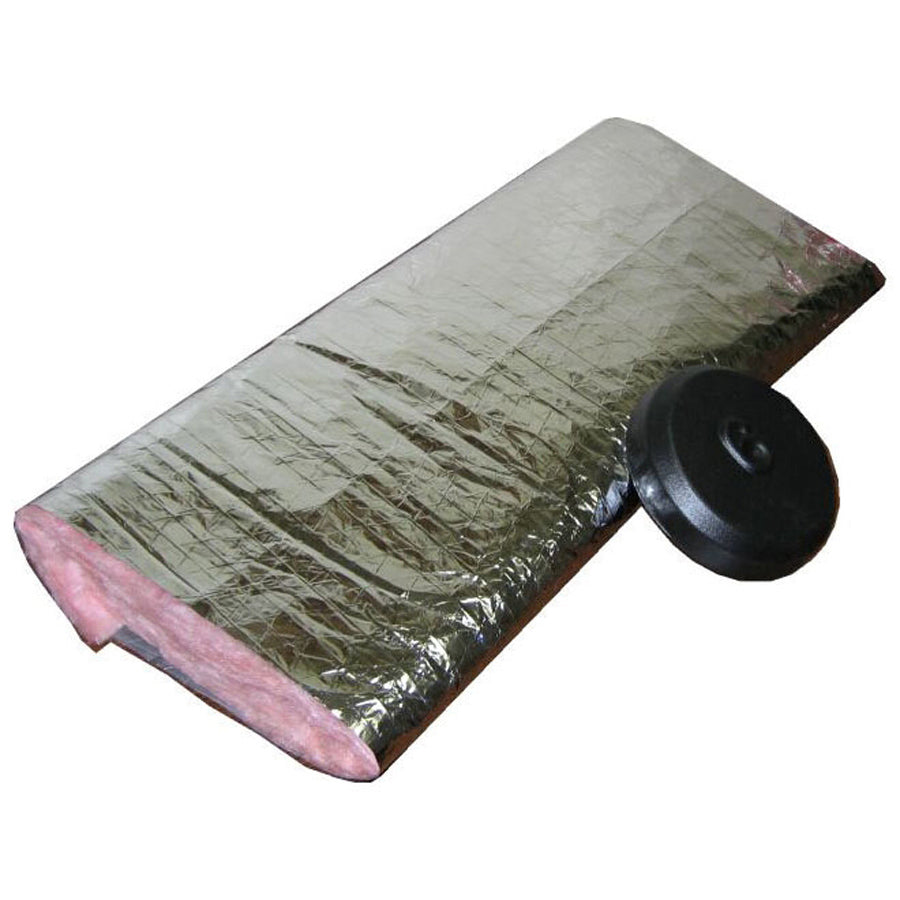

The ATCO RUBBER PRODUCTS 010-R6_7X5FT is an R-6 fiberglass pipe insulation sleeve designed for indoor HVAC applications. The sleeve consists of a thick fiberglass insulation blanket wrapped in a reinforced metalized polyester vapor barrier jacket. It ships in flat, 5-foot sections, which eliminates the need to cut to length in the shop or on the jobsite. The temperature rating spans from -20 degrees F to 250 degrees F, making it suitable for both supply and return piping in typical residential and light commercial HVAC systems. A starter cap is included. Licensed HVAC technicians and mechanical insulation contractors are the primary installers.

This sleeve is intended for indoor HVAC pipe insulation where a vapor barrier jacket is required to limit condensation and heat transfer. The flat configuration simplifies handling and storage on the jobsite. The 5-foot section length reduces labor time compared to cutting duct wrap on site, and the reinforced metalized polyester jacket provides a durable, vapor-retarding outer surface. It is appropriate for use in residential and commercial indoor mechanical systems where UL 181B-compliant insulation materials are specified.

Key Features

• R-6 thermal resistance rating for effective pipe insulation
• Fiberglass insulation blanket construction
• Reinforced metalized polyester vapor barrier jacket
• Flat, 5-foot sections reduce jobsite cutting and labor
• Starter cap included
• UL 181B listed for indoor HVAC applications
• Temperature range: -20 degrees F to 250 degrees F

Compatibility

Designed for use on 7-inch indoor HVAC pipe in residential and commercial mechanical systems where UL 181B-compliant pipe insulation is required.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical insulation contractor in accordance with local mechanical codes and manufacturer instructions. Shut down and de-energize the HVAC system before beginning any pipe insulation work. Secure sleeve seams and butt joints with foil tape or approved fasteners per UL 181B requirements. Do not compress the fiberglass insulation blanket, as compression reduces the effective R-value.

Technical Specifications

• Pipe Size: 7 inches
• Section Length: 5 feet
• Thermal Resistance: R-6
• Insulation Material: Fiberglass blanket
• Jacket Material: Reinforced metalized polyester vapor barrier
• Type: Flat blanket sleeve
• Maximum Temperature Rating: 250 degrees F
• Minimum Temperature Rating: -20 degrees F
• Application: Indoor HVAC system
• Inclusions: Starter cap
• Applicable Standard: UL 181B

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R6_7X5FT
