Atco 010-R6_16X5FT R6 Pipe Insulation Sleeve 16 Inch 5 Foot

Product Description

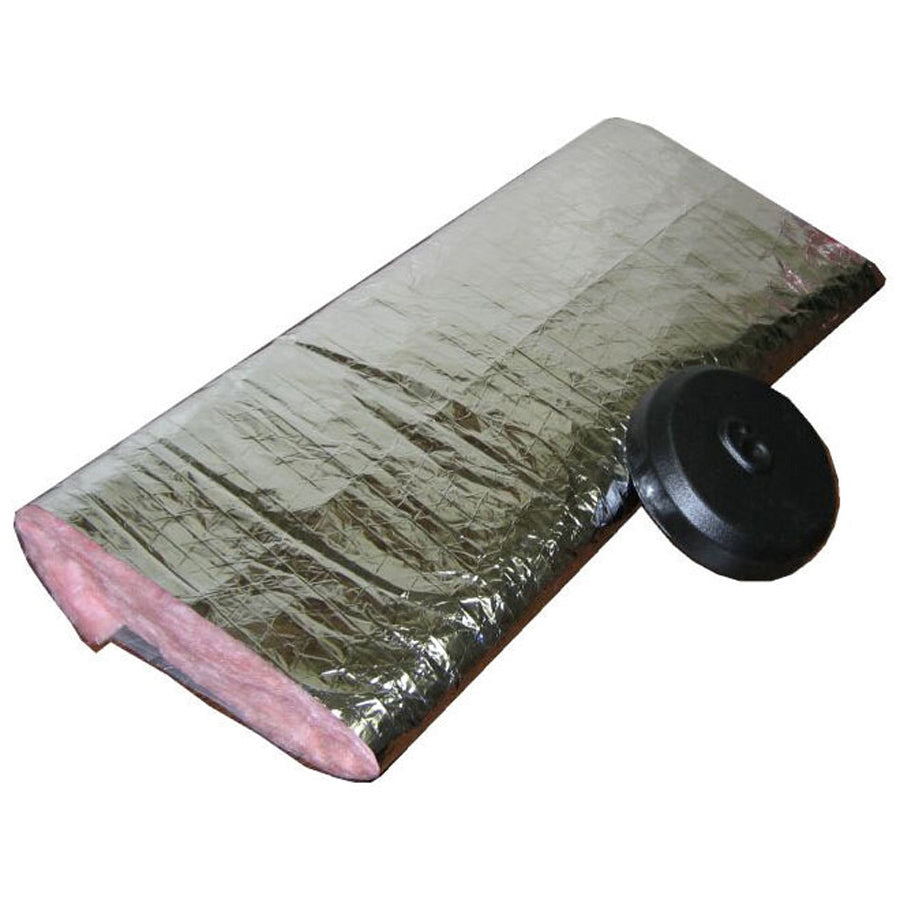

The ATCO RUBBER PRODUCTS 010-R6_16X5FT is a fiberglass pipe insulation sleeve designed for indoor HVAC system applications. It provides R6 thermal insulation performance using a thick fiberglass blanket core wrapped in a reinforced metalized polyester vapor barrier jacket. The flat, blanket-style construction ships in 5-foot sections, eliminating field cutting on the jobsite or in the shop. Rated for temperatures from -20 degrees F to 250 degrees F, this sleeve meets UL 181B standards. HVAC technicians and mechanical insulation contractors install this product on large-diameter pipe runs where consistent thermal and vapor control is required.

This insulation sleeve is designed for indoor HVAC system installations where 16-inch pipe insulation is required. The 5-foot section length simplifies staging and reduces labor compared to field-cut duct wrap applications. A starter cap is included to assist with proper end termination. The reinforced metalized polyester vapor barrier jacket controls moisture migration, making it suitable for both supply and return piping in conditioned spaces. Installers working on commercial mechanical rooms or large residential systems will find the pre-sized sections reduce handling time significantly.

Key Features

• R6 fiberglass insulation blanket core for effective thermal efficiency on large-diameter pipe
• Reinforced metalized polyester vapor barrier jacket controls moisture and condensation
• 5-foot pre-cut sections reduce jobsite and in-shop cutting labor
• Starter cap included for clean end termination
• Flat blanket construction allows straightforward wrap-and-secure installation
• Meets UL 181B applicable standard for HVAC duct and pipe insulation systems

Compatibility

Designed for use on 16-inch indoor HVAC system piping. Suitable as an OEM-style insulation solution for large-diameter pipe runs in residential and commercial mechanical systems where R6 thermal performance and vapor barrier protection are specified.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed mechanical insulation contractor. Shut down and isolate the pipe system before beginning insulation work and ensure the pipe surface is clean and dry. Secure the sleeve per the applicable mechanical code requirements, referencing SMACNA or local HVAC insulation standards as required. Do not compress the fiberglass blanket core during installation, as compression reduces the effective R-value.

Technical Specifications

• Insulation Type: Fiberglass Blanket
• Jacket Material: Reinforced Metalized Polyester
• R-Value: R6
• Pipe Size: 16 inches
• Section Length: 5 feet
• Construction Type: Flat Blanket
• Maximum Temperature Rating: 250 degrees F
• Minimum Temperature Rating: -20 degrees F
• Application: Indoor HVAC System
• Applicable Standard: UL 181B
• Inclusions: Starter Cap

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 010-R6_16X5FT
